Mini Smart Digital Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance Continuity Diode Electronic component Test Meter

Product Features

This mini smart digital tweezer LCR SMD ESR tester offers adjustable frequency from 100Hz-10KHz and an adjustable highest accuracy of 0.5%, ensuring precise measurements.

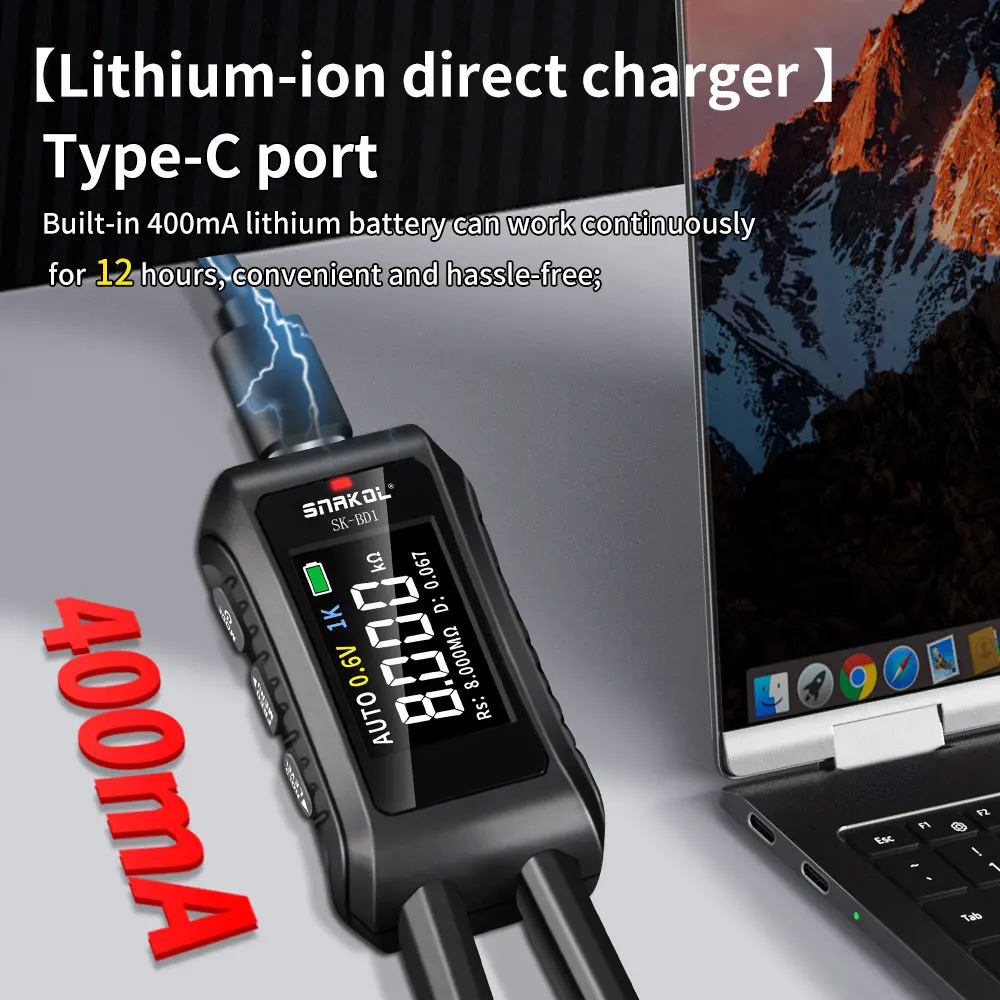

With a rechargeable 400mA lithium battery, this tester provides long-lasting power. The OLED display screen shows clear and accurate readings.
It can measure resistance, capacitance, inductance, continuity, and diodes, with a measuring resistance range of 10mΩ-10MΩ.
The auto power off feature helps save battery life, and the sampling rate of 1 time/second ensures real-time data collection.
This tester is suitable for DIY electrical projects and comes with a compact design of 146*30*18mm, making it easy to carry and use.

Specifications

Frequency

100Hz-10KHz adjustable

Adjustable highest accuracy

0.5%

Diode measurement

Yes

power supply

rechargeable 400mA lithium battery

0.3V, 0.6Vrms RMS test level

Yes

pisplay screen

OLED

Sampling Rate

1 Times/second

Auto Power off

Yes

Parameters

L C R D Q RS

DC Voltage

None

Brand Name

cretrust

Model Number

SK-DB1

Display Type

Digital display

Hign-concerned Chemical

None

Measuring Resistance Range

10mΩ-10MΩ

Measuring Capacitance Range

1pF-20mF(Dvalue,ESR)

Measuring Inductance Range

1uH-60H(Q value,EsR)

DIY Supplies

ELECTRICAL

Dimensions

146*30*18mm

Operating Temperature

0 - 50 ℃

AC Voltage

none

Operating Mode

Auto range

semi_Choice

yes

Description

Mini Smart Digital Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance Continuity Diode Electronic component Test Meter
