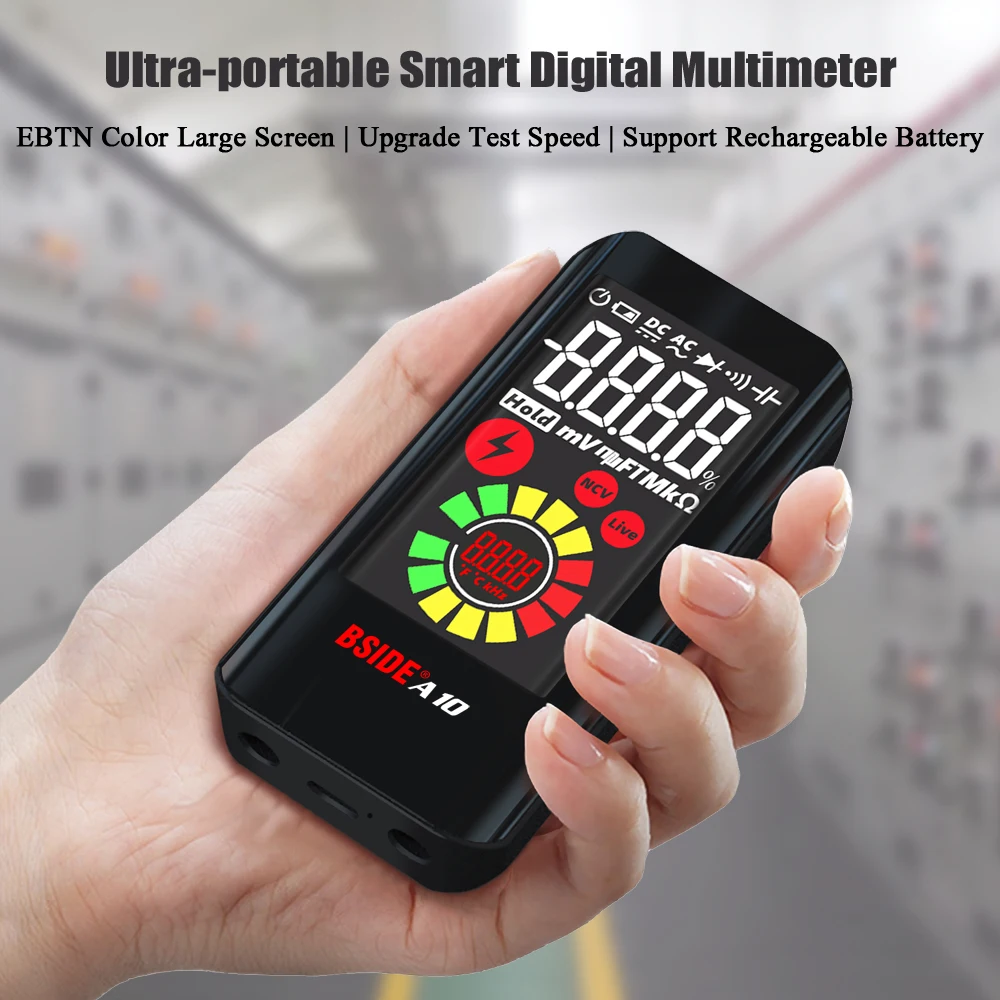

BSIDE A10 Digital Multimeter Portable True RMS EBTN Color Display DC AC Voltage Capacitance Ohm Diode NCV Hz Live wire Tester

Product Features

This BSIDE A10 digital multimeter features a true RMS EBTN color display, allowing for accurate measurement of DC and AC voltage, capacitance, and more.
With an auto-range operating mode, it is easy to use, and the measuring resistance range from 0.1-10M ensures precise results.
It has functions like diode testing, non-contact voltage detection, and continuity testing, making it a versatile tool for electrical DIY.
The 3.2-inch color screen with a max display of 9999 counts provides clear and easy-to-read information.
Powered by a rechargeable 3.7V battery, it is portable and suitable for various electrical measurement tasks.

Specifications

Brand Name

BSIDE

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

AC Voltage

0V-600V

Display Type

Digital display

DC Voltage

0V-600V

AC Current

digital multimeter

Measuring Resistance Range

0.1-10M +-(1.2%+3)

DC Current

mini multimeter

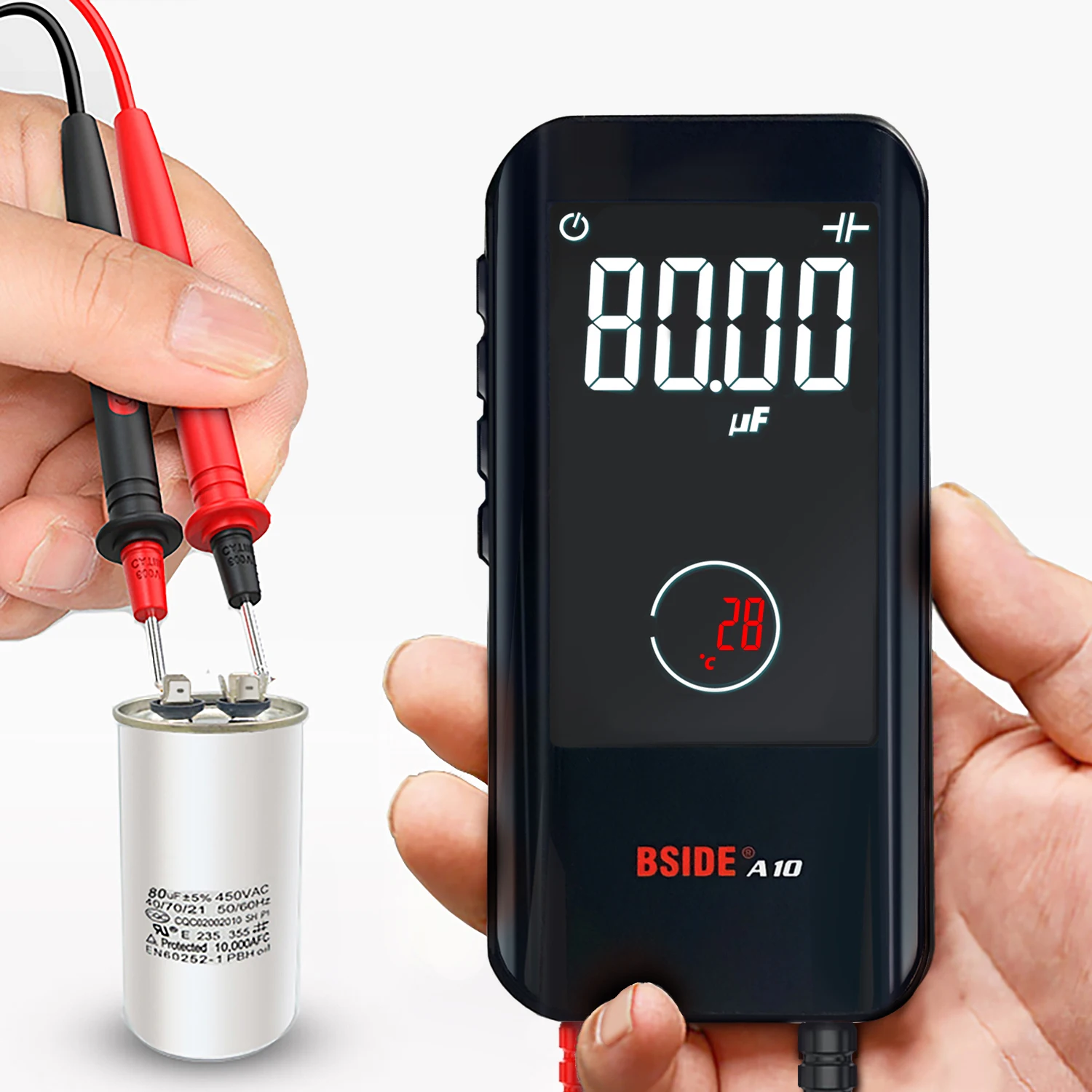

Measuring Capacitance Range

1nF-1.00mF

Operating Mode

auto range

Model Number

A10

Is Smart Device

Measuring Inductance Range

multimeter

Dimensions

11.3*5.4*2.2

Operating Temperature

0 - 40 ℃

Frequency

10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz

Duty Cycle

0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%

Diode

Auto identify diode if less than 3.0V

V-Alert(non-contact voltage detection)

alarm beep sounds, LCD screen

display stripeLive Check

alarm beep sounds, LCD screen display stripe

Continuity

If the resistance is less than 50Ω, the beeper sounds

Power

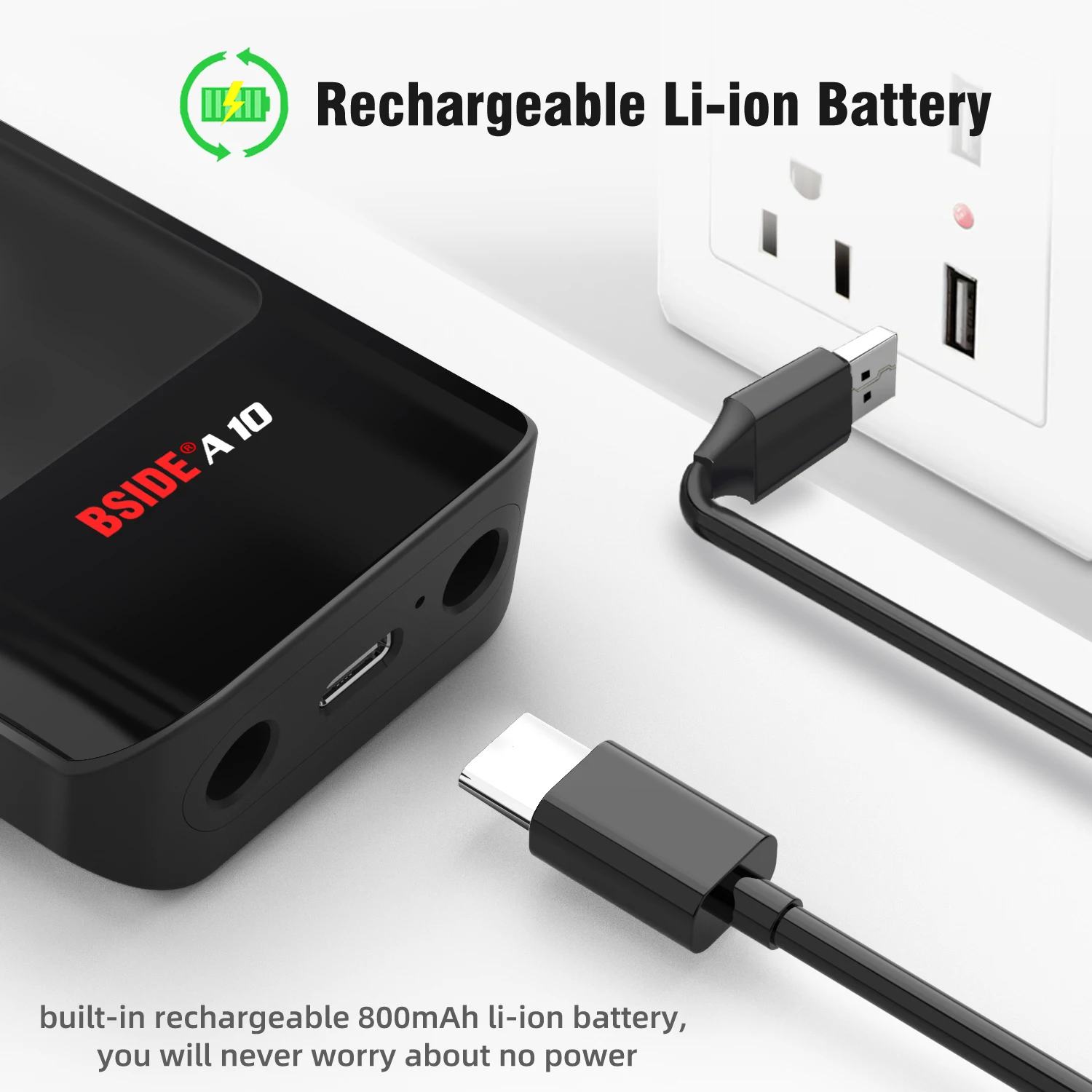

Rechargeable 3.7 V * 1 battery (built-in)

Screen

3.2 inch

Max Display

9999 counts

Color

black

semi_Choice

yes

Description

BSIDE A10 Digital Multimeter Portable True RMS EBTN Color Display DC AC Voltage Capacitance Ohm Diode NCV Hz Live wire Tester
