UNI-T UT89XD UT89X True RMS Multimeter Digital Electrical Tester

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $103.64 ~ 185.97
Price includes 10% AU GST

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features

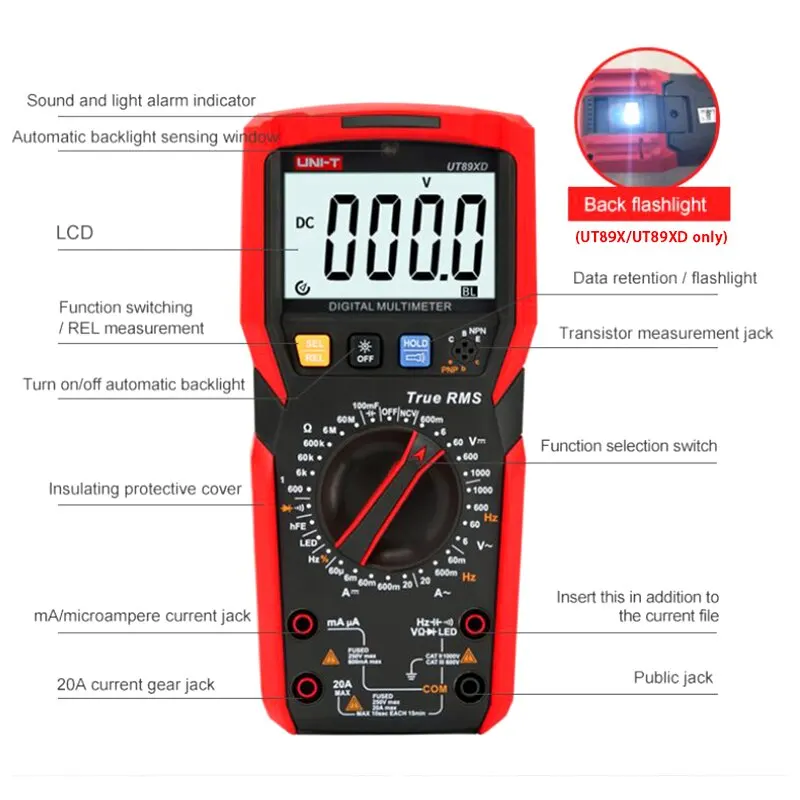

  • The UNI-T UT89XD/UT89X true RMS multimeter, with auto-range operating mode and a digital display, is certified with RoHS and suitable for electrical testing in various DIY projects.
  • It offers a wide range of measuring capabilities, including DC and AC voltage, current, resistance, frequency, and more, with a display count of 6000.

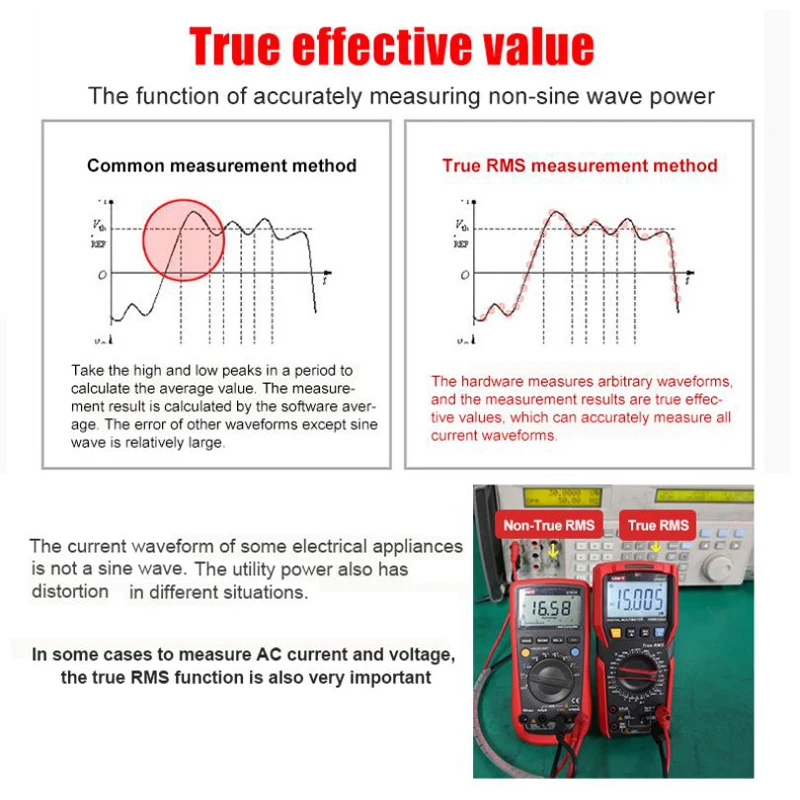

  • The multimeter, with a sampling rate of 3 times/s and true RMS function, provides accurate and reliable measurements, ensuring the safety and efficiency of your electrical work.
  • It comes with features such as live wire test, diode/continuity test, transistor hFE test, and dual-range NCV test, making it a versatile tool for electrical testing.
  • With auto power off, low battery indication, data hold, and flashlight functions, this multimeter is user-friendly and convenient to use in different operating environments.

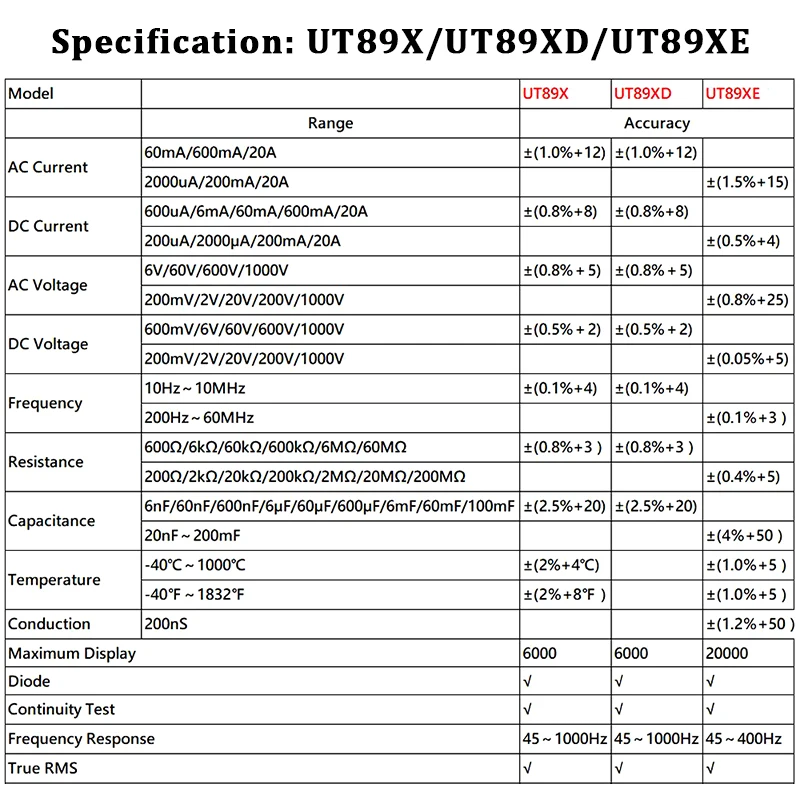

Specifications
Brand Name
UNI-T
UNI-T Model
UT89X/XD/XE
DC Voltage
/
Operating Mode
Auto range
Hign-concerned Chemical
None
DIY Supplies
ELECTRICAL
AC Voltage
/
Display Type
Digital display
Model Number
UT89XE UT89X/XD
Is Smart Device
No
Measuring Inductance Range
N/A
Dimensions
189mm*89mm*53mm
Operating Temperature
0 - 50 ℃
Display count:
6000
Frequency (Hz):
9.999Hz/9.999MHz
Duty cycle:
0.1%~99.9%
Sampling rate:
3 times/s
True RMS:
Yes
Live wire test:
Yes
Diode/Continuity test:
Yes
Transistor hFE:
Yes
Dual range NCV test:
Yes
Auto power off:
Yes
Low battery indication:
Yes
Data hold:
Yes
Flashlight:
Yes

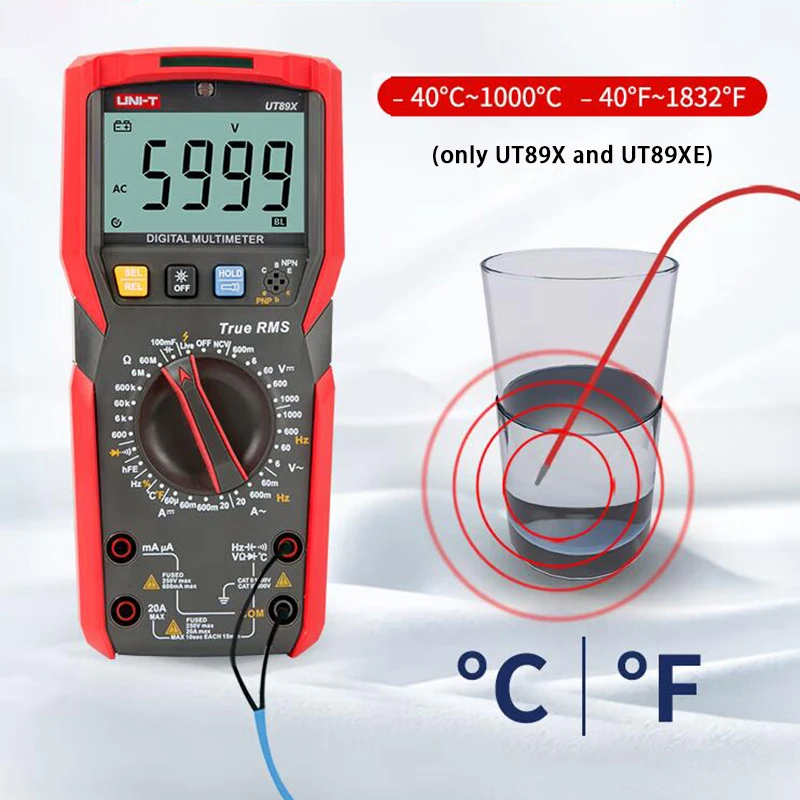

Temperature
-40℃~1000℃/-40℉~1832℉
UT89X/UT89XD Measuring Resistance Range
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
UT89X/UT89XD DC Current
600uA/6mA/60mA/600mA/20A
UT89X/UT89XD AC Voltage
6V/60V/600V/1000V
UT89X/UT89XD AC Current
60mA/600mA/20A
UT89X/UT89XD DC Voltage
600mV/6V/60V/600V/1000V
UT89X/UT89XD Frequency
10Hz/10MHz
UT89XE Measuring Resistance Range
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
UT89XE DC Current
2000μA/200mA/20A
UT89XE AC Current
2000μA/200mA/20A
UT89XE AC Voltage
200mV/2V/20V/200V/1000V
UT89XE DC Voltage
200mV/2V/20V/200V/1000V
UT89XE Frequency
200Hz/60MHz
