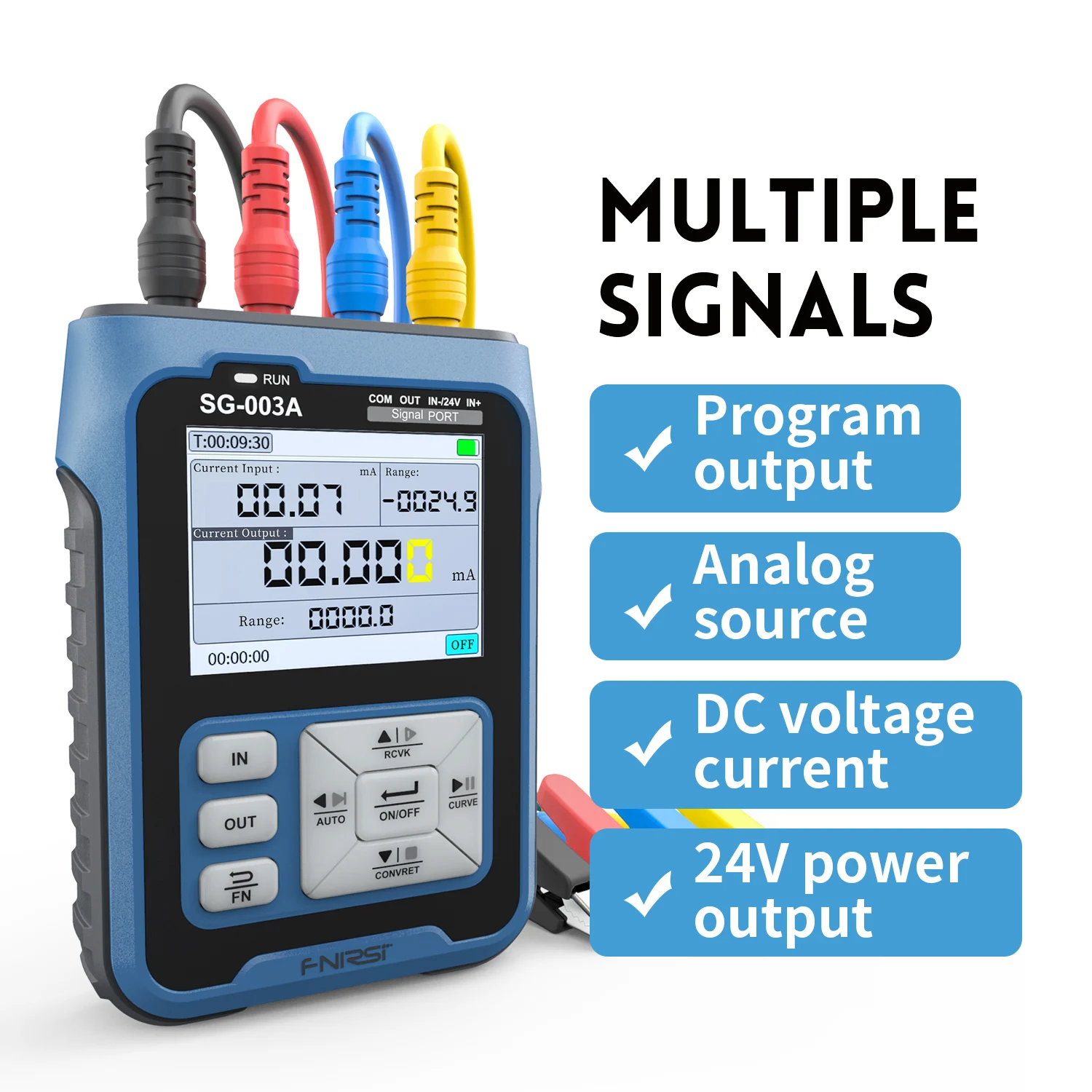

SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Gerador de sinal Sources transmitter calibrator Transmitte signal generator current voltage simulator

Product Features

This adjustable current voltage simulator offers a wide active current output range of 0-24mA with a high resolution of 0.01 mA, perfect for precise calibration and signal generation.

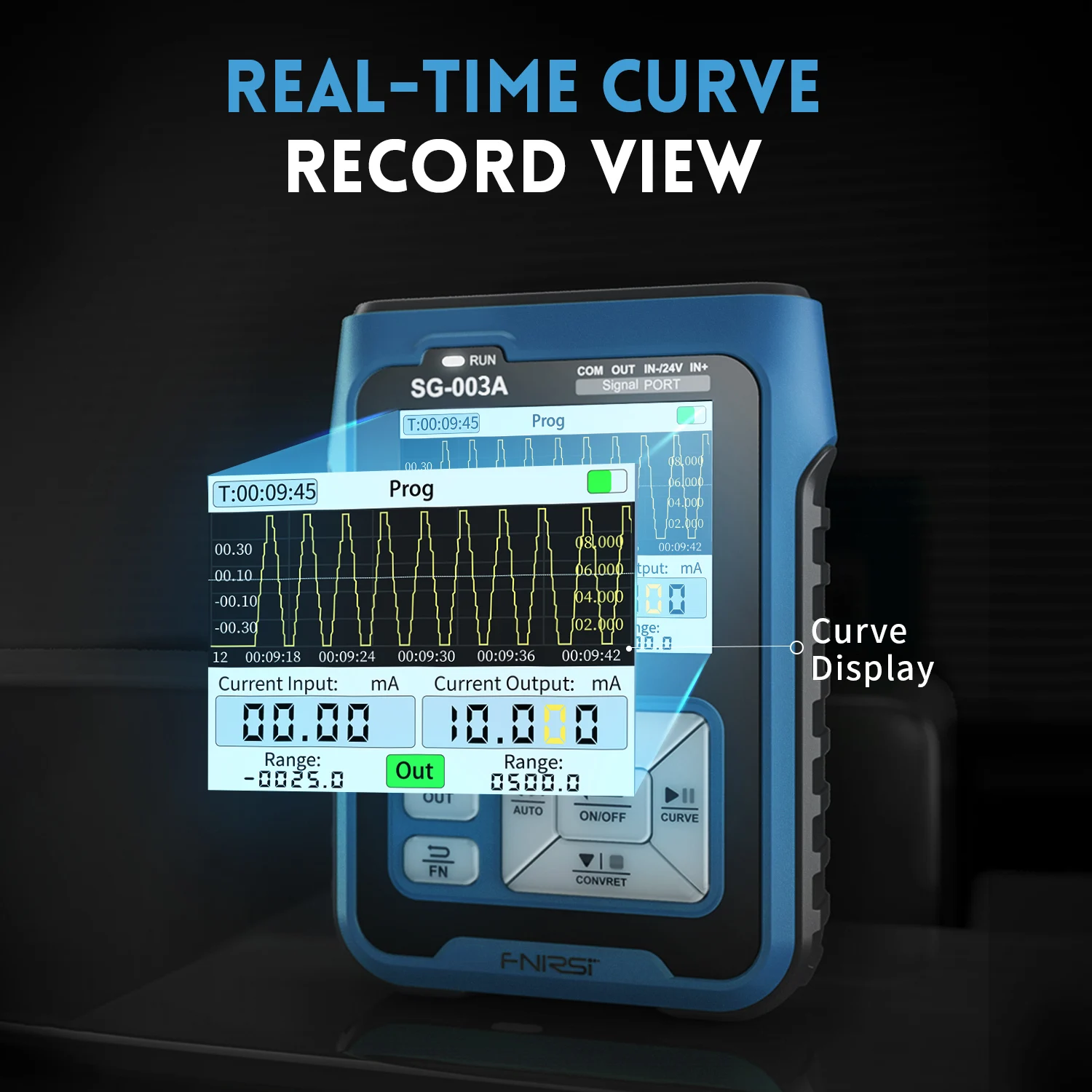

Featuring a 2.0-inch display, it provides clear and convenient readings, making it easy to monitor and operate in various electrical DIY projects.
With a CE certification, this simulator ensures high-quality and safety standards, suitable for use in professional and home electrical environments.
It comes with a 3000mAh battery, allowing for portable use within an operating environment of 0 °C-50 °C, providing flexibility in different conditions.
The simulator has multiple measurement functions with high precision, such as current input measurement with a precision of ±(0.1% + 0.05) and voltage input measurement precision of ±(0.1% + 0.05), ensuring accurate results.

Specifications

Brand Name

FNIRSI

Hign-concerned Chemical

None

DIY Supplies

Electrical

Battery Included

Yes

Display Size

2.9 Inches & Under

Model Number

SG-003A

Display size

2.0 Inches

Active current output range

0~24mA

Active current output resolution

0.01 mA

Active current output maximum load

750Ω

Active current output Precision

±(0.1%+0.005)

Passive current output range

0-24 mA

Passive current output resolution

0.01 mA

Voltage output maximum current

30mA

Current input measurement

input impedance 100Ω

Current input measurement Precision

±(0.1%+0.05)

Voltage input measurement range

0-30 V

Voltage input measurement resolution

0.01V

Voltage input impedance

2MΩ

Voltage input measurement Precision

±(0.1%+0.05)

PWM output (frequency) Range

0-9999Hz

3000mAh

Operating environment

0 °C - 50 °C.

Size

112mm*82mm*27mm

Description

SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Gerador de sinal Sources transmitter calibrator Transmitte signal generator current voltage simulator
