Digital Multimeter Oscilloscope Transistor Tester Signal Generator FNIRSI DSO TC3 3 in 1 Multifunction Electronic Component Tester

Product Features

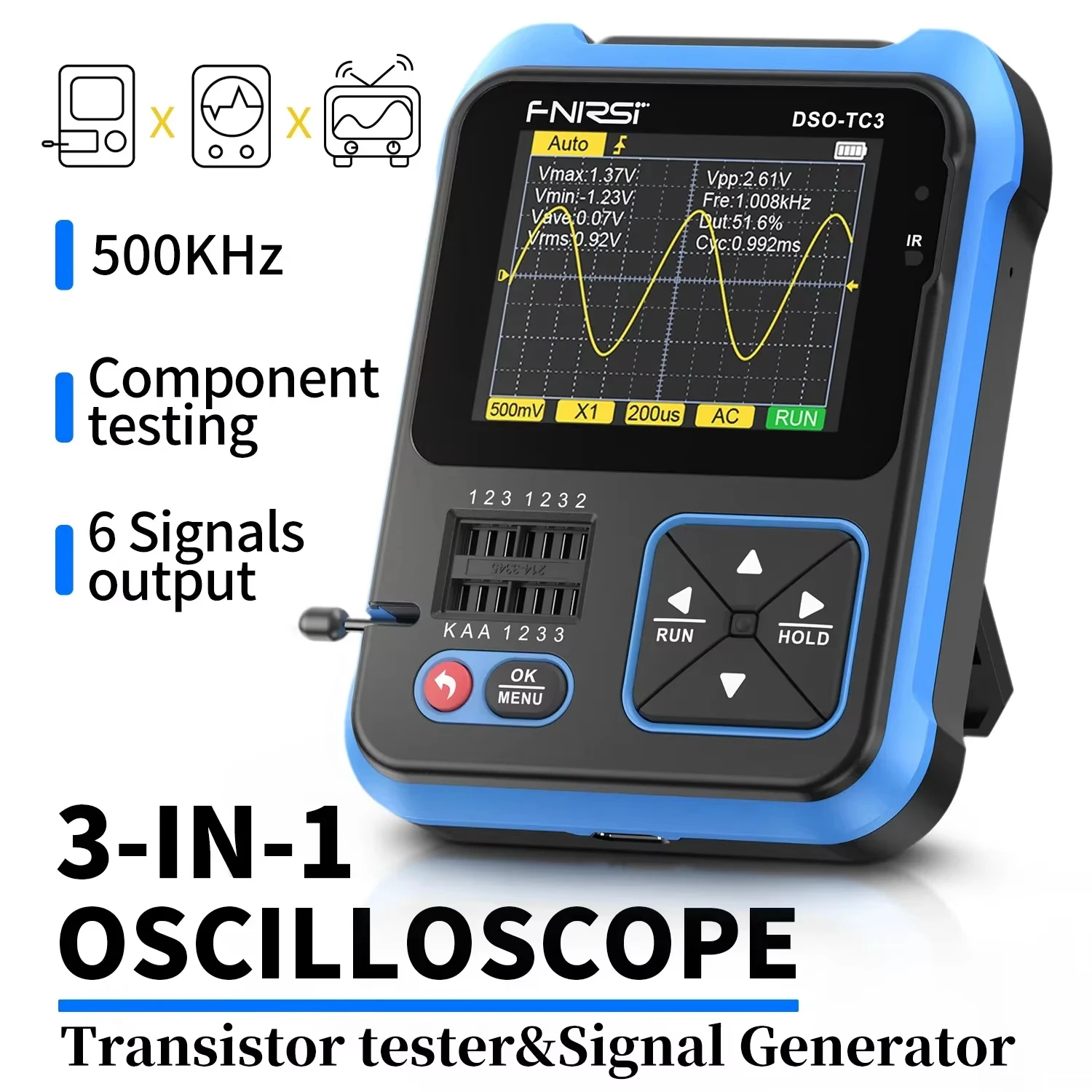

This digital multimeter oscilloscope transistor tester signal generator FNIRSI DSO TC3 is a 3-in-1 multifunction electronic component tester. It has a 2.4-inch TFT color screen for clear display.

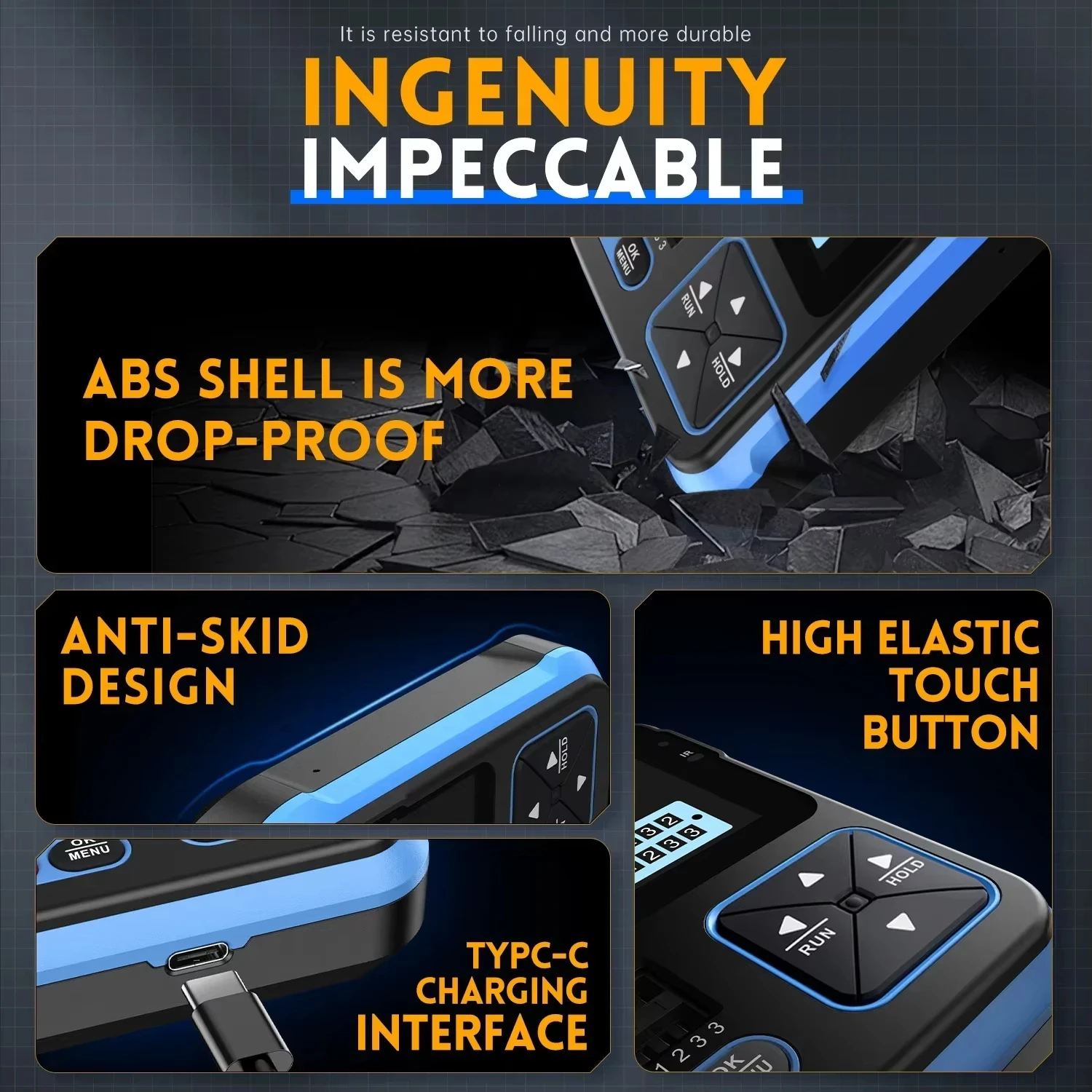

Powered by a rechargeable lithium battery with Type-C 5V charging specifications, it offers portability and convenience for testing electronic components.
With a real-time sample rate of 10MSa/s and an analog bandwidth of 500Khz, it provides accurate and reliable test results.

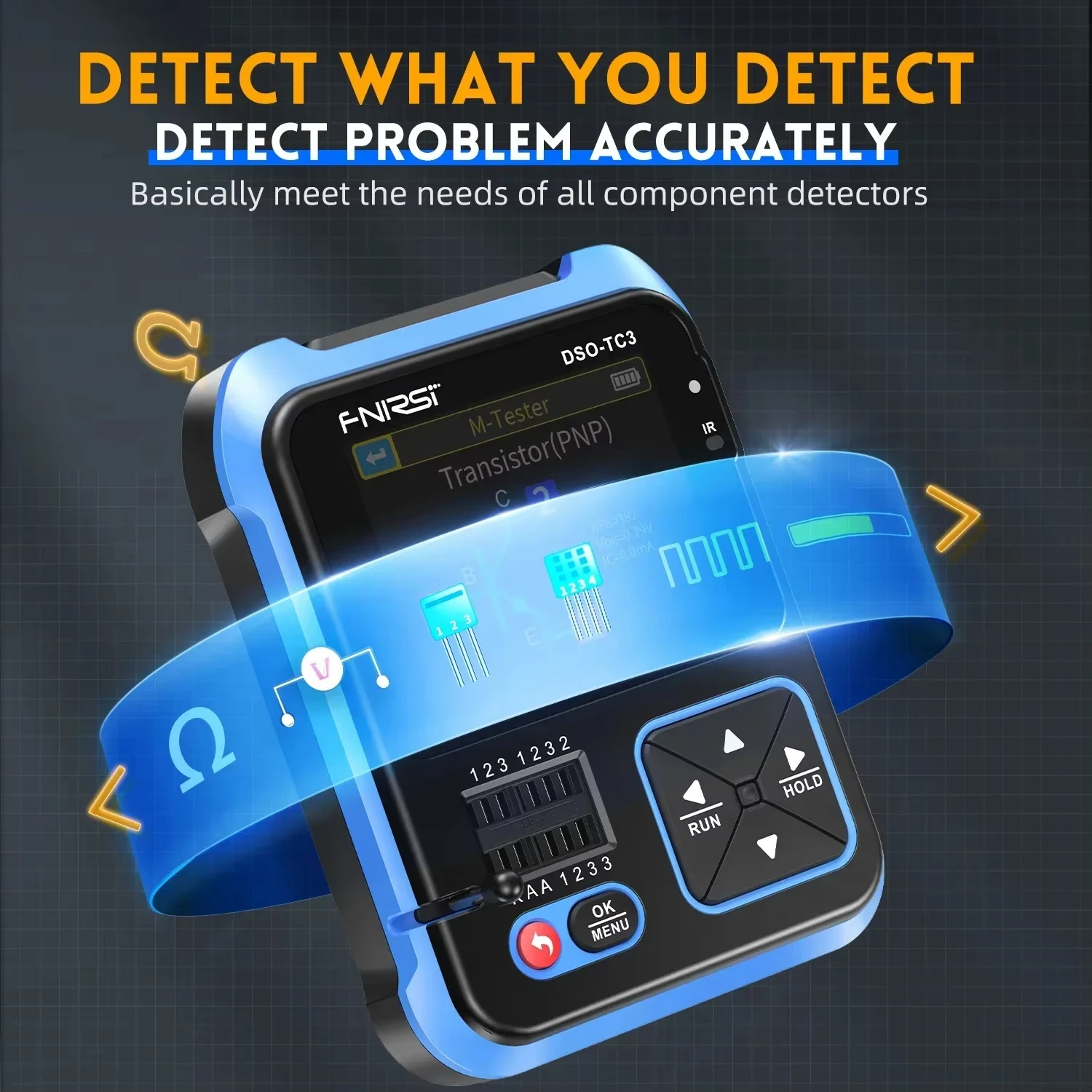

It can test a wide range of electronic components such as diodes, capacitors, resistors, and more, making it a versatile tool for electronics enthusiasts.
The all-in-one foldable stand and various trigger modes and types make it easy to use and operate in different testing scenarios.

Specifications

Display screen

2.4 inch TFT color screen

Supply voltage

Rechargeable lithium battery

Charging specifications

Type-C 5V

Bracket specifications

All-in-one foldable stand

Real-time sample rate

10MSa/s

Analog Bandwidth

500Khz

Input resistance

1MΩ

Coupling method

Test voltage range

400V

Vertical Sensitivity (x1)

10mV-10V

Horizontal time base range

1us-10s

Trigger mode

Auto / Normal / Single

Trigger type

Rising edge / Falling edge

Waveform Freeze

Yes

Automatic measurement

Yes

Diodes

Forward voltage drop <4.5V

Reglulated diode

0.01~4.5V

MOSFET

JFET IGBT MOSFET

SCR

Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor

5pF~100mF

Resistor

0.01Ω~50MΩ

Inductor

10uH~1000mH

Battery

0.1~4.5V

Input voltage

0~40V

Brand Name

FNIRSI

Model Number

DSO-TC3

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

semi_Choice

yes

Description

Digital Multimeter Oscilloscope Transistor Tester Signal Generator FNIRSI DSO TC3 3 in 1 Multifunction Electronic Component Tester
