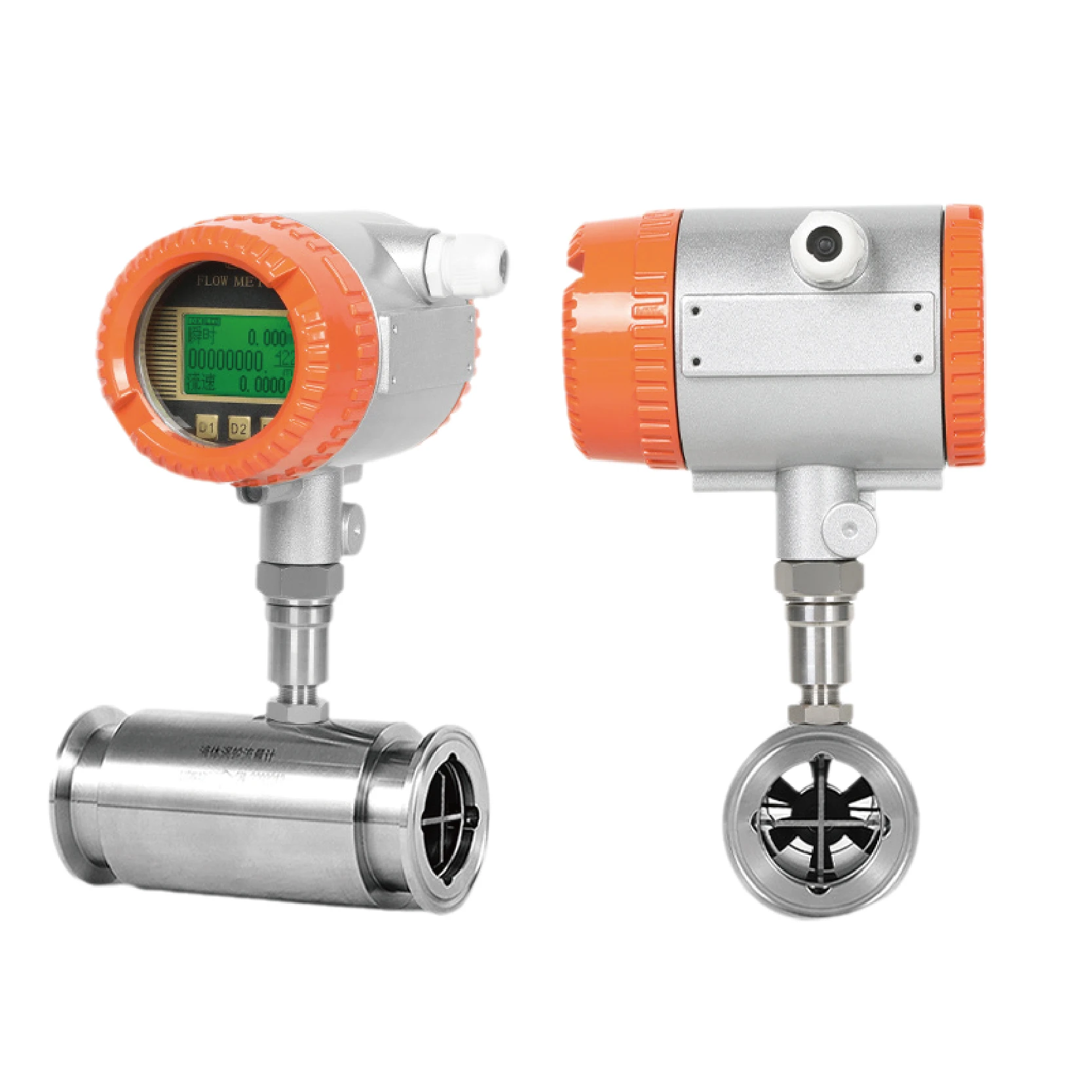

Liquid Turbine Flow Meter Diesel Fuel Turbine Flow Sensor Digital Oil Industrial Water High-Precision

Reviews | Questions & Answers
AU $677.84 ~ 986.38
Price includes 10% AU GST

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This liquid turbine flow meter, made of 304 stainless steel, is suitable for measuring diesel fuel, industrial water, and other liquids with high precision.
  • It offers multiple connection types (thread/clamp/flange) and a nominal diameter range of DN4-DN300 mm, providing flexibility in installation.
  • With a measurement accuracy of 0.5 grade/1.0 grade, it ensures reliable and accurate flow measurement.
  • The wide temperature and viscosity ranges, along with customizable options, make it suitable for various industrial applications.
  • Certified with a protection grade of IP65 (standard) or IP68 (optional), it can withstand harsh environments.
Specifications
Brand Name
CERTEON
Hign-concerned Chemical
None
DIY Supplies
Plumbing
Model Number
LWGY
Material
304 Stainless Steel
Connection Type
Thread/Clamp/Flange
Nominal Diameter
DN4-DN300 mm
Measurement Accuracy
0.5 grade / 1.0 grade
Viscosity Range
Less 5e-6m2s liquids need calibration
Nominal Pressure
1.0, 1.6, 2.5, 4.0, 6.3 MPa (customizable for high pressure)
Temperature Range
Medium: -20°C to 80°C (customizable for high temperatures)
Power Supply
3.6V lithium battery; 12VDC; 24VDC
Output Signal
3 wire pulse 2 wire 4 20mA RS485 pulse eqv
Protection Grade
IP65 (standard), IP68 (optional)
