DS0138 Digital Oscilloscope 2.4 Inch TFT with LCD Display Alligator Probe Test Clip Fully Assembled for DIY Measuring Instrument digital oscilloscope

Product Features

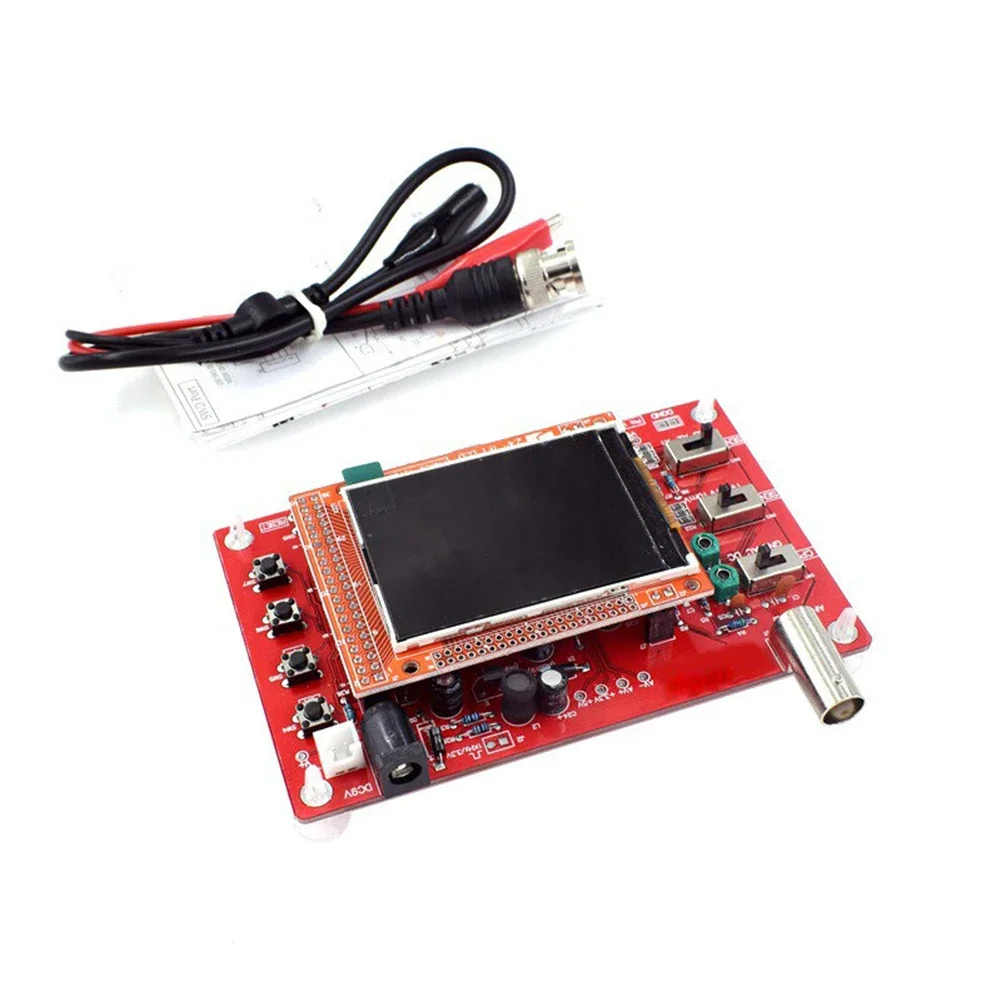

This DS0138 digital oscilloscope with a 2.4-inch TFT LCD display is fully assembled for easy DIY measuring.
It has a real-time sampling rate of 1Msps and 12-bit accuracy, ensuring precise measurement results.
The sample buffer depth of 1024 bytes and analog frequency bandwidth of 0-200KHz provide comprehensive data collection.
With vertical sensitivity from 10mV/Div-5V/Div and horizontal time base range from 10μs/Div-50s/Div, it offers a wide range of measurement capabilities.

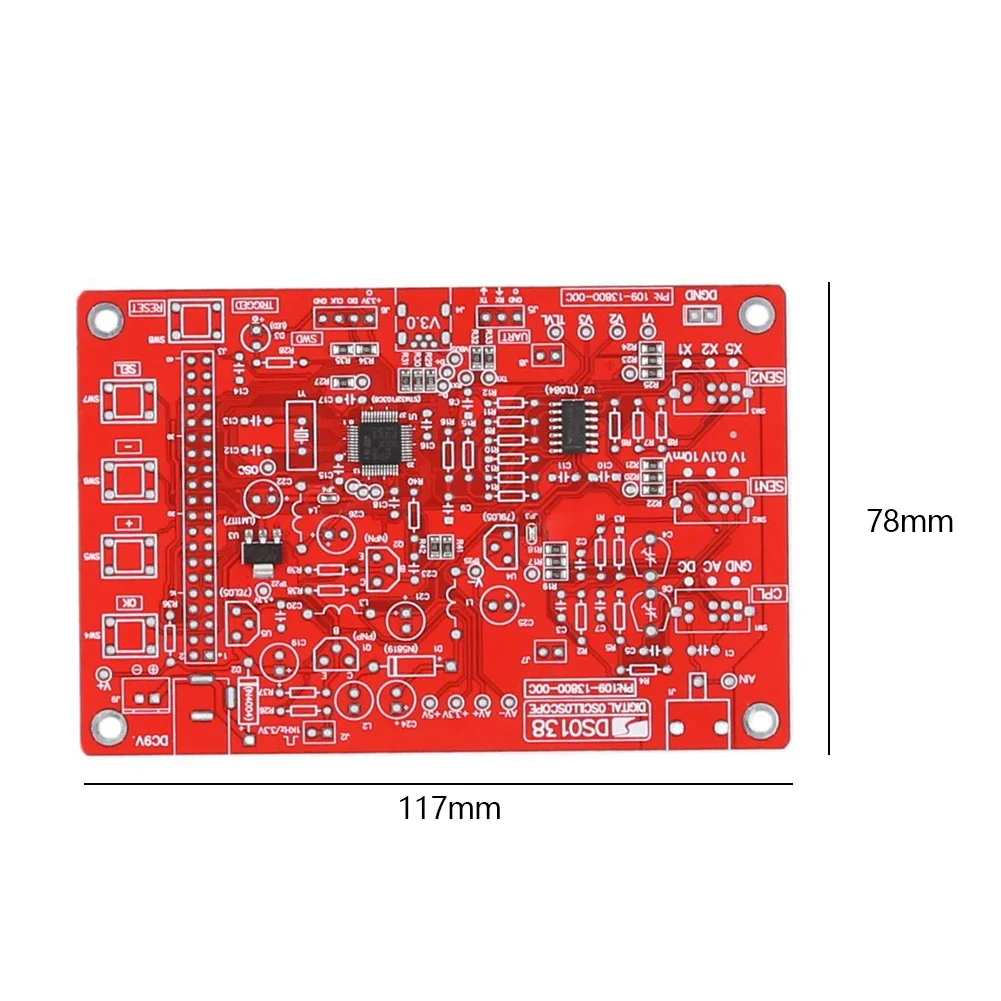

Measuring 117x78x17mm, it is compact and portable, suitable for various DIY projects.

Specifications

Brand Name

APWIKOGER

DIY Supplies

ELECTRICAL

Digital Oscilloscope

Digital Oscilloscope DIY Kit

Digital Oscilloscope Kit

Oscilloscope Kit

Real-time sampling rate

1Msps

Accuracy

12Bit

Sample buffer depth

1024 bytes

Analog frequency bandwidth

0 - 200KHz

Vertical sensitivity

10mV/Div - 5V/Div (in steps of 1-2-5)

Input impedance

1MΩ

Horizontal time base range

10μs/Div - 50s/Div (progressively in 1-2-5 manner)

Size

117x78x17mm/4.61x3.07x0.67inch

Description
