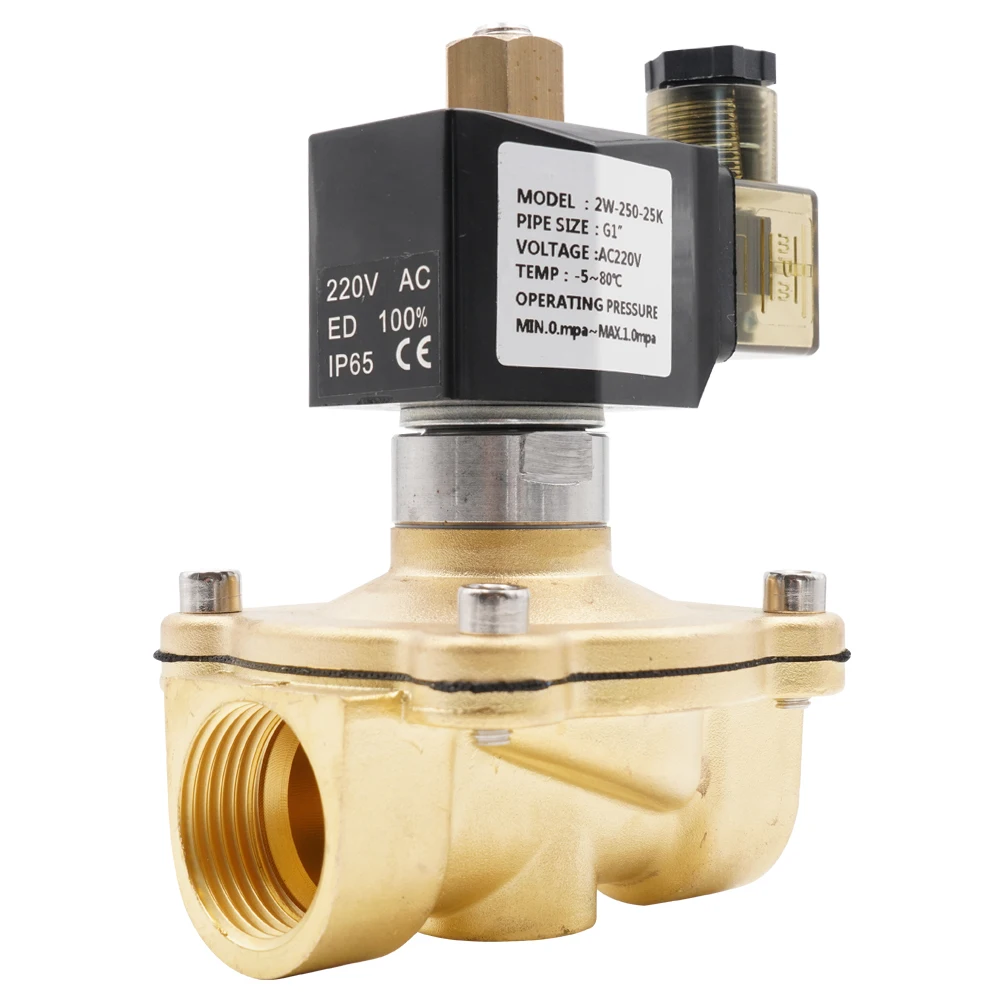

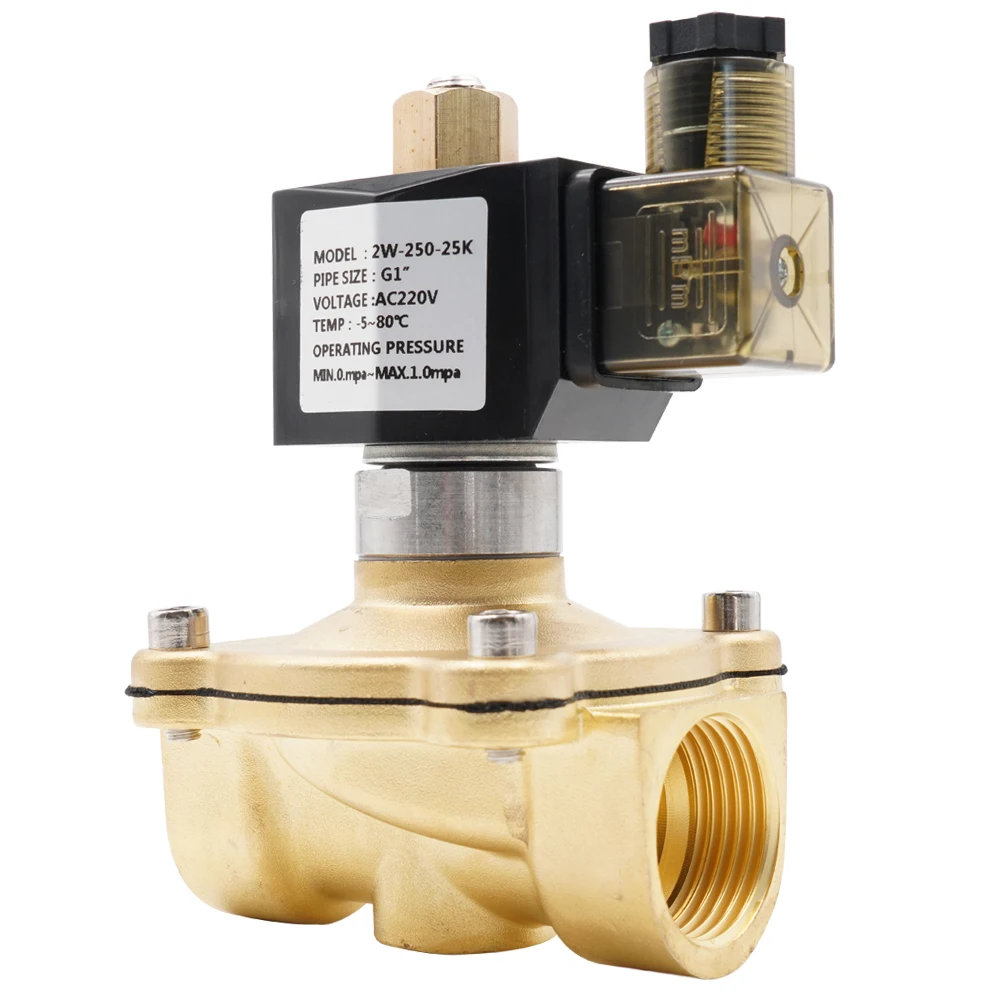

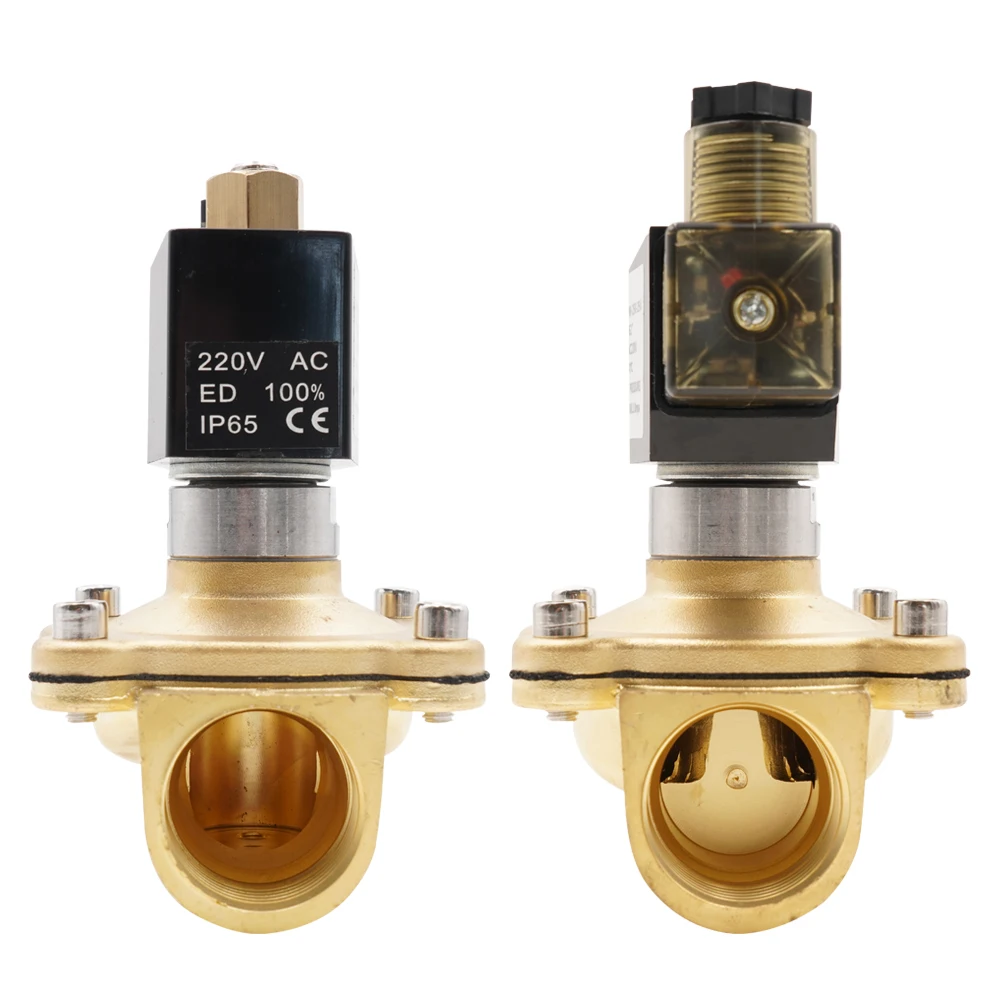

Brass Normally Open Solenoid Valve,G3/8" to G2",NBR EPDM VITON Seal,AC220V DC12V 24V,IP65 High Temperature Resistant Water Valve

Product Features

This brass normally open solenoid valve is suitable for a variety of media including water, air, oil, and gas, with a wide range of port sizes from G3/8" to G2".
It offers multiple voltage options such as AC220V, DC12V, and 24V, making it adaptable to different power sources and applications.
The valve has an IP65 protection level, ensuring high-temperature resistance and reliable performance in various environments.
With NBR, EPDM, and VITON seals, it provides excellent sealing performance and is suitable for medium-pressure applications.
Designed with a direct-acting working type and one-way flow direction, it is a practical and efficient water valve for many industrial and household uses.

Specifications

Structure

Dıaphragm

Port Size

G3/8" G1/2" G3/4" G1" G1-1/4" G1-1/2" G2"

Power Source

Standard or Nonstandard

Standard

Media

Water

Material

BRASS

Model Number

2W series

Temperature of Media

High Temperature

NC or NO

Normally Open

Pressure

Medium Pressure

Actuator Mode

Without Manual And Instruction

Power

Solenoid

Fluid Media

Air,Water,Oil,Gas

Medium Temperature

-5~80/130/120 Celsius

Working Pressure

0~10bar

Working Type

Direct Acting(NO)

Seals Material

NBR EPDM VITON

Thread Type

G Thread

Voltage

AC24V AC110V AC220V AC380V DC12V DC24V

Coil

Pure copper enameled wire

Protection Level

IP65

Flow direction

one-way

Description

Brass Normally Open Solenoid Valve,G3/8" to G2",NBR EPDM VITON Seal,AC220V DC12V 24V,IP65 High Temperature Resistant Water Valve
