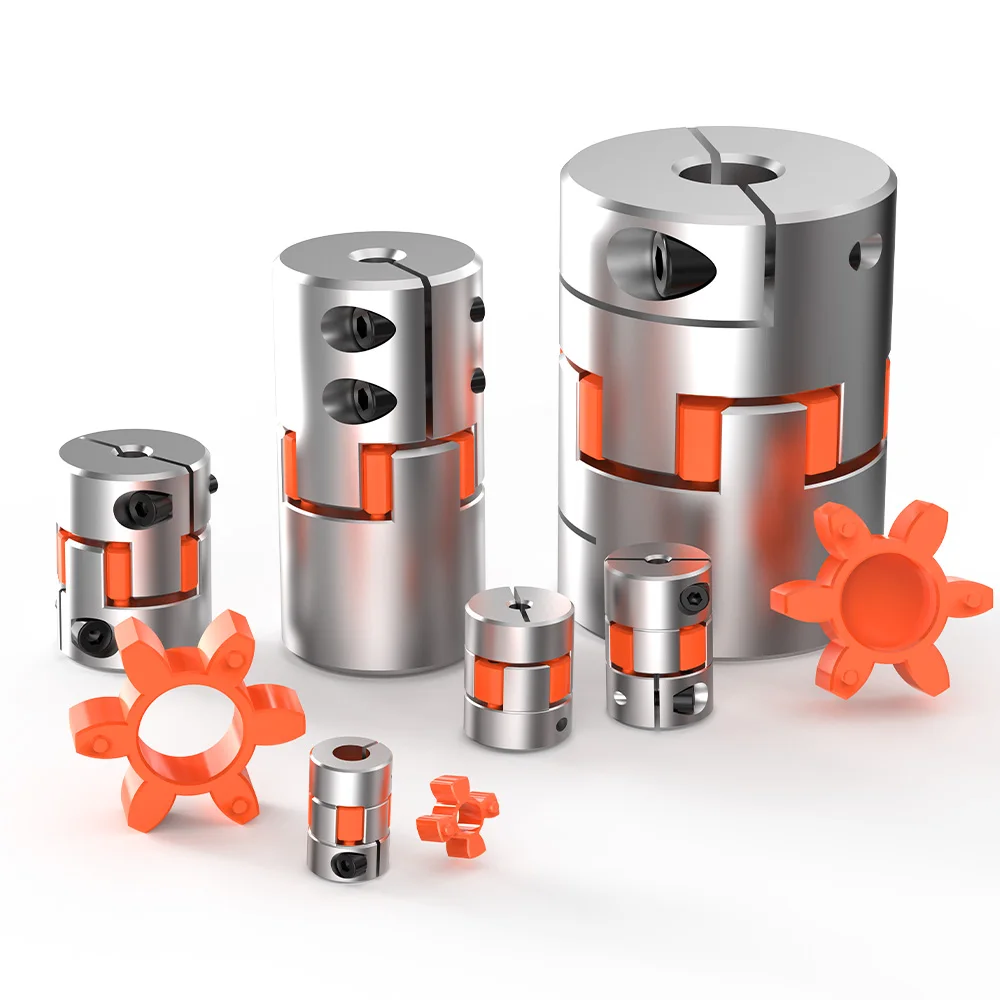

Aluminium Flexible Coupler GTRIC Aluminium Plum Flexible Coupler 4 Jaws D55L78 Spider Elastic Motor Coupling Shaft CNC 12/14/15/16/18/19/20/22/25/28/30 mm

Product Features

Made of high-quality aluminium, ensuring durability and light weight. The D55L78 4-jaw series design provides excellent flexibility and clamping force.
RoHS certified, meeting environmental standards. It features a spider plum structure, allowing for smooth power transmission and reduced vibration.
With a rated torque of 46N.m and a maximum torque of 92N.m, it can handle various mechanical tasks. The M6 mounting screws with 2 PCS provide stable installation.
Able to operate at a maximum speed of 10500r/min and with an allowable eccentricity of 0.15mm and a maximum deflection of 1, it is suitable for high-performance machinery.
The commodity application is in machinery and automation, making it a versatile coupling for different industrial applications.

Specifications

Brand Name

GTRIC

Material

Aluminium

Model Number

D55L78 4 jaw series

Standard or Nonstandard

Standard

Structure

Jaw / Spider

Flexible or Rigid

Flexible

Brand

GTRIC

Model

Plum Jaw Coupling

Type

Clamping

Coupling diameter

55mm

Coupling length

78mm

Product Features

Spider Plum Coupling

Product Description

4 jaws plum coupling

Commodity application

Machinery and Automation

Min Bore-Max Bore

12-30mm

Mounting screws

Number of screws

2 PCS

Rated torque

46N.m

Max torque

92N.m

Screw tightening force

17N.m

Max speed

10500r/min

Allowable eccentricity

0.15mm

allowable deflection

1°

Description

Aluminium Flexible Coupler GTRIC Aluminium Plum Flexible Coupler 4 Jaws D55L78 Spider Elastic Motor Coupling Shaft CNC 12/14/15/16/18/19/20/22/25/28/30 mm
