SFP 10Gb BiDi SFP Transceiver Module 10Gbase-BX Tx1270/Rx1330nm 10km,20km/40/60km LC WDM SFP+ Optical Module For Mikrotik/Huawei Fiber Optic Adapter

Product Features

This SFP 10Gb BiDi SFP transceiver module is for Mikrotik/Huawei fiber optic adapters. It has a 10Gbps data rate and a single-mode fiber type.
Made in Mainland China, it supports DDM/DOM and has a wavelength of 1270nm/1330nm. It's RoHS-certified.
With transmission distances of 10km, 20km, 40km, 60km, it's suitable for various network setups. It has a simplex LC port.
The module is compliant with IEEE 802.3ae, SFP+ MSA, CPRI, and eCPRI protocols. It has a low power consumption.
This SFP transceiver module is a reliable and high-performance option for upgrading your network's fiber optic connectivity.

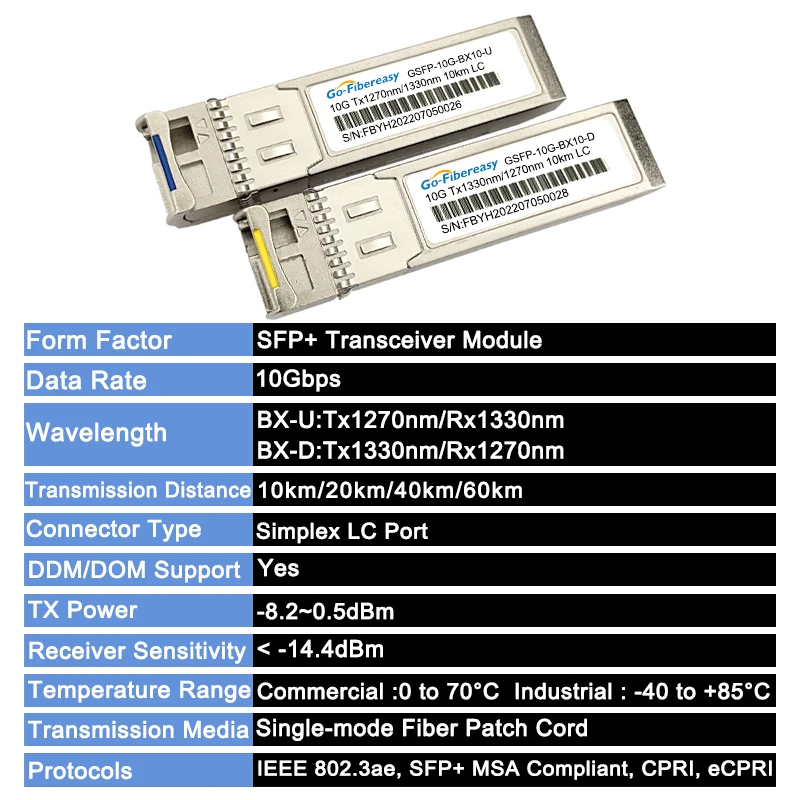

Specifications

Brand Name

Go-Fibereasy

Fiber Type

Single Mode

Connector Type

Simplex LC Port

Model Number

GSFP-10G-BX10-U/D BiDi 10G SFP Module

Compatible

Huawei

Form Factor

SFP+ BIDI Transceiver Module

Data Rate

10Gbps

Wavelength

1270nm/1330nm

Transmission Distance

10km,20km,40km,60km

DDM/DOM

Support

TX Power

-8.2~0.5dBm

Receiver Sensitivity

< -14.4dBm

Power budget

6.2dB

Receiver Overload

0.5dBm

Typical Power Consumption

≤1W

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI

Description

SFP 10Gb BiDi SFP Transceiver Module 10Gbase-BX Tx1270/Rx1330nm 10km,20km/40/60km LC WDM SFP+ Optical Module For Mikrotik/Huawei Fiber Optic Adapter
