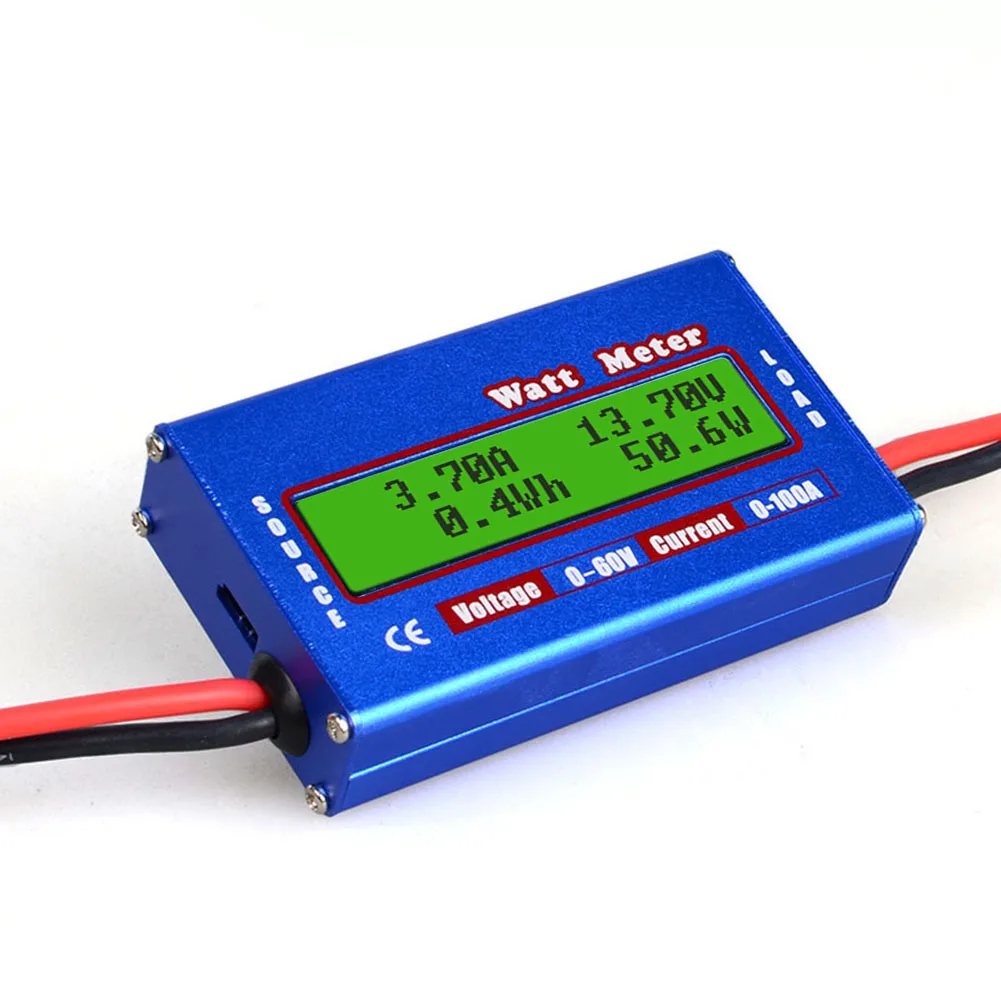

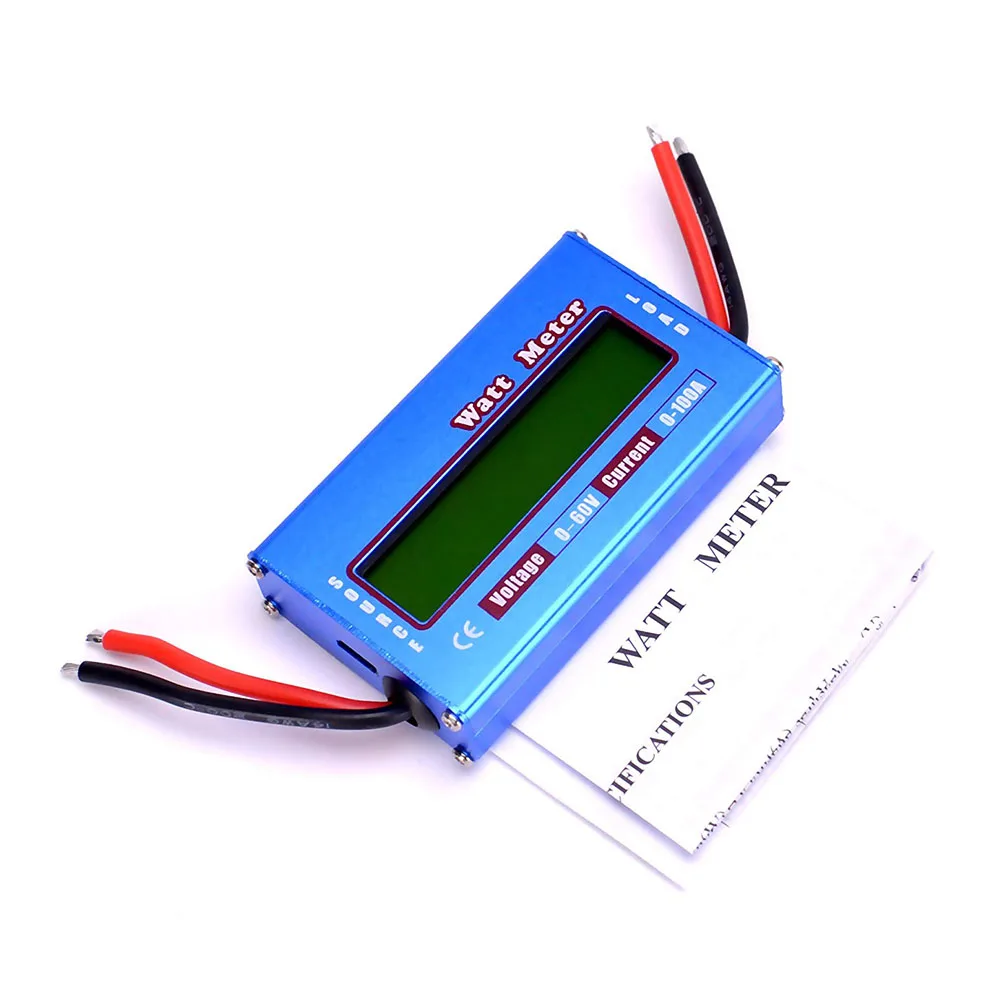

Digital LCD DC 60V 100A Balance Voltage Battery Power Analyzer RC Watt Meter power meter voltage current meter

Product Features

This digital LCD DC 60V 100A balance voltage battery power analyzer is a high-precision device with a 0.01V voltage resolution, 0.01A current resolution, and 0.1W power resolution, ensuring accurate measurements.
It has a wide measurement range, including voltage from 0V-60V, current up to 100A, power up to 6554W, and charging up to 65Ah, suitable for various battery power analysis needs.
The measurement update cycle is 400mS, and the data queue sequence time is 2 seconds, providing real-time and stable data for users.
With a circuit resistance of 0.001 ohms and a working current of 7 mA, it is energy-efficient and reliable in operation.
The compact packing size of 117*75*35mm makes it portable and easy to carry for on-the-go battery power analysis.

Specifications

Hign-concerned Chemical

None

DIY Supplies

Metalworking

Watt Meter

Power Analyzer

Color

blue

Voltage

(0)V-4V-60V 0.01V (resolution)

Current

0-100 A max 0.01A (resolution)

Power

0-6554 W 0.1W (resolution)

Charging

0-65 Ah 0.001Ah (resolution)

Energy

0-6554 wh 0.1 Wh (resolution)

Measurement update cycle

400mS

Signal sampling rate

sample / sec

Data queue sequence time

2 seconds

Circuit resistance

0.001 ohms

Working current

7 mA

Packing size

117*75*35mm/4.61*2.95*1.37''

semi_Choice

yes

Description

Digital LCD DC 60V 100A Balance Voltage Battery Power Analyzer RC Watt Meter power meter voltage current meter
