Beok 8-Channels Wireless Underfloor Heating Central Controller Warm Floor for Gas Boiler System Thermostat Actuators Servo

Product Features

This 8-Channels Wireless Underfloor Heating Central Controller is suitable for gas boiler systems. It can control up to 8 pcs BOT306-NR Wireless Thermostats, boilers, circulating pumps, and electric thermal actuators/servos.
With a power supply of 170-240VAC 50/60HZ and a current load of 3A, it provides stable and reliable performance. It is CE-certified, ensuring its quality.
The controller has a set temperature range of 5-35℃ and a maximum indoor distance of 30m from the CCT-10-X. It can be controlled via the Beok Home APP (only wifi).
Made of anti-flammable PC + ABS material, it is safe to use. It can be used to control multi-zone central heating, providing a comfortable living environment.
This underfloor heating central controller is an ideal choice for those who want to have precise control over their floor heating system. Its multiple functions and reliable performance make it a valuable addition to any home.

Specifications

CCT-10-X Hub controller Power Supply

170-240VAC 50\60HZ

Current Load

Frequency hub controller

467MHz

Control objects 1

8 pcs BOT306-NR Wireless Thermostat

Control objects 2

Boilers/Heaters (via "Dry Contact")

Control objects 3

Circulating pumps

Control objects 4

Electric Thermal Actuators/Servos

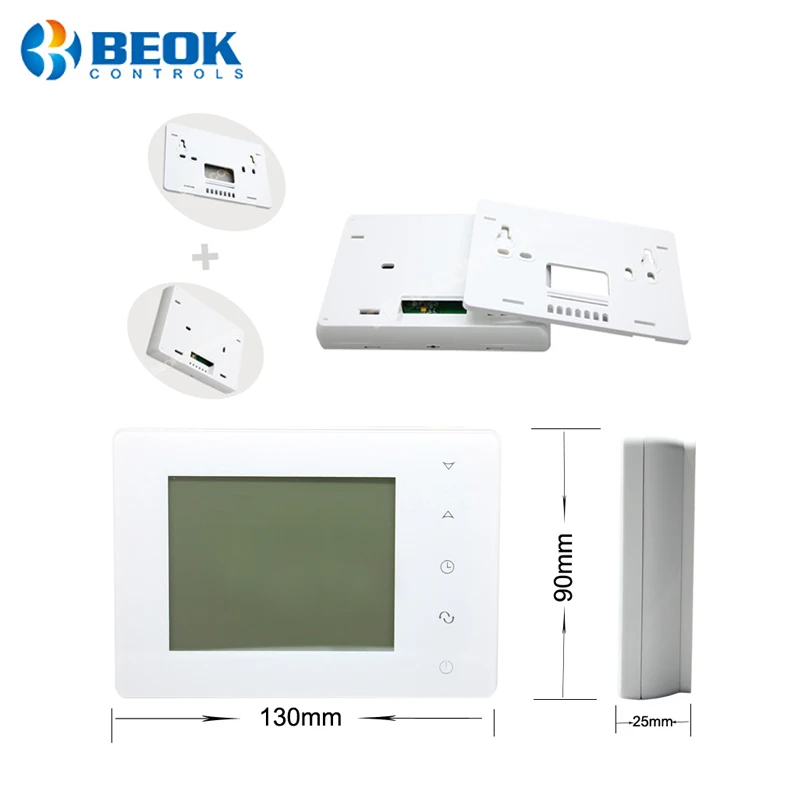

BOT306-NR series Wireless Thermostat

For water underfloor heating system

APP Control (only wifi)

Beok Home

BOT-X306-NR power supply

2 x AA Batteries

BOT306RF-WIFI-NR power supply

Usb Type C

Set Temp. range

5-35℃

Max distance from CCT-10-X

30m Indoor

RZ-AN230-NO

Normally Opened

RZ-AN230-NC

Normally Closed

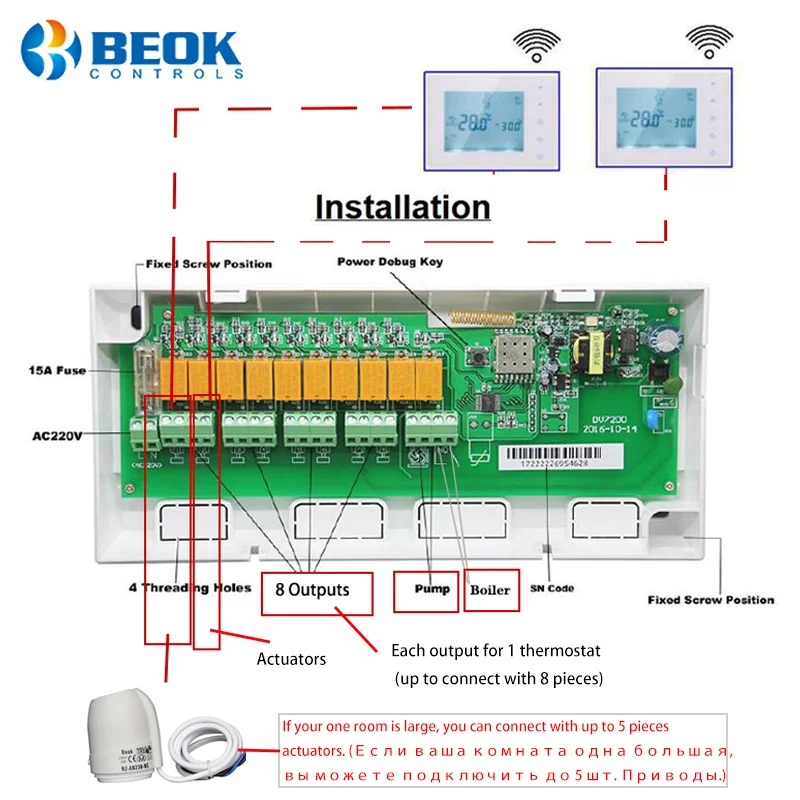

How many servo can be connected

1 output up to 5 servos

connect with pump

500W max

Hub controller Function 1

central heating boiler control

Hub controller Function 2

main controller unit for servomotor heating

Hub controller Function 3

suitable to control multi zone central heating

Brand Name

beok

Voltage

220V

Model Number

CCT-10-X

Material

Anti-flammable PC +ABS

Hign-concerned Chemical

None

Type

Floor Heating Systems

semi_Choice

yes

Description

Beok 8-Channels Wireless Underfloor Heating Central Controller Warm Floor for Gas Boiler System Thermostat Actuators Servo
