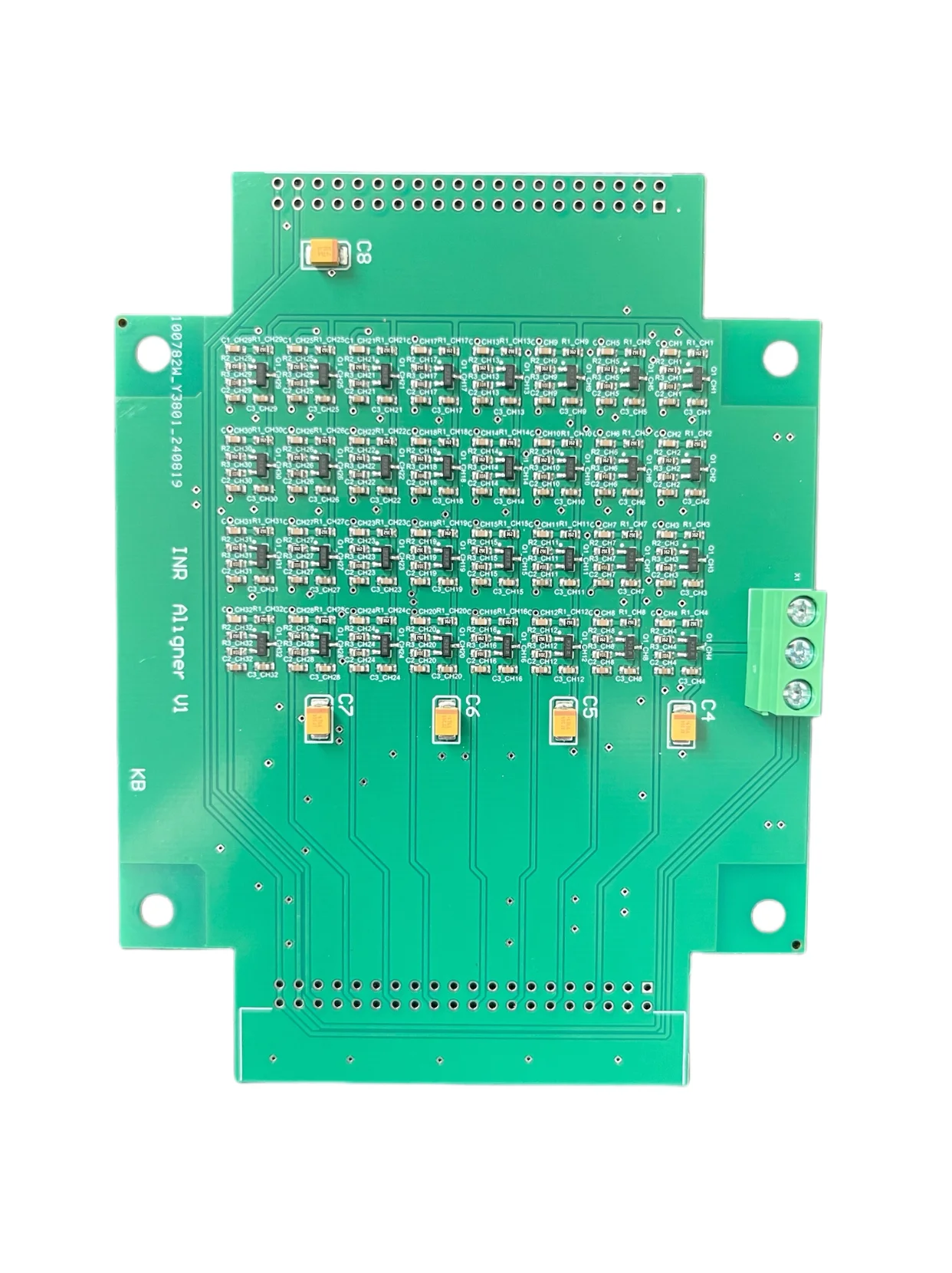

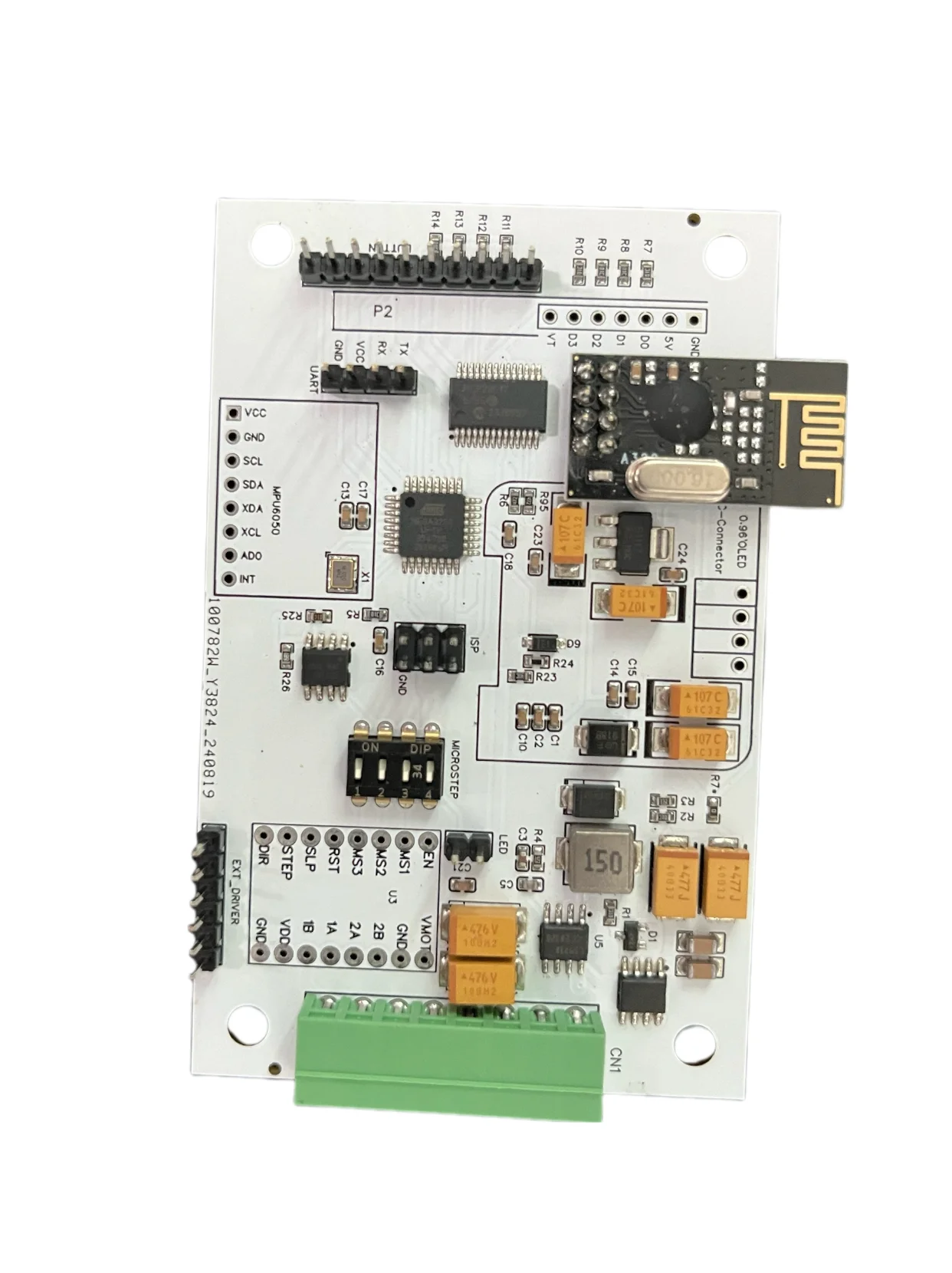

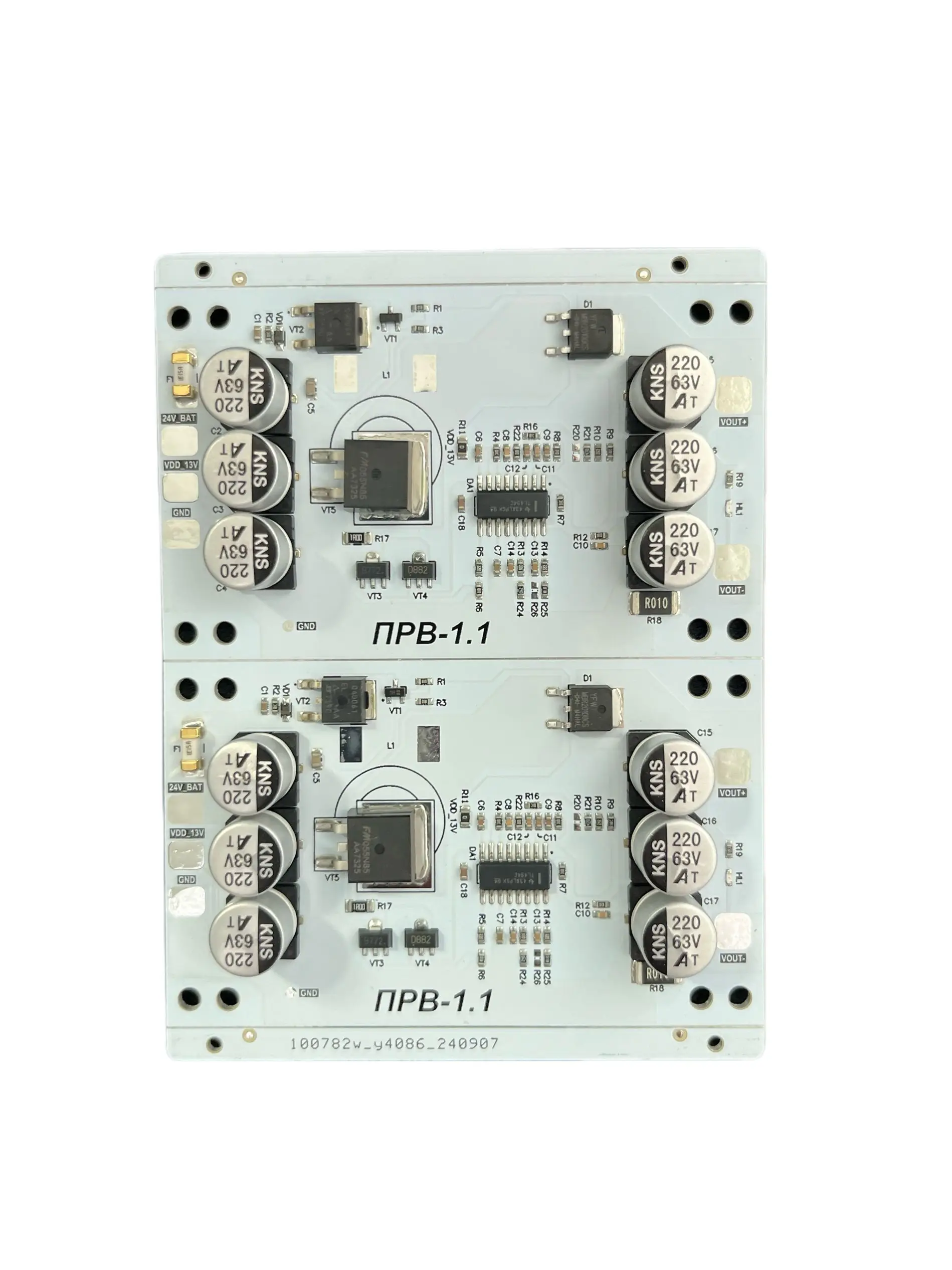

Printed Circuit Board PCB Manufacturing Assembly Printed Circuits Samples Prototype PCB Services 1-8 Layers Fabricated Factory pcb board pcb board assembly printed circuit board

Product Features

This 4-layer printed circuit board (PCB) is fabricated with FR4 base material, offering high-quality electrical insulation and mechanical strength for reliable performance.
With a minimum line spacing of 0.1mm and a minimum line width of 0.3mm, it allows for precise circuit design and high-density component placement.
The HASL surface finishing provides good solderability, ensuring a strong and stable connection between components and the PCB.
It is customizable, allowing customers to design their own circuits according to specific requirements, making it suitable for a wide range of electronic applications.
With a board thickness of 1.6mm and a minimum hole size of 0.3mm, this PCB meets the needs of various electronic devices and can be used in different industries.

Specifications

Brand Name

SPCB

Number of Layers

4-Layer

Hign-concerned Chemical

None

Base Material

FR4

Min. Line Spacing

0.1mm

Model Number

custom

Copper Thickness

1/1/1/1

Board Thickness

1.6mm

Min. Hole Size

0.3mm

Min. Line Width

0.3MM

Surface Finishing

HASL

Description
