Product Features

With 0.02mm accuracy and up to 60FPS, the Creality 3D Scanner Raptor ensures precise 3D scans. Its non-contact passive stereoscopic technology and non-contact active structured lighting provide detailed results.
The 1920x1200 3D imaging camera resolution, along with 12 white LEDs for color supplementation and 12 infrared LEDs for marker recognition enhancement, offers excellent scanning capabilities.
Boasting a Class I (eye safe) laser and a mechanical button, it is both safe and user-friendly. It supports multiple output formats like OBJ/STL/PLY and has a wide operating temperature range of -10C to 40C.
Equipped with an IMU and having a data interface of TypeC/USB3.0, it offers convenient connectivity. The high-precision glass calibration board ensures accurate scans. Wireless scanning is supported with future accessories.

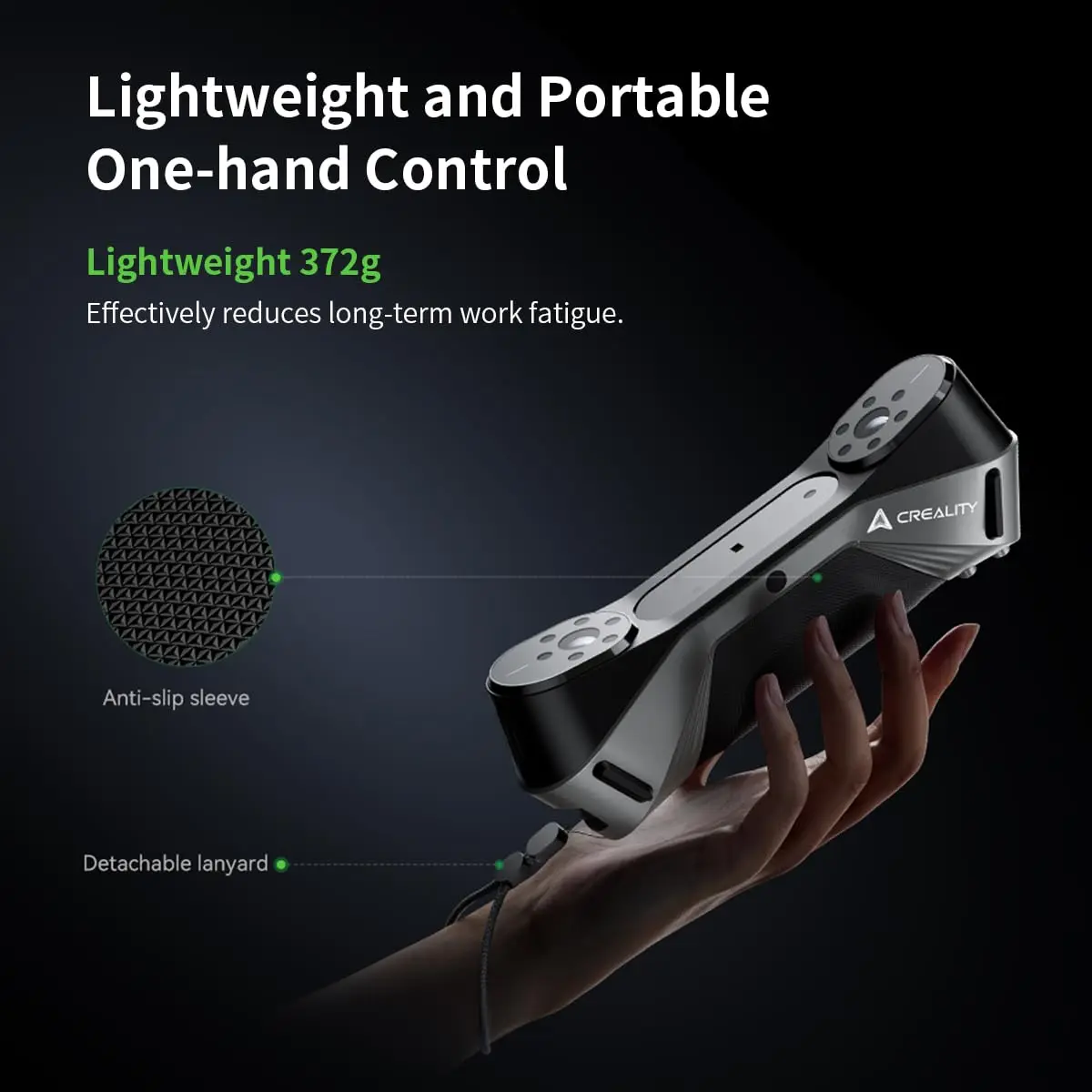

Its compact size of 215mmx50mmx74mm makes it portable, and it is suitable for various operating environments with a humidity range of 0-90%RH. Compatible with Windows and macOS systems.

Specifications

Brand Name

CREALITY 3D

Hign-concerned Chemical

None

Non-Contact Passive

Stereoscopic

Scan Breadth

270mmx170mm@300mm

Non-Contact Active

Structured Lighting

Model Number

CR-Scan Raptor

Scanning Mode

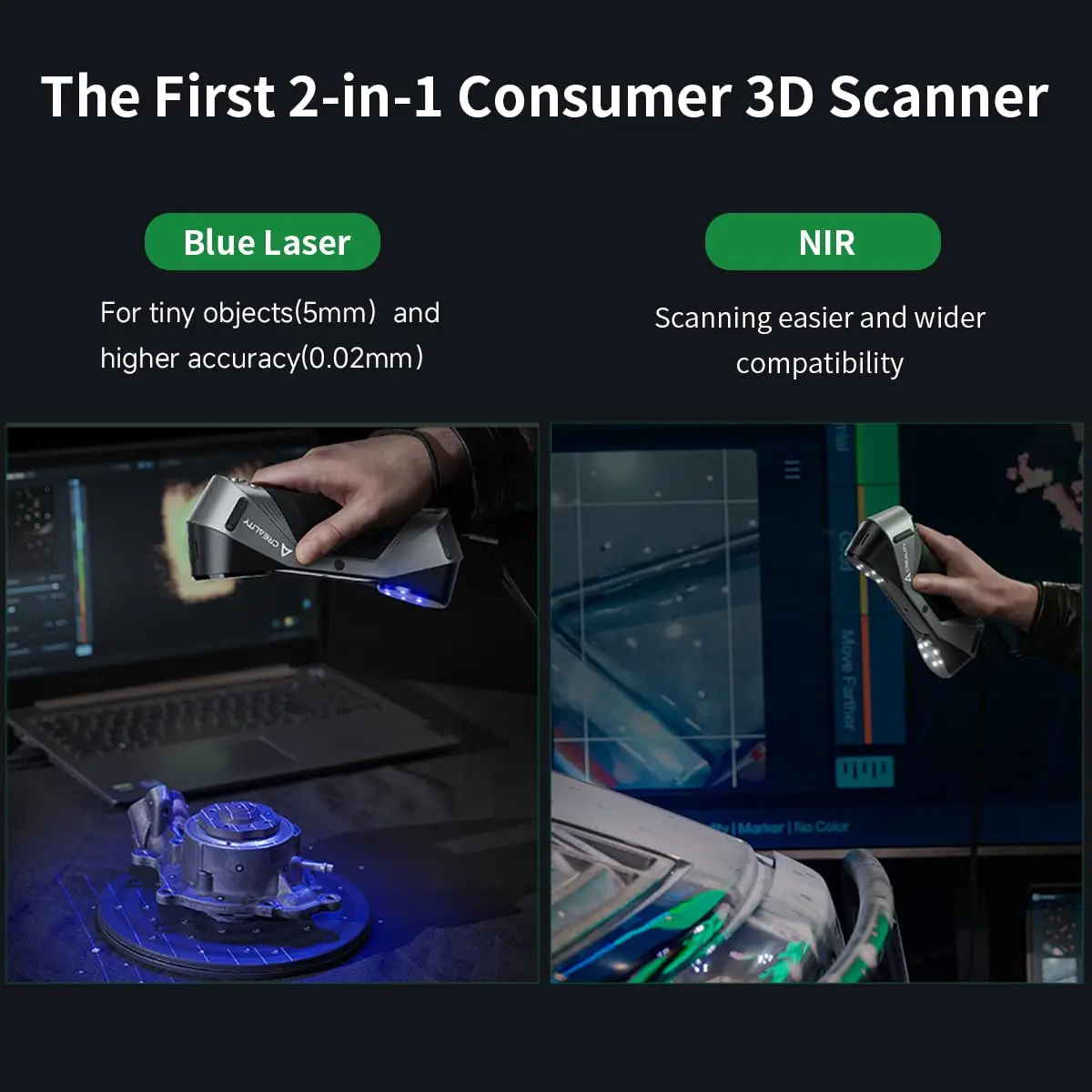

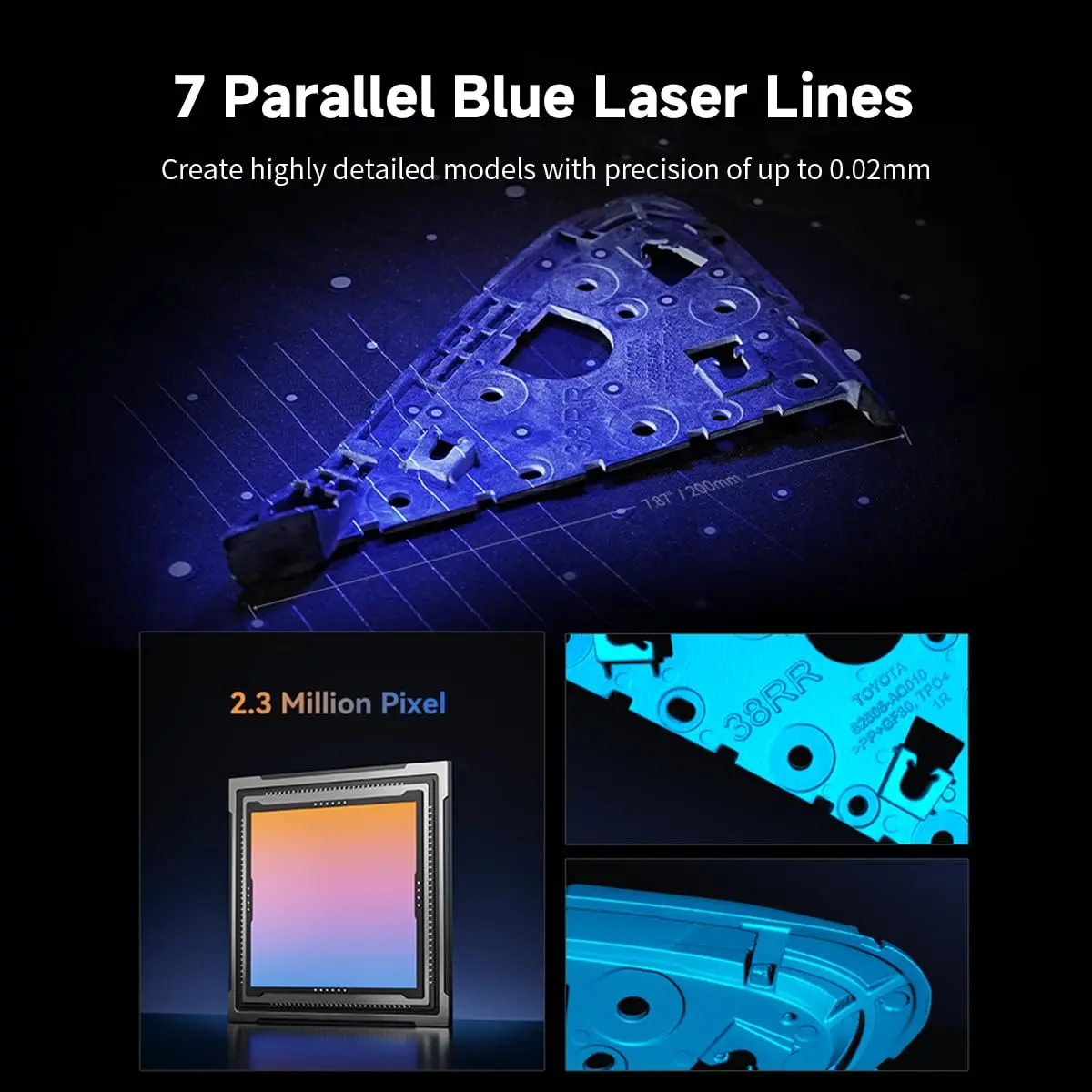

Blue Light(Blue 7-line laser) / NIR(infrared binocular structured ligh

3D imaging camera resolution

1920x1200

Color Supplemental Light

12 white LEDs

Marker Recognition Enhancement

12 infrared LEDs

Laser Safety

Class I (eye safe)

Button

Mechanical

IMU

Yes

Output format

OBJ/STL/PLY

Input Power

12V 2A

Data interface

TypeC/USB3.0

Device Dimensions

215mmx50mmx74mm

Calibration board

High-precision glass calibration board

Wireless Scanning

Supported in conjunction with future wireless scanning accessories

System Support

Windows/macOS

Operating temperature

-10°C to 40°C

Operating humidity

0-90%RH

Note

Accuracy is evaluated in laboratory conditions (measurement object is
