Product Features

This FNIRSI LCR-P1 multimeter can measure various parameters. It has a wide range of inductance from 10uH to 1000uH, and can accurately measure diode forward voltage drop less than 4.5V.

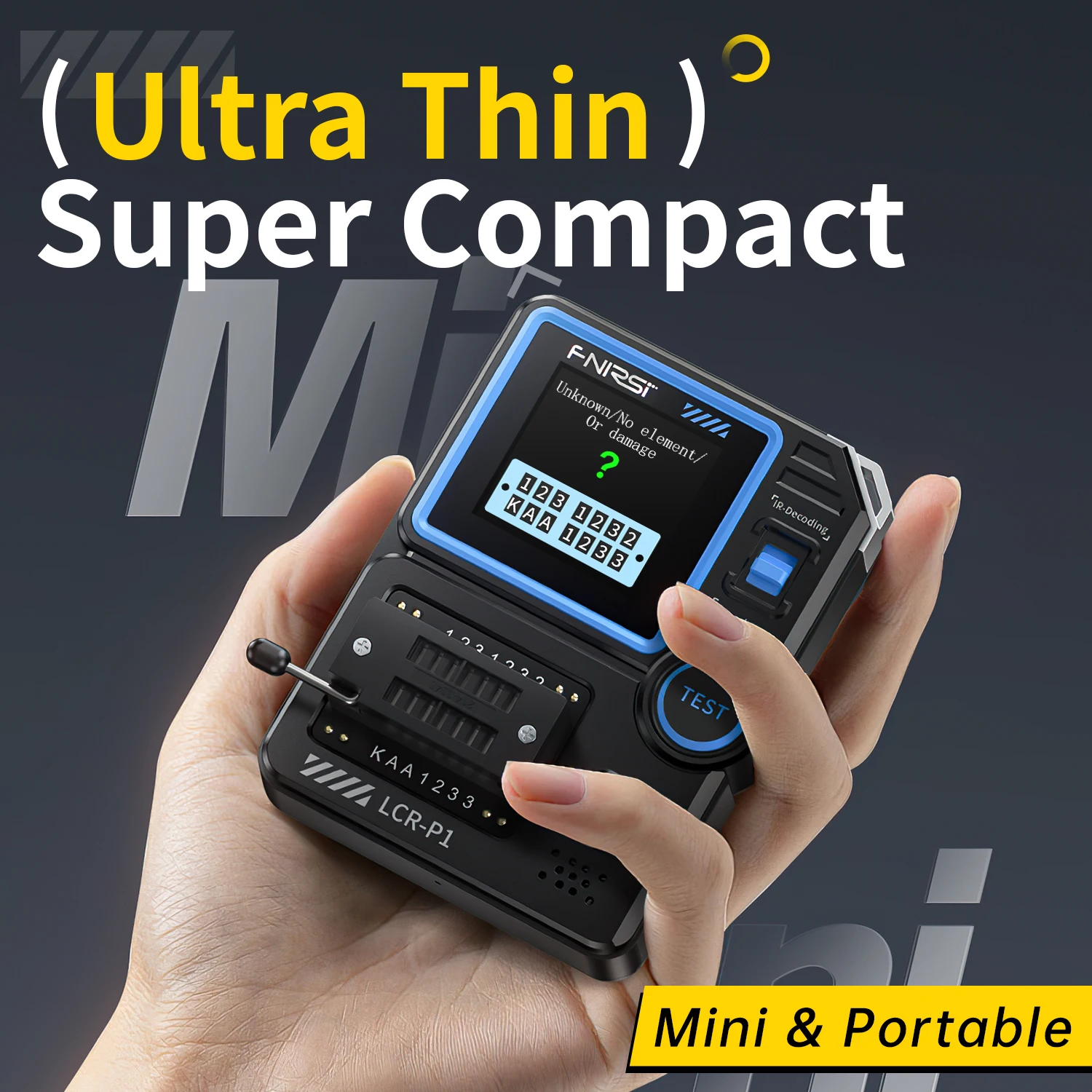

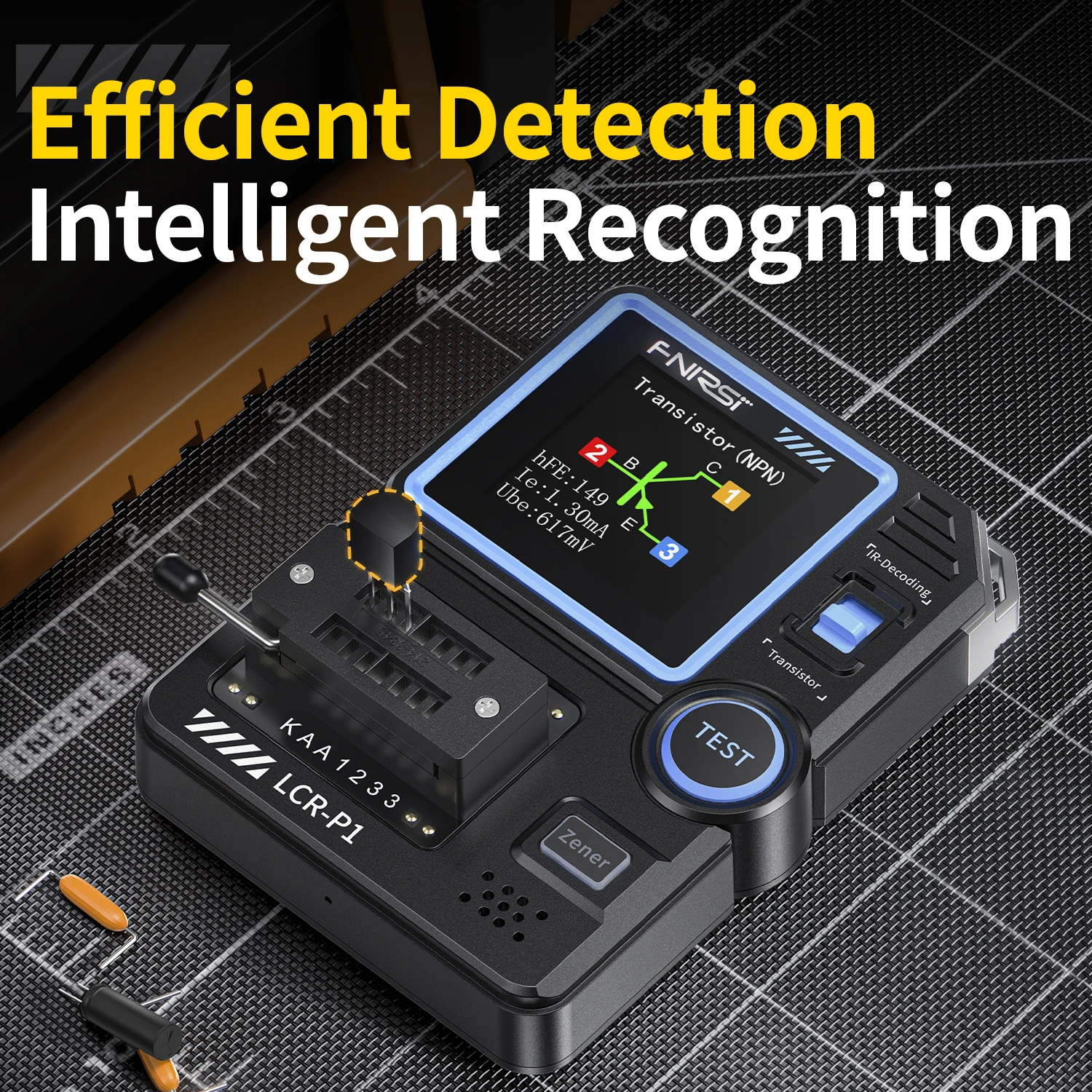

With a 1.44 Inch Color Screen and data export support, it provides clear and convenient display and data handling. It can test transistors from 10 to 600 and handle different types of field-effect transistors like JFET, IGBT, and MOSFET.
The LCR-P1 supports USB Type-C charging with 5V/1A, and has a 300mAh lithium battery. It also has anti-burn protection and firmware upgrade features, ensuring stable and reliable performance.
It can measure capacitance from 25pF to 100mF and resistance from 0.01 to 50M. For voltage regulator diodes, it can measure from 0.01 to 4.5V and 0.01 to 32V.
This multimeter can handle one-way/bidirectional thyristors with a turn-on voltage less than 5V and a gate trigger current less than 6mA. It is CE certified and made in Mainland China with customization options available.

Specifications

Inductance

10uH-1000uH

Diode

Forward voltage drop Less than4.5V

Transistor

10-600

Battery

0.1-4.5V

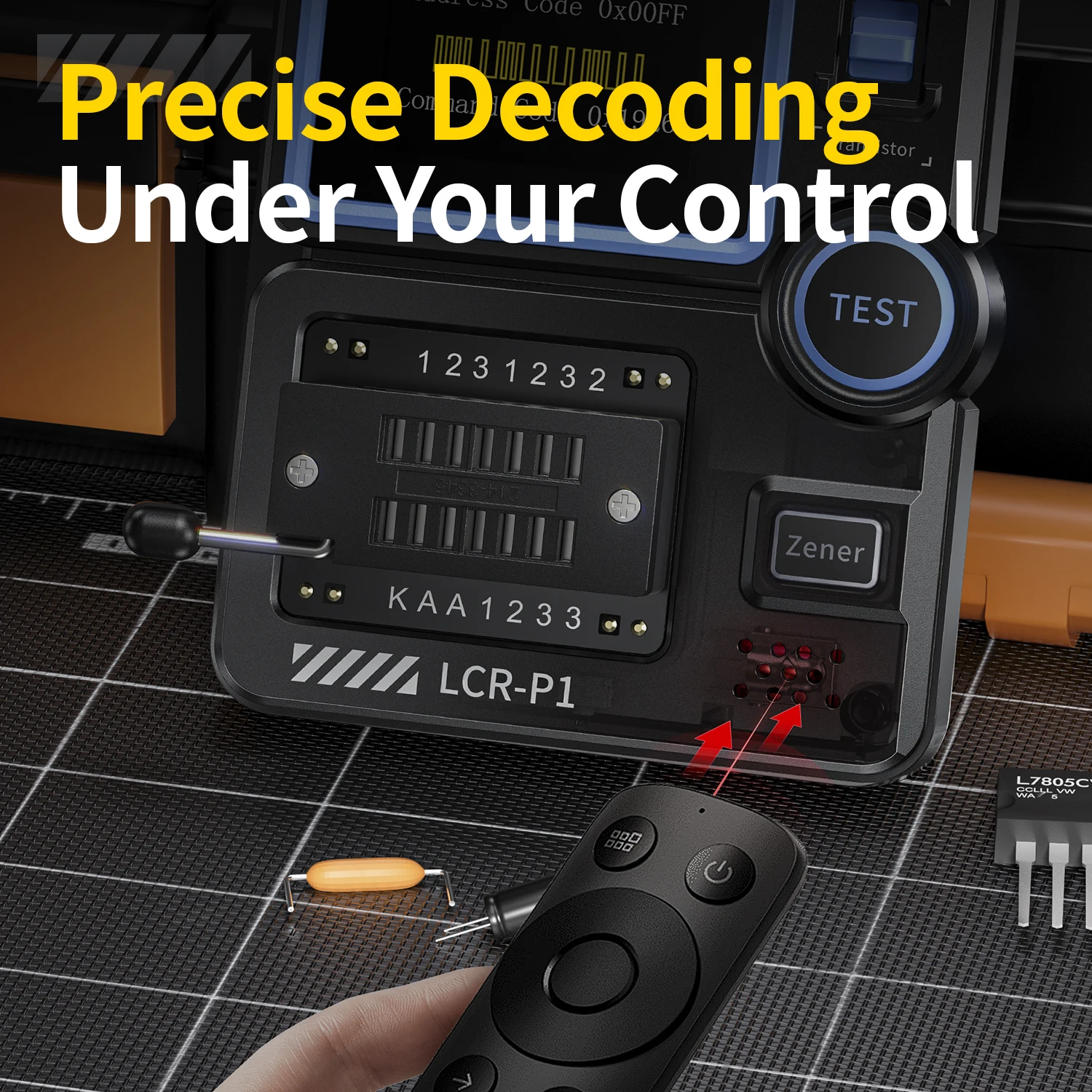

IR remote decoding

NEC protocol infrared code

Charging Specification

USB Type-C, 5V/1A

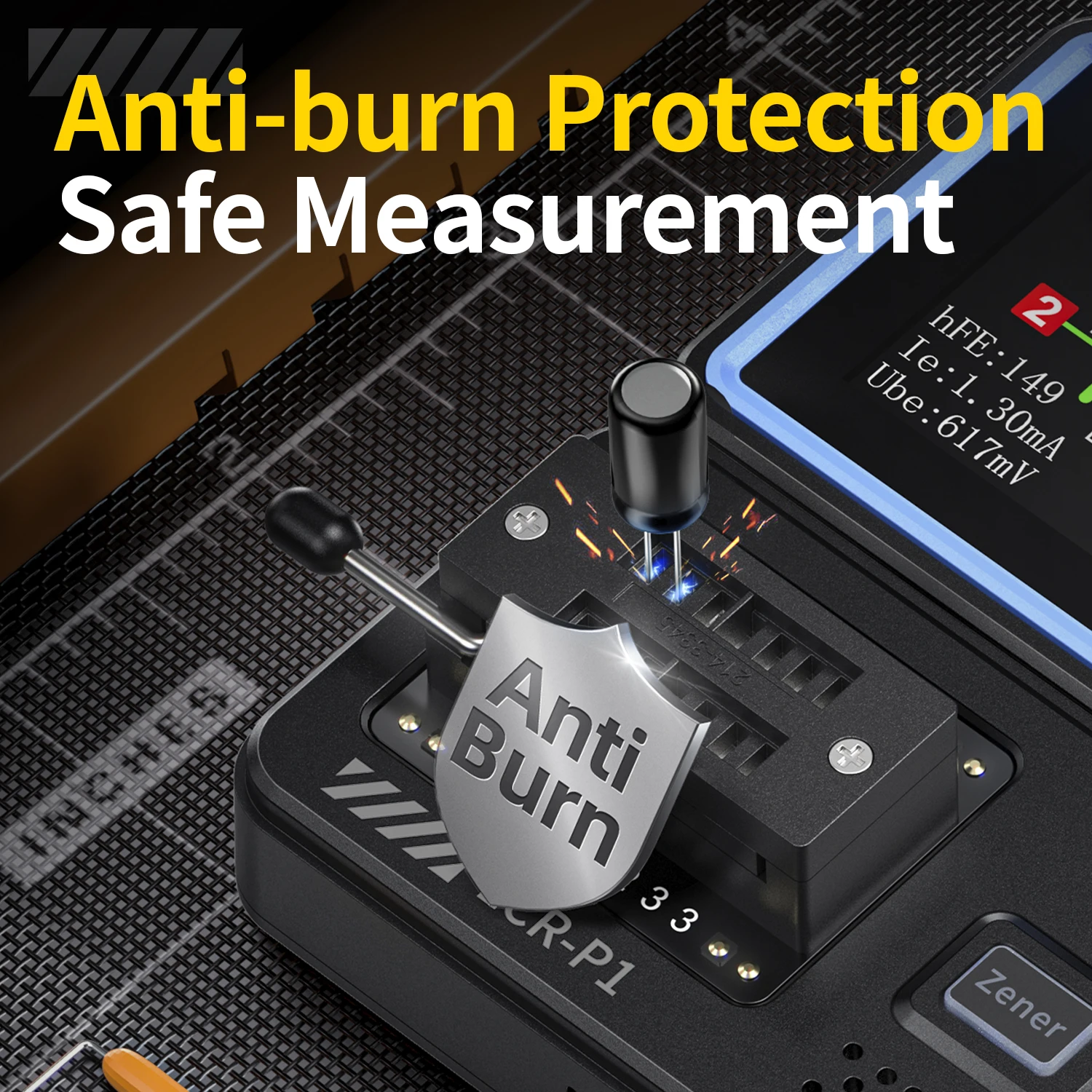

Anti-burn protection

supported

Firmware upgrade

supported

Capacitance

25pF-100mF

Resistance

0.01Ω-50MΩ

Voltage Regulator Diode

0.01-4.5V, 0.01-32V

Field-Effect Transistor

JFET, IGBT, MOSFET

One-way/Bidirectional thyristor

Turn-on voltage Less than 5V, gate trigger current Less than 6mA

Battery Capacity

300mAh lithium battery

Screen Display

1.44 Inch Color Screen

Data Export

supported

Brand Name

FNIRSI

Model Number

LCR-P1

Hign-concerned Chemical

None

Battery Included

Yes
