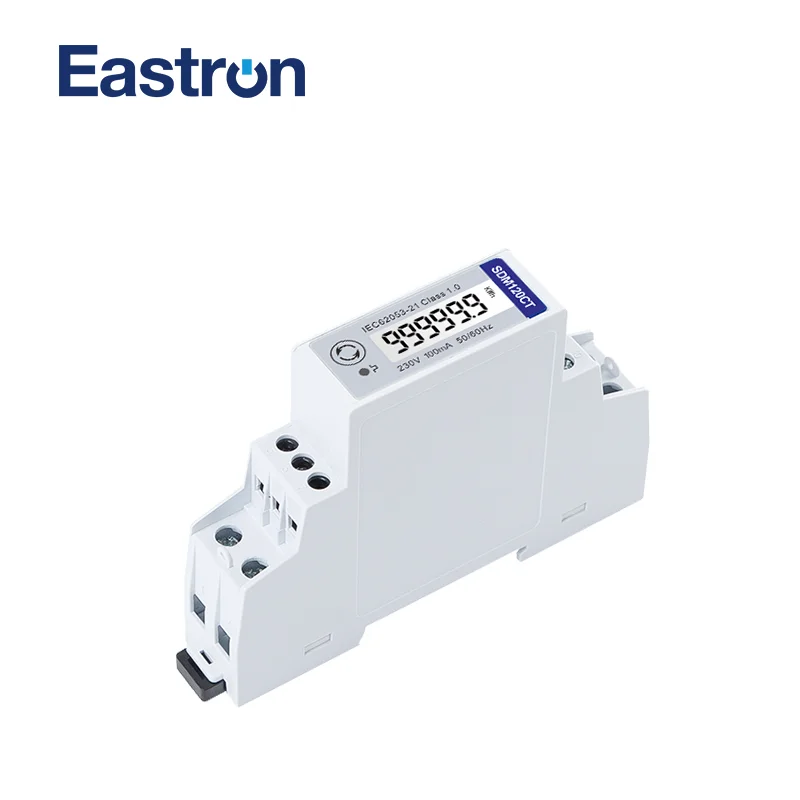

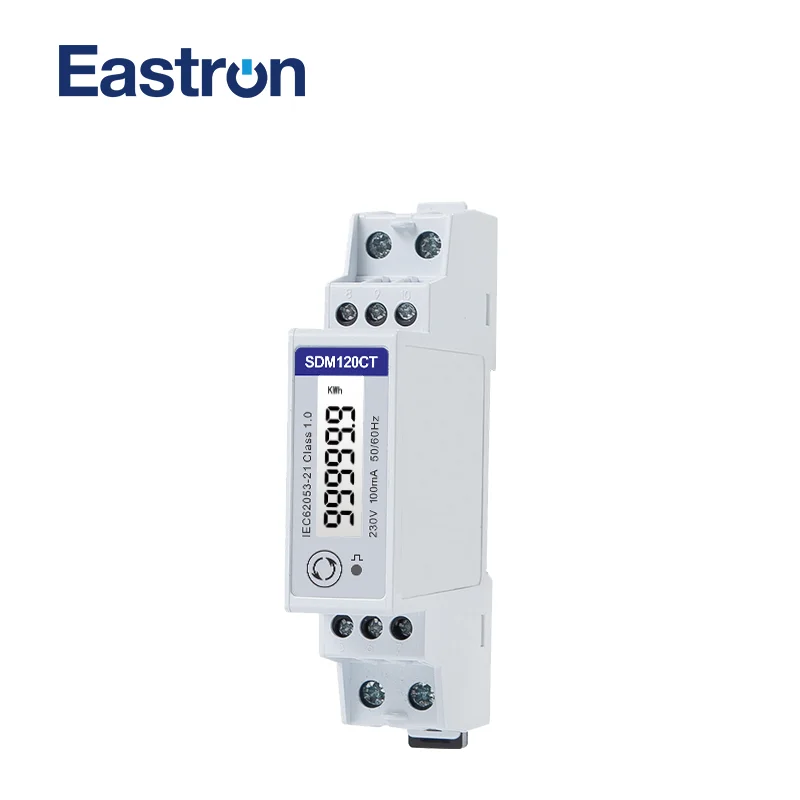

SDM120CT-MV 0.1V input 1 phase 2 wire 230V RS485 Modbus kwh kvarh U I P Q PF Hz dmd DIN rail energy meterCE-A MID energy meter

Reviews | Questions & Answers
AU $98.43
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Brand Name
YISITONG
Hign-concerned Chemical
None
DIY Supplies
ELECTRICAL
Measuring Energy Range
99999.9kwh
Display Type
Digital Only
Output Voltage
220V
Model Number
SDM120CT-MV
Power Supply
AC
Phase
single phase
Rated Voltage
230V
Dimensions
90*67.5*17.5mm
Operating Temperature
-40~70
Accuracy Class
Class 1 IEC62053-21
Max Operating Current
150A & Above
Voltage Range
176~276V AC
Primary Current
5-9999A
Secondary Input
0.1V
Starting current
0.4% of Ib
Power consumption
<2W/10VA
Frequency
50/60Hz(±10%)
AC voltage withstand
4KV for 1 minute
Display
LCD with blue backlit
Overcurrent withstand
30Imax for 0.01s
