High Definition
8.0 Megapixels
Hign-concerned Chemical
None
Supported Operating Systems
Windows 10
Connectivity
IP/Network Wired
Installation
Wall Mounted
Minimum Illumination(Lux)
Color: 0.01 Lux B/W:0.004 Lux @(F2.0, AGC ON) 0 Lux with IR
Video Compression Format
H.264
Movement Range(Tilt)
other
Model Number
PTZ-2804X-I2 HIK Compatible Camera
Supported Mobile Systems
Android
AI Functions
Motion Detection
Special Features
Waterproof / Weatherproof
Power Consumption(W)
< 10 W
Operating Temperature
-10°-60°
Movement Range(Pan)
-10°-180°
1. **Image Sensor Function**
1/2.8" Progressive Scan CMOS
2. **Resolution Function**
3840 x 2160@20fps
3. **Lens Function**
HD 2.8 - 12 mm Motorized lens
4. **Low Illumination Function (Color)**
0.01 Lux @(F2.0, AGC ON)
5. **Low Illumination Function (B/W)**
0.004 Lux @(F2.0, AGC ON), 0 Lux with IR
6. **Video Coding Function**
H.265+, H.265, H.264, MJPEG
7. **Power over Ethernet (PoE) Function**
Support PoE
8. **Image Processing Function (BLC/3D DNR/HLC/WDR)**
BLC/3D DNR/HLC/WDR
9. **Built-in Microphone Function**
Built-in Mic
10. **IP Rating Function**
IP66

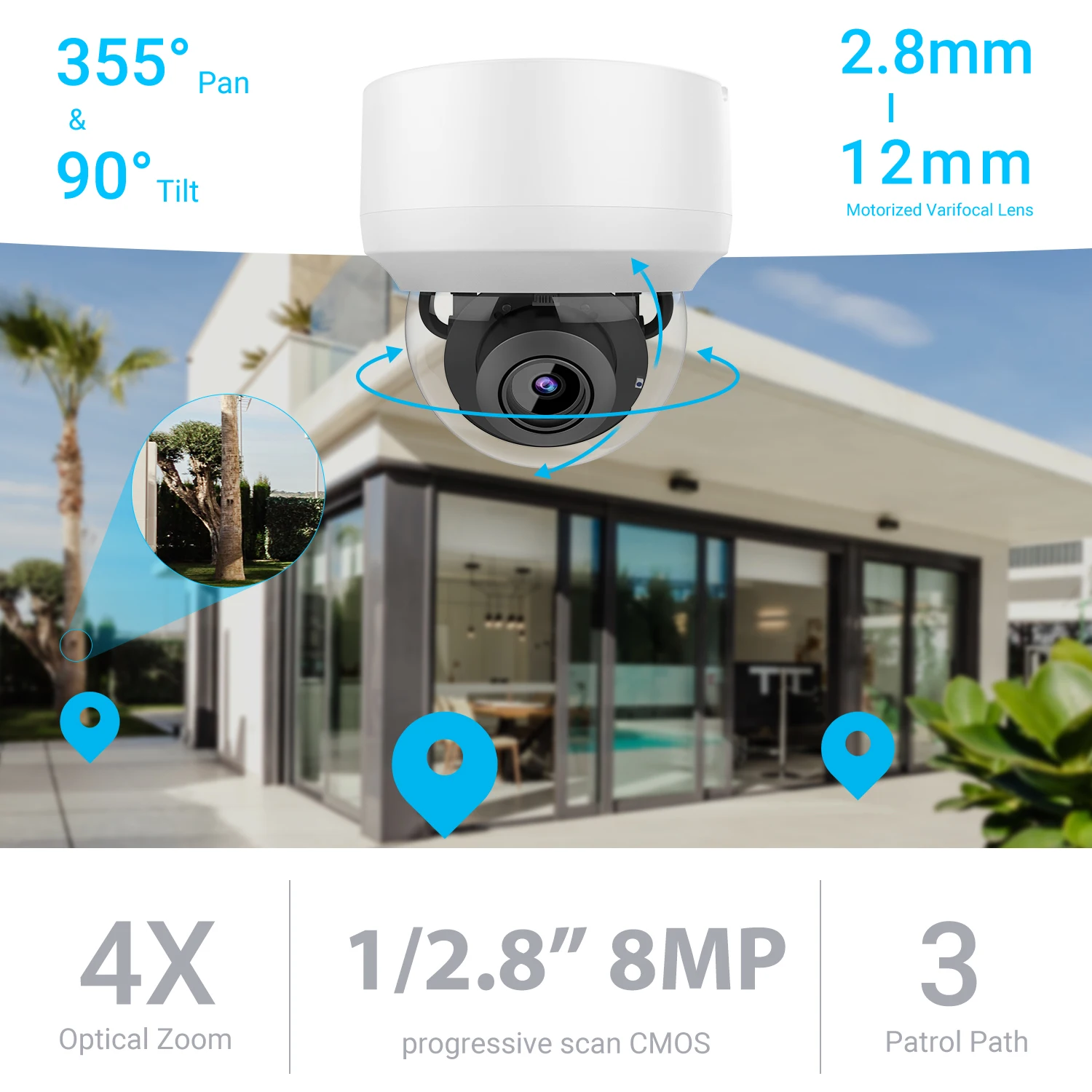

11. **PTZ Movement Range (Pan) Function**
0° to 355°
12. **PTZ Movement Range (Tilt) Function**
0° to 90°
13. **Pan Speed Function**
Configurable, from 0.1°/s to 40°/s. Preset speed: 40°/s
14. **Tilt Speed Function**
Configurable, from 0.1°/s to 40°/s. Preset speed: 40°/s
15. **Proportional Zoom Function**
Yes
16. **Power-off Memory Function**
Yes
17. **Video Compression Function (Main stream)**
Main stream: H.265+, H.265, H.264, MJPEG
18. **Video Compression Function (Sub-stream)**
Sub-stream: H.265+, H.265, H.264, MJPEG
19. **H.265 Profile Function**
Baseline profile/Main profile/High profile
20. **H.265+ Function**
Yes
21. **Basic Event Function**
Motion Detection
22. **Intelligent Detection Function**
Human Detection /Vehicle Detection
23. **IR Distance Function**
30m
24. **IR LED Function**
2PCS
25. **Max Resolution Function**
3840x2160
26. **Main Stream Function**
20fps@8MP(3840 x 2160) 30fps@ (3072 x2048, 2592 x1944, 2560 x 1440, 1920 x 1080)
27. **Sub-Stream Function**
30fps@720 x480 /VGA/640x360/480 x360 /CIF
28. **Image Enhancement Function**
BLC/3D DNR/HLC/WDR
29. **Network Storage Function**
Support Local storage and NFS, NVR, APP Cloud Storage
30. **Network Protocols Function**
TCP/IP/IPV4/IPV6/HTTP/RTSP/NFS/DHCP/NTP
31. **General Function**
Built-in Mic, Privacy Masks, Horizon/Vertical Flip, Password Reset Upgrade
32. **API Function**
ONVIF (Profile S, Profile G, Profile T)
33. **Simultaneous Live View Function**
Up to 20 channels
34. **User/Host Level Function**
3 levels: Administrators, Operators and Users
35. **Client Function**
AjDevTool, Video Link App, LMS
36. **Web Browser Compatibility Function**
IE 8+, Chrome 57.0+, Firefox 52.0+
37. **Network Interface Function**
1 RJ45 10 M/100 M Ethernet, PoE
38. **Power Supply Function**
12V DC
39. **Audio Input Function**
Built-in Mic
40. **Audio Output Function**
N/A
41. **RS485 Function**
N/A
42. **SD Card Slot Function**
N/A
43. **Web Client Language Function**
7 languages: Chinese, English, Russian, German, Italian, Turkish
44. **Power Consumption Function**
12V DC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR) PoE (802.3af), 36 to 57V DC, 0.35 A (Max. 12.2 W, including max. 4.2 W
45. **Working Environment Function**
Temperature: -20°C to 60°C (-4F to 140°F), humidity: ≤ 90%
46. **Protection Level Function**
IP66
47. **Material Function**
Metal
48. **Dimension Function**
Package: 220 x 200 x 145 mm (8.7"x 7.9 x 5.7")
49. **Weight Function**
With Package : Approx. 1.22 kg (2.7 Ib.)
description 1
Dome Camera PTZ
description 2
Outdoor surveillance camera
description 3
Hik compatible
description 4
Security Protection
description 6
smart home camera video surveillance
description 7
camara de seguridad outdoor
description 8
night vision home appliance
