DSLR Camera Field Monitor 5.5 Inch 1000nits Focus Assist HD1920x1080 IPS With HDMI Input Video Camera Monitor Osee T5+

Specifications

Brand Name

OSEE

Hign-concerned Chemical

None

Inbox adaptor

YES

Power Source

AC&DC

Supporting Language

English

Display Size

5.5"

Brightness

1000nits

Contrast

1000:1

Plug Type

UK Plug

HDMI Support Format

others

Model Number

T5+

Aspect Ratio

16:9

Resolution

1920x1080

PPI

400

Color Depth

1.06G

Backlight

Level 1-10

Viewing Angle

160x160

Body

Polycarbonate ABS plastic (with aluminum sheet built-in)

Weight

175g

Dimensions

157.5mmx79mmx20mm

Operating Temp

0-40℃

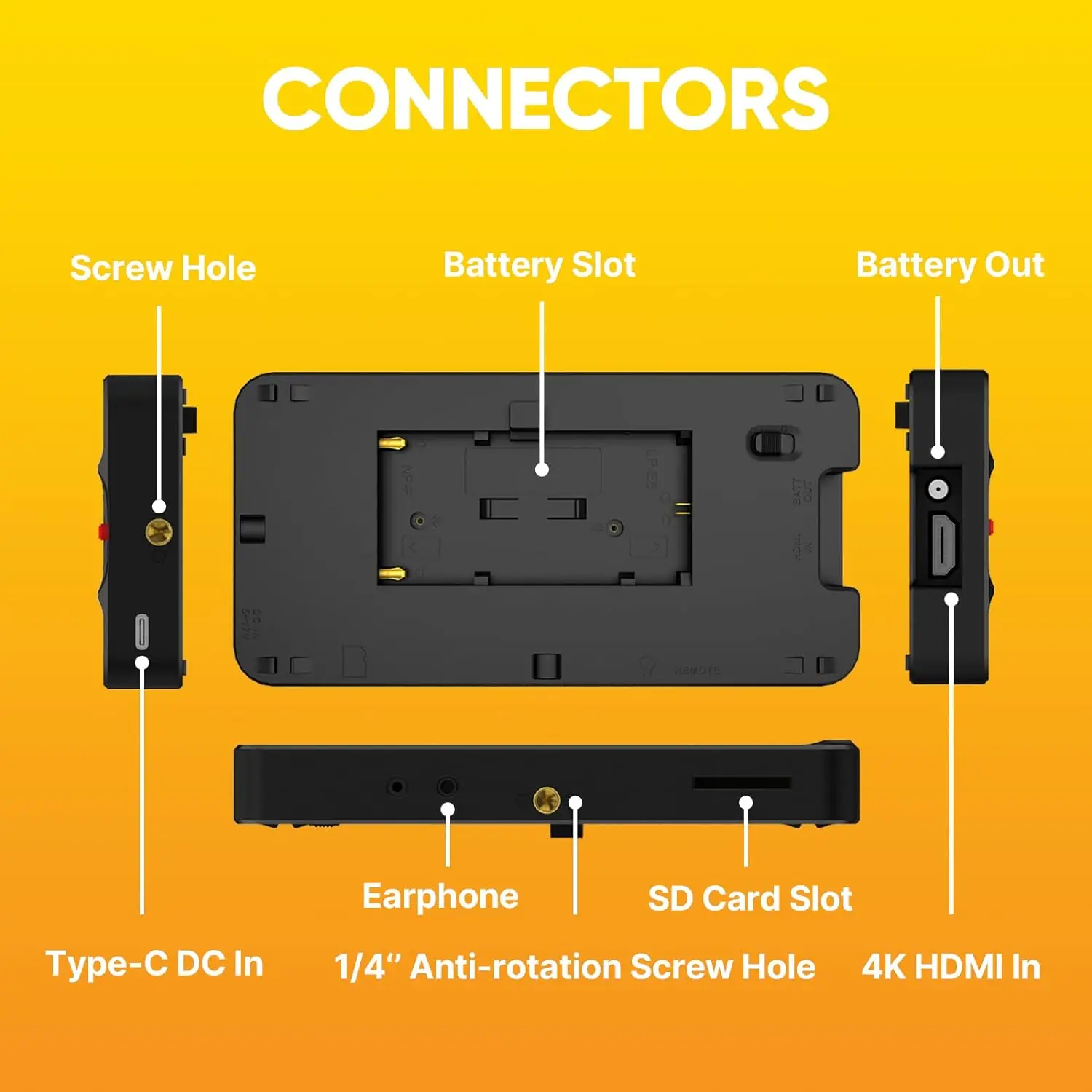

Battery Type

Sony NP-F/Canon LP-E6

Battery In

5-17V

Type-C In

5-17V

Battery Out

5-8.4V

Consumption

5.5W

Signal Input

HDMI 1.4

Signal Format

3840x2160p(30/29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 720p(60/59.94/50) 480i/576i/480p/576p

SD Card Slot

User LUT Upload&Firmware Upgrade (FAT32 format and under 16G size recommended)

Audio Jack

3.5mm

Remote Jack

2.5mm

Volume

Level 0-31

Rotate/Mirror

Rotate (0, 180, auto), Mirror

Probe Location

Set this to let exposure tools analyze before or after User LUT

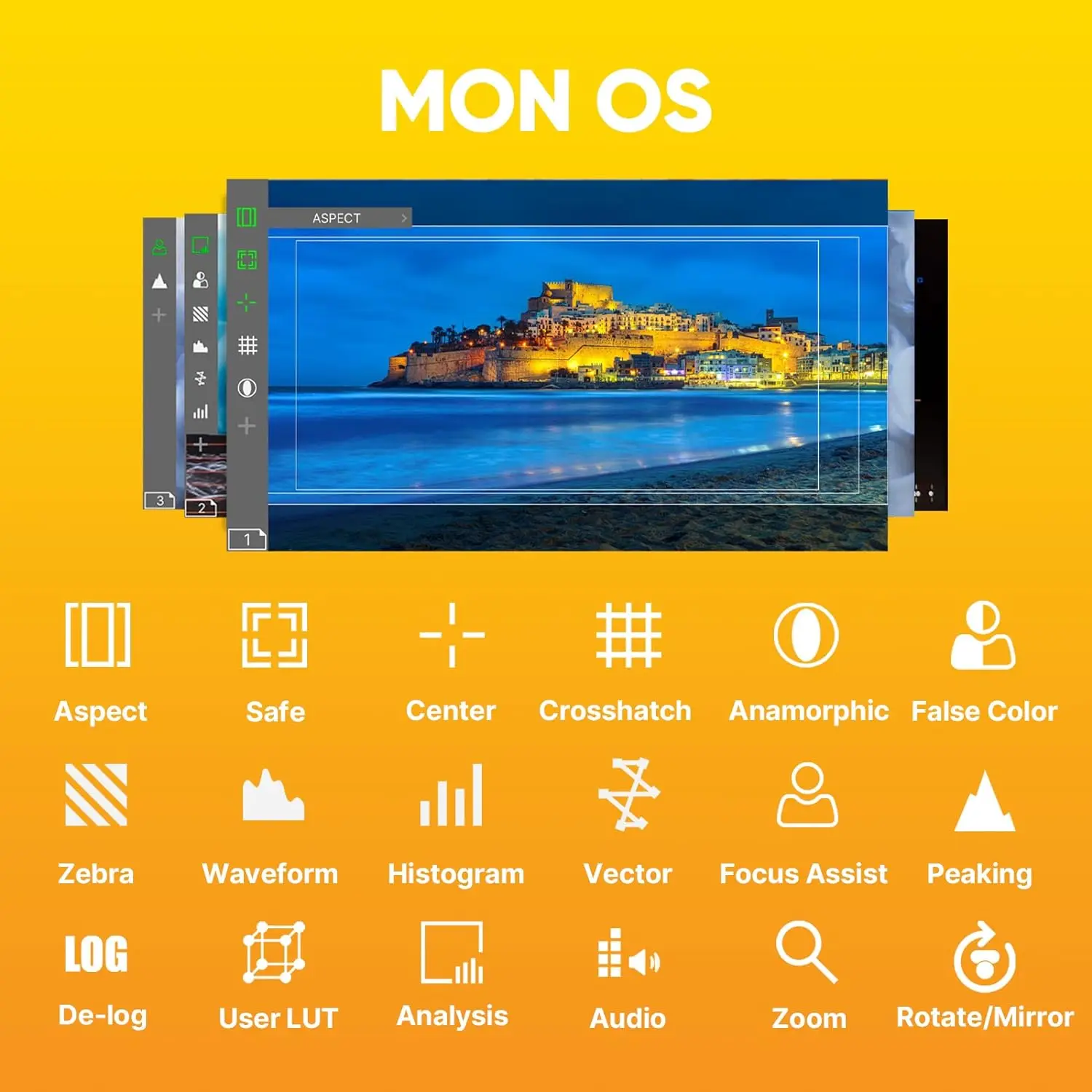

Aspect

9:16 (Phone), 4:5, 1:1, 4:3 (SD TV), 1.375:1 (Cinema), 16:9 (HD TV), 1.85:1 (Cinema), 2.37:1 (Cinema), custom(1:3 - 3:1)

Safe

Action&Title

Center

Cross/Hollow

Crosshatch

2x2, 3x3 ... 9x9

Anamorphic

1.33X, 1.4X, 1.5X, 1.6X, 1.8X, 1.9X, 2X with magnify function

False Color

Spectrum/Follow camera/Custom

Zebra

Custom tone 1 and tone 2

Waveform

Luma/RGB/Parade style, location, opacity&density adjustable

Histogram

Luma/RGB style, location, opacity&density adjustable

Vector Scope

Location, opacity&gain adjustable

Focus Assist

White Red Green Blue B&W background available

Peaking

Intensity 1-10

De-log

HLG, PQ, Arri, BMD, Canon, Fuji, JVC, Nikon, Panasonic, RED, Sony

User LUT

Up to 10 user LUTs can be uploaded, support LUT intensity adjustment

Audio Meter

Location&opacity adjustable

Multi-scopes

Waveform, histogram, vector scope and audio meter around scaled image

Description

DSLR Camera Field Monitor 5.5 Inch 1000nits Focus Assist HD1920x1080 IPS With HDMI Input Video Camera Monitor Osee T5+
