2G RTU5024 GSM Gate Opener Relay Wireless Remote Door Access Switch Free Call Door Access Control Switch Wireless Door Opener

Product Features

This 2G RTU5024 GSM gate opener relay is a wireless remote door access switch, offering free calls and control, suitable for smart home applications.
With a DC power supply of 9-24V DC/2A and a 50Ω SMA antenna interface, this switch can operate in a wide range of environments.
Designed to support 3V SIM cards and with a quad-band GSM frequency of 850/900/1800/1900MHz, this switch provides reliable wireless communication.

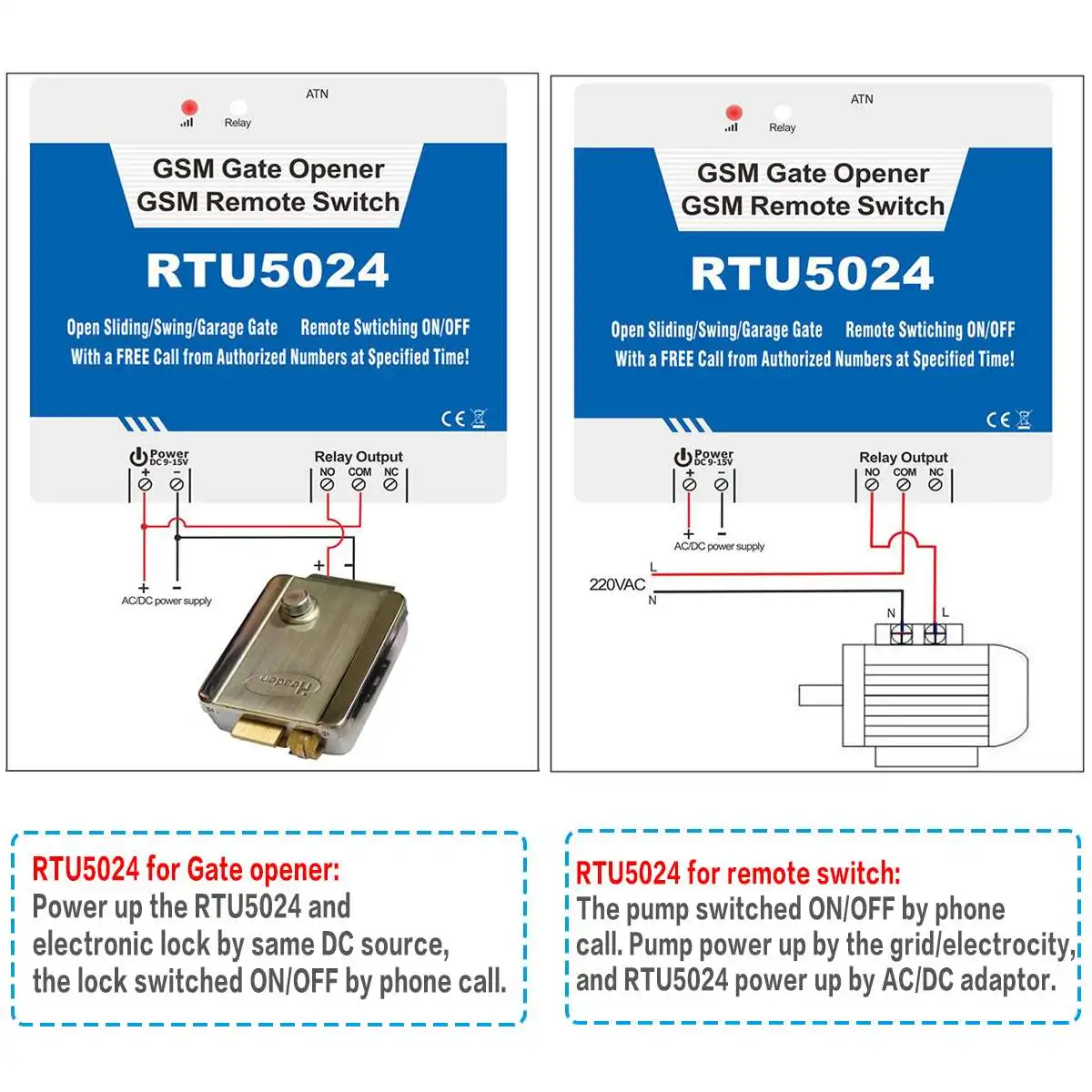

It has a digital output of NC/NO dry contact, 3A/240V AC, and can support up to 200 users, making it suitable for various access control needs.
With an exterior dimension of W82mm*D76mm*H27mm and a temperature range of-20~+60℃, this switch is compact and durable, ensuring long-term use.

Specifications

Brand Name

Scimagic-RC

Hign-concerned Chemical

none

Smart home platform

none

Model Number

RTU5024

Gigital Output

NC/NO dry contact, 3A/240V AC

DC Power Supply

9-24V DC/2A

Antenna

50Ω SMA Antenna Interface

GSM Frequency

Quad-band 850/900/1800/1900MHz

Power Consumption

12V Input Max.50mA/Average 25mA

Users

200

SIM Card

Support 3V SIM Card

Temperature Range

-20~+60℃

Humidity Range

Ralative Humidity 90%

Exterior Dimension

W82mm*D76mm*H27mm

semi_Choice

yes

Description

2G RTU5024 GSM Gate Opener Relay Wireless Remote Door Access Switch Free Call Door Access Control Switch Wireless Door Opener
