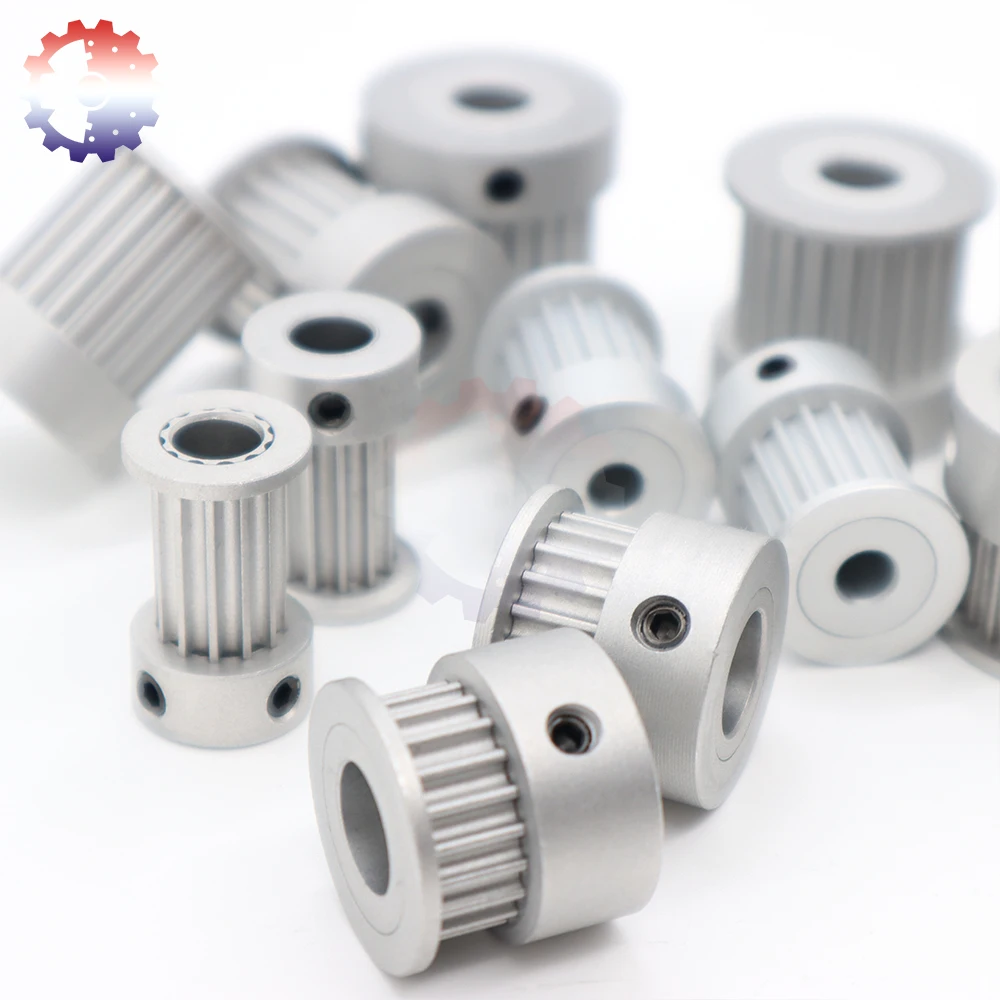

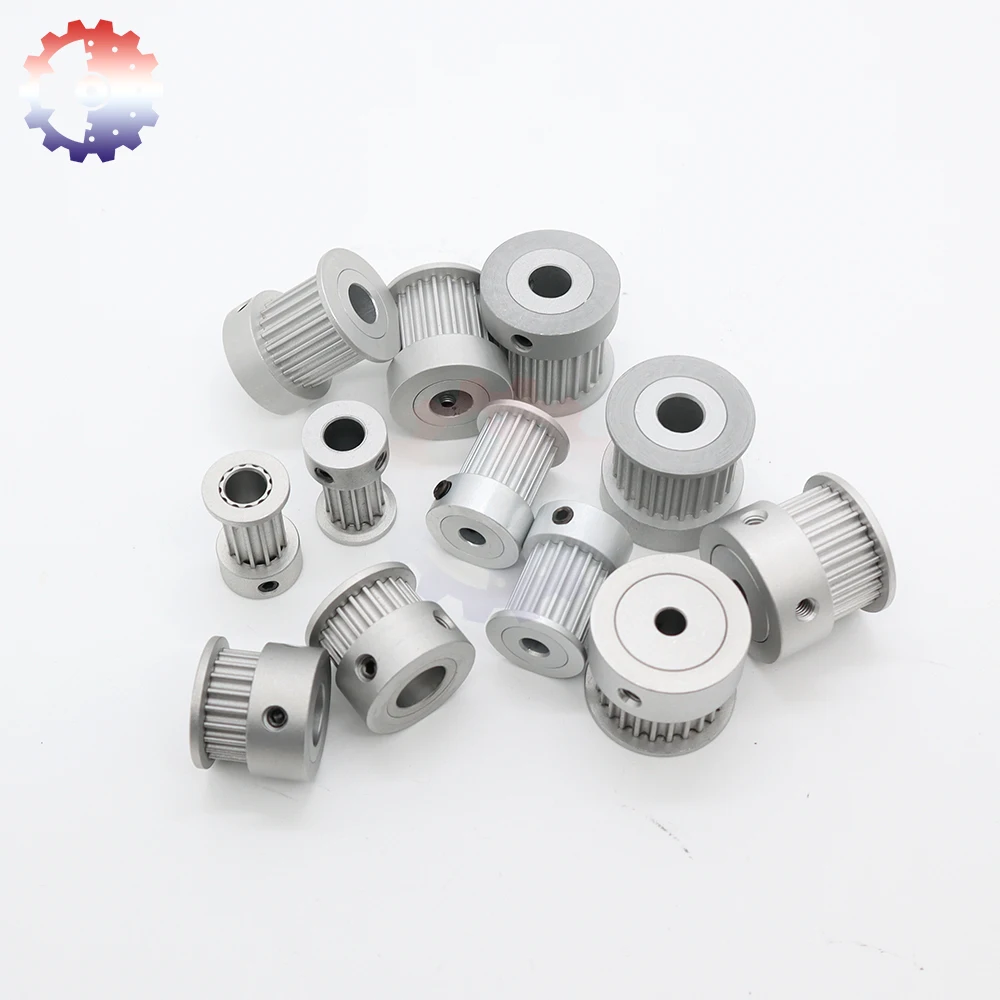

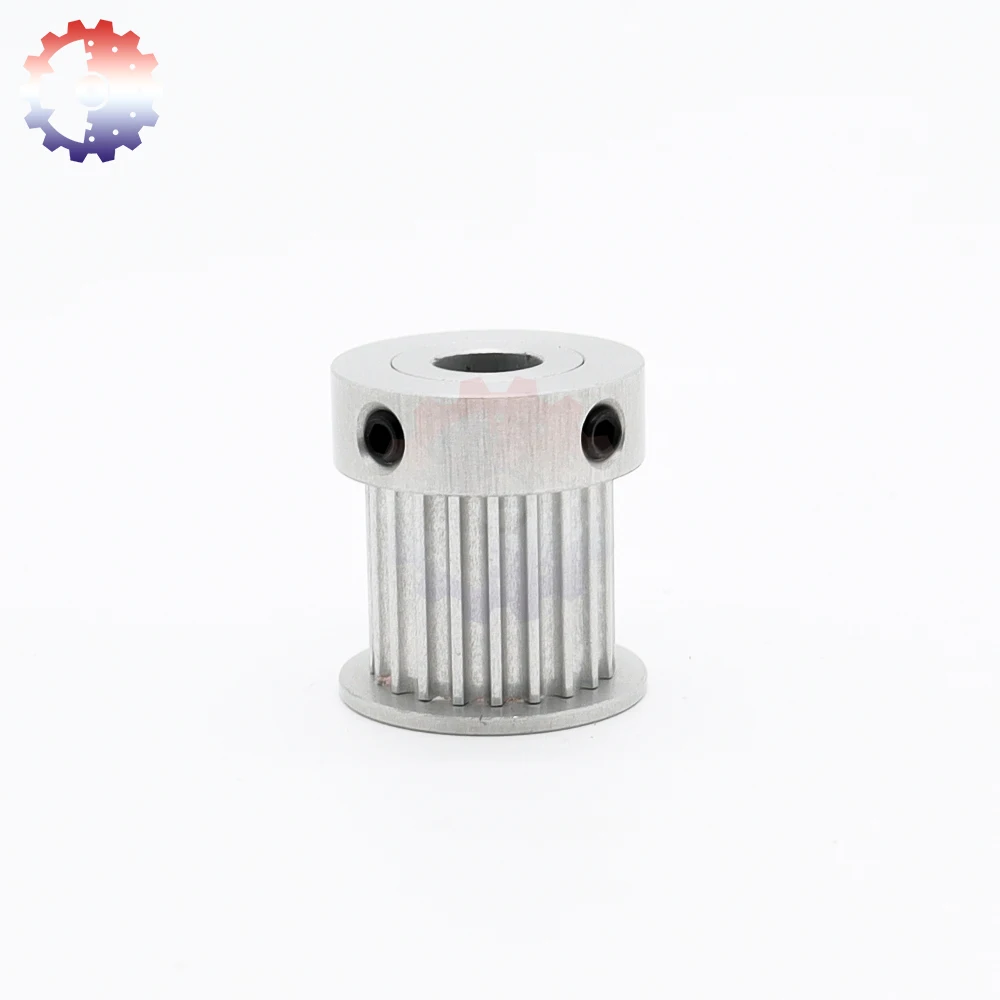

HTD3M Timing Pulley 12T 15T 16T 20T 24T 3M Pulleys 12Teeth 15Teeth 16Teeth 20Teeth 24Teeth HTD3M Gear HTD 3M Synchronous Wheel windshield wiper motor gear

Product Features

The HTD3M timing pulley is made of aluminum alloy, which has good mechanical properties and is lightweight, suitable for various transmission applications.
With multiple tooth numbers available, such as 12T, 15T, 16T, 20T, 24T, it can meet different transmission ratio requirements.
The 3mm tooth pitch ensures accurate and stable transmission, reducing vibration and noise during operation.
The neoprene plane has good oil resistance, heat resistance, and aging resistance, prolonging the service life of the pulley.
It can be customized, allowing users to choose the bore size, belt width, etc. according to their specific needs.

Specifications

Product Name

HTD3M Timing Pulley

Product type

K-type

Product material

aluminum alloy

Tooth pitch

3mm

Bore

3/3.17/4/5/6/6.35/7/8/10/12/12.7/14/15mm

For belt width

6/10/15mm

Number of teeth

12T / 15T / 16T / 20T / 24Teeth

Neoprene plane

good oil resistance, heat resistance and aging resistance

Glass fiber tension

It has high strength, good resistance to bending, and low elongation

Tooth surface nylon cloth

It has the wear resistance and shear strength of teeth

Model Number

HTD 3M

Type

Timing

Material

ALLOY

Hign-concerned Chemical

none

Number of Teeth

Description

HTD3M Timing Pulley 12T 15T 16T 20T 24T 3M Pulleys 12Teeth 15Teeth 16Teeth 20Teeth 24Teeth HTD3M Gear HTD 3M Synchronous Wheel windshield wiper motor gear
