High Torque Clock Mechanism Silent for Large 3d Timepiece Wall Watches Long Spindle Quartz Movement Clockwork 227S quartz clock mechanism

Product Features

High torque for large 3D timepiece wall watches, ensuring accurate and stable timekeeping. The silent movement creates a peaceful environment.
With a geometric shape and modern style, it adds a touch of elegance to any living room. The single-face design is simple yet stylish.
Quartz movement provides precise timekeeping with an accuracy of 1 sec/day at 1.5V and 23. It operates within a wide temperature range of -10 to 50.
The plastic body material makes it lightweight and durable. The combination of separate parts allows for easy installation.
Comes with a 32.768kHZ crystal oscillator and a power type of 1.5V AA size carbon battery (not included). It has an output torque of 36 gf.cm for the minute hand.

Specifications

Brand Name

MCDFL

Hign-concerned Chemical

None

Is Smart Device

Battery Included

Shape

Geometric

Feature

Loudspeaker Mute

Applicable Placement

LIVING ROOM

Display Type

Needle

Style

Modern Style

Model Number

MCDFL I Shaft Clock Movements 227S

Motivity Type

Quartz

Type

Wall Clocks

Wall Clock Type

other

Body Material

Plastic

Material

other

Form

Single Face

Combination

separates

19 mm Shaft Length

Shaft Length: 19 mm (0.75 inch), Thread Length: 6 mm (0.24 inch)

21 mm Shaft Length

Shaft Length: 21 mm (0.83 inch), Thread Length: 9 mm (0.35 inch)

23 mm Shaft Length

Shaft Length: 23 mm (0.91 inch), Thread Length: 11 mm (0.43 inch)

26 mm Shaft Length

Shaft Length: 26 mm (1.02 inch), Thread Length: 15 mm (0.59 inch)

31 mm Shaft Length

Shaft Length: 31 mm (1.22 inch), Thread Length: 21 mm (0.83 inch)

36 mm Shaft Length

Shaft Length: 36 mm (1.42 inch), Thread Length: 23 mm (0.91 inch)

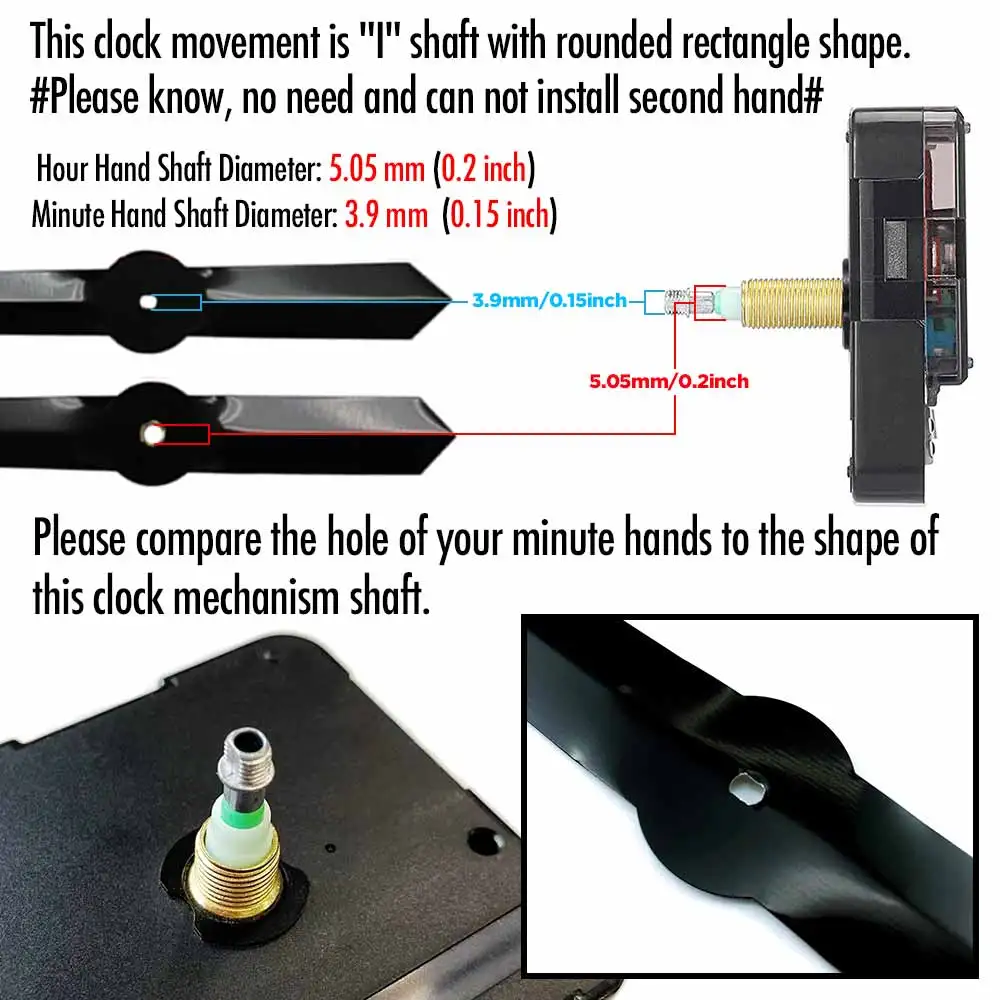

Hour Hand Shaft Diameter

5.05 mm (0.20 inch)

Minute Hand Shaft Diameter

3.90 mm (0.15 inch)

Thread Diameter

7.8 mm (0.31 inch)

Motion

Sweep Silent Movement

Crystal Oscillator

32.768kHZ

Time Keeping Accuracy

±1 sec/day at 1.5V, 23℃

Operating Temperature Range

-10℃~ 50℃ (14℉~122℉ )

Operating Voltage

DC 1.3V~1.7V

Output Torque of Minute Hand

36 gf.cm over/at 1.5V

Power Type

1.5V AA size (IEC R6) Carbon Battery (Not Included)

Description

High Torque Clock Mechanism Silent for Large 3d Timepiece Wall Watches Long Spindle Quartz Movement Clockwork 227S quartz clock mechanism
