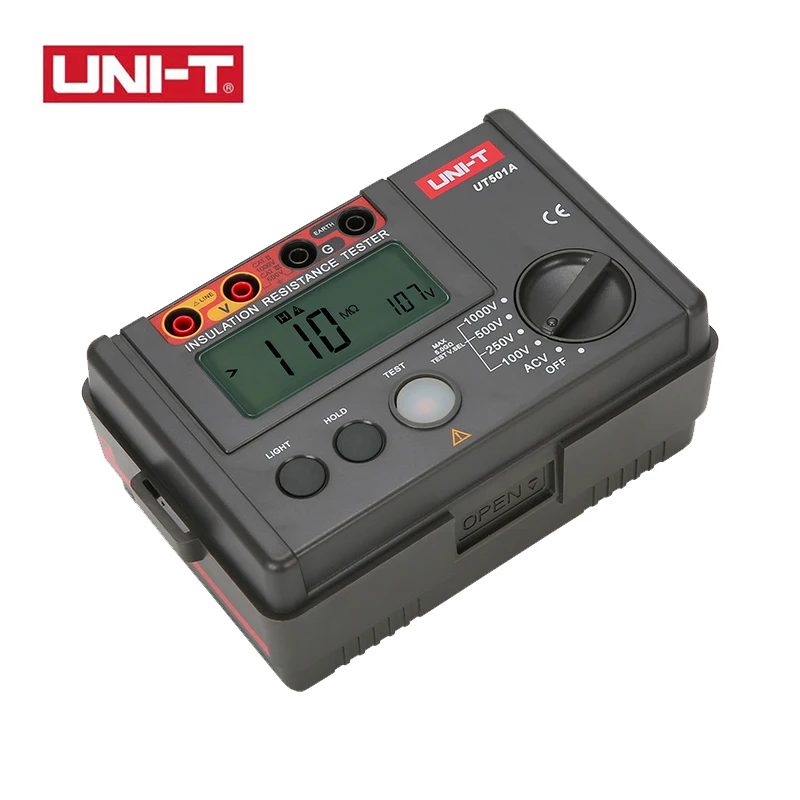

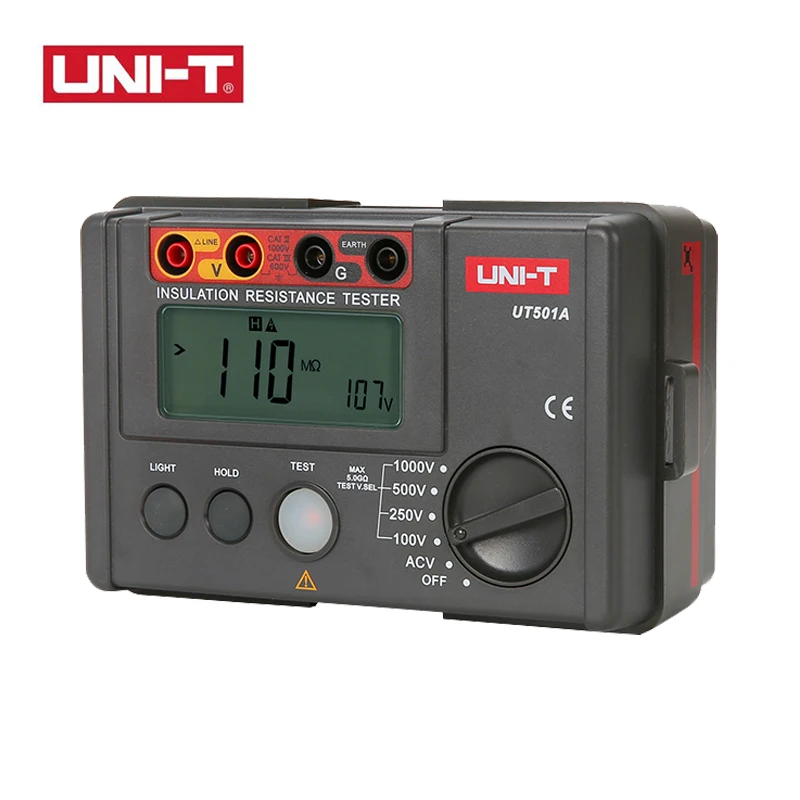

UNI-T UT501A Insulation Resistance Tester 1000V Megohmmeter 5GΩ Ohm Meter

Product Features

The UNI-T UT501A insulation resistance tester offers a measuring range of 5.5GΩ and a testing voltage of 1000V, providing accurate and reliable insulation resistance measurements.
With a digital display type, it shows measurement results clearly and precisely, making it easy to read and record.
Originating from Mainland China, it meets weee certification standards, ensuring its environmental friendliness and quality.
It has various useful features such as auto-range, low-voltage display, LCD backlight, and light and buzzer alarms, enhancing its usability and safety.
The tester is designed with a compact size of 150x100x71mm, making it portable and convenient for on-site electrical testing.

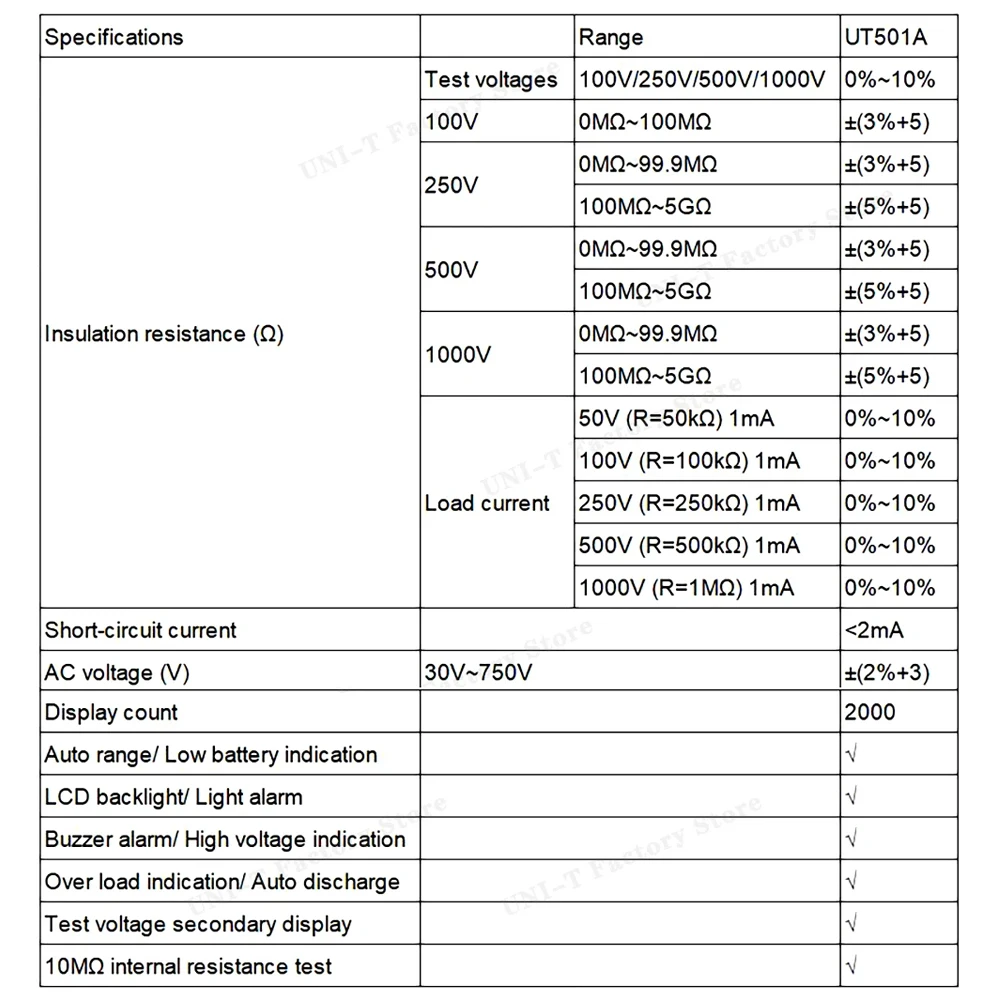

Specifications

Brand Name

UNI-T

Battery Included

Hign-concerned Chemical

None

DIY Supplies

Electrical

Model Number

UT501A

Measuring Range

5.5GΩ

Dimensions

150x100x71mm

Testing Voltage

1000V

Accuracy Class

High-precision

Display Type

Digital

Output voltage:

100V/250V/500V/1000V

Test current:

V(R=)1mA

Short-circuit current:

<2mA

AC voltage:

750V

Maximum display:

1999

Auto range:

Yes

Low voltage display:

Yes

LCD backlight:

Yes

Light alarm:

Yes

Buzzer alarm:

Yes

High voltage indication:

Yes

Overload indication:

Yes

Automatic discharge:

Yes

Test voltage display:

Yes

10MΩ internal resistance test:

Yes

Description

UNI-T UT501A Insulation Resistance Tester 1000V Megohmmeter 5GΩ Ohm Meter
