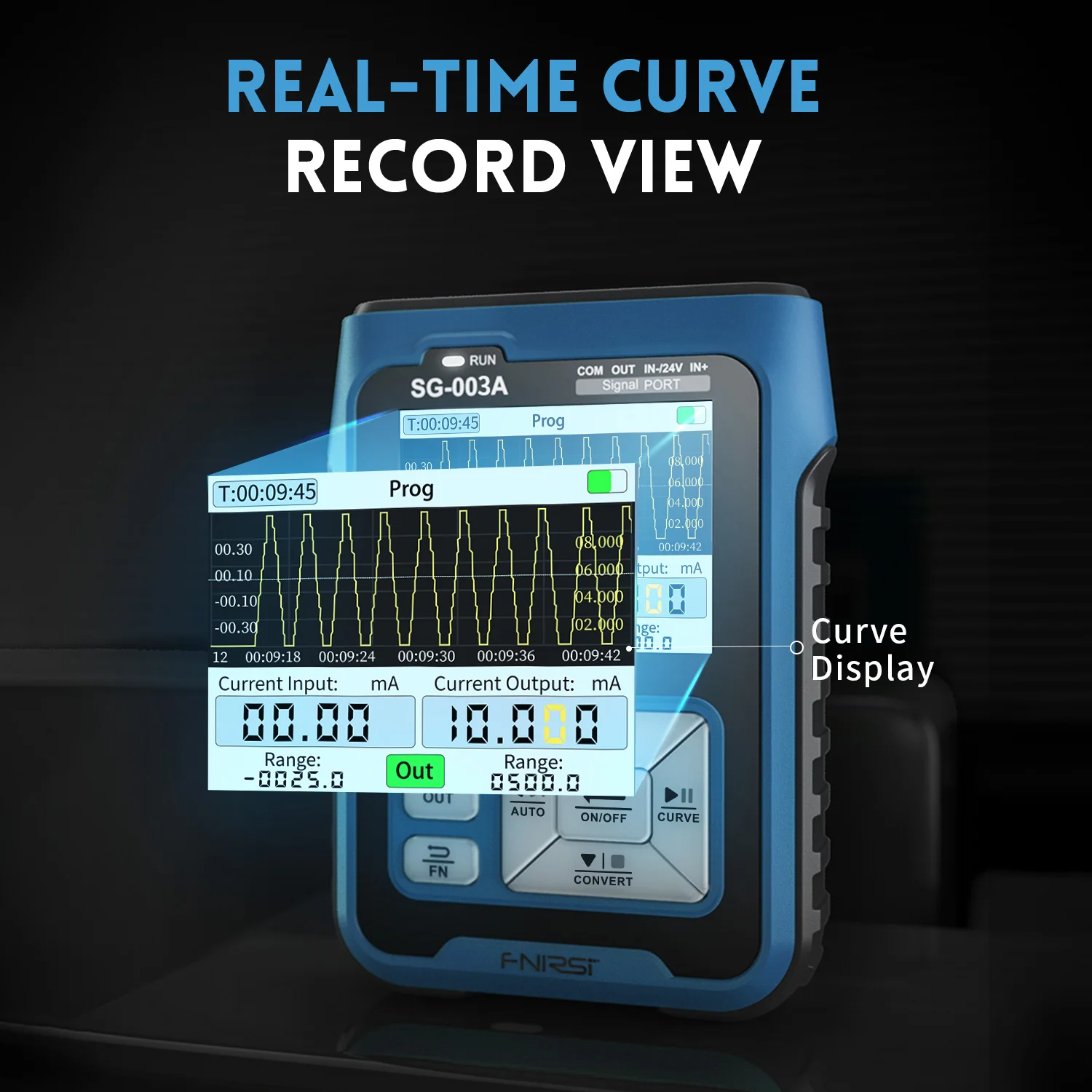

FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator Transmitter Calibrator

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $262.96 ~ 413.80
Price includes 10% AU GST

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This FNIRSI SG-003A adjustable current voltage simulator, with a 2.0-inch display, offers a wide range of functions for electrical calibration.
  • It has an active current output range of 0-24mA with a resolution of 0.01mA, providing accurate and precise measurements.
  • With a battery included and CE certification, this signal generator transmitter is a reliable tool for DIY electrical projects.
  • Designed for electrical DIY supplies, it can simulate various current and voltage signals, meeting different calibration needs.
  • Made in Mainland China, this simulator has a compact size of 112mm*82mm*27mm, making it easy to carry and use.
Specifications
Brand Name
FNIRSI
Hign-concerned Chemical
None
DIY Supplies
Electrical
Battery Included
Yes
Display Size
2.9 Inches & Under
Model Number
SG-003A
Display size
2.0 Inches
Active current output range
0~24mA
Active current output resolution
0.01 mA
Active current output maximum load
750Ω
Active current output Precision
±(0.1%+0.005)
Passive current output range
0-24 mA
Passive current output resolution
0.01 mA
Passive current output
external power supply Up to 30V
Passive current output Precision
±(0.1%+0.005)
Voltage output range
0-24 V
Voltage output resolution
0.01v
Voltage output maximum current
30mA
Voltage output Precision
±(0.1%+0.005)
24V voltage output drive current
24mA
24V voltage output resolution
0.01 mA
24V voltage output Precision
±(0.1%+0.005)
Current input measurement range
0-24 mA
Current input measurement resolution
0.01 mA
Current input measurement
input impedance 100Ω
Current input measurement Precision
±(0.1%+0.05)
Voltage input measurement range
0-30 V
Voltage input measurement resolution
0.01 V
Voltage input impedance
2MΩ
Voltage input measurement Precision
±(0.1%+0.05)
PWM output (frequency) Range
0-9999Hz
3000mAh
3000mAh
Operating environment
0 °C - 50 °C.
Size
112mm*82mm*27mm
