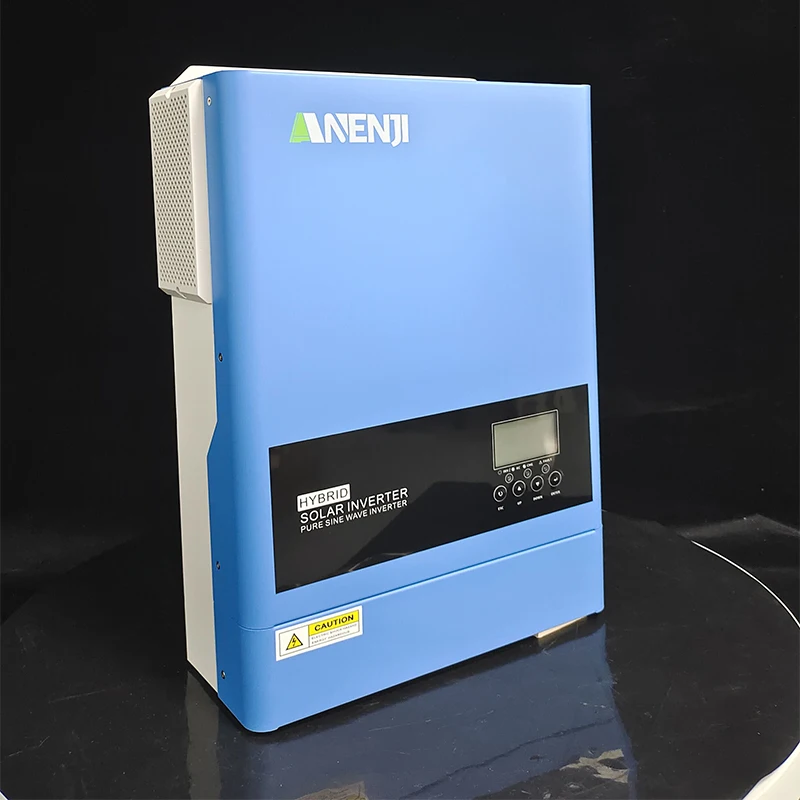

6.2KW Hybrid Solar Inverter 230V 48V Pure Sine Off Grid On Grid Inversor 120A MPPT Solar Charge Controller for PV Panels

Product Features

This 6.2KW hybrid solar inverter with a 120A MPPT solar charge controller supports lithium battery activation function, offering high-efficiency power conversion for PV panels.
With a rated power of 6500VA/6200W and a pure sine wave output, it can provide stable power for home appliances within a 90-280VAC voltage range.
The inverter has a fast transfer time of 20ms for home appliances, and its maximum efficiency of 98% ensures energy-saving operation.
It comes with communication interfaces like RS232/RS485, GPRS/WIFI, and can operate in a wide temperature range from-10℃ to 55℃.

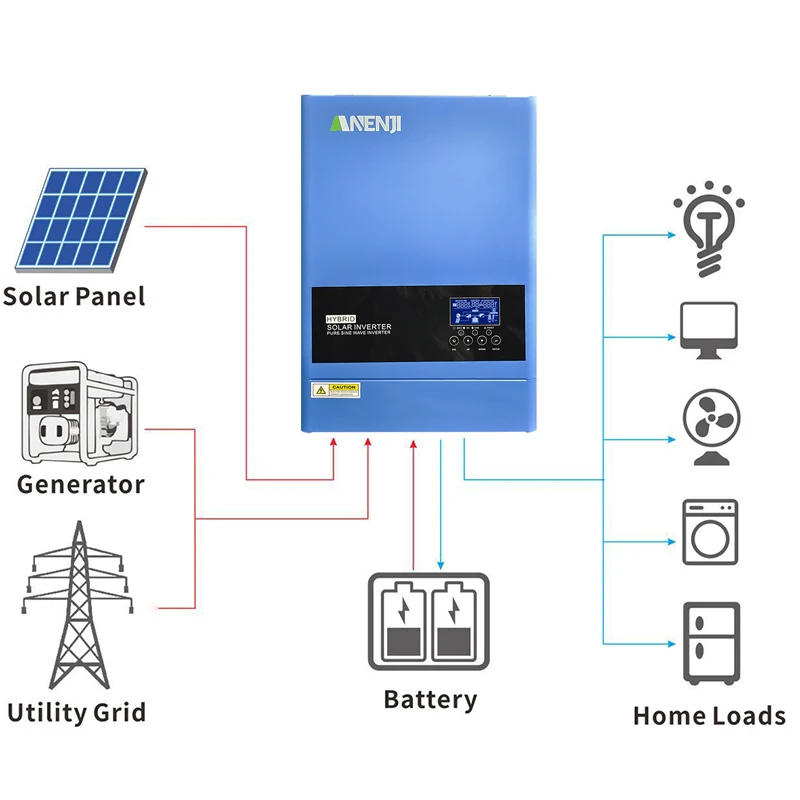

With a size of 43.8X29.5X10.5CM and a weight of 9.8KG, this inverter is suitable for both off-grid and on-grid applications, providing reliable power supply.

Specifications

Brand Name

ANENJI

Hign-concerned Chemical

None

Size

43.8X29.5X10.5CM

Output Frequency

50/60HZ Auto sensing

Output Type

SINGLE

Output Current

120A

Output Power

1 - 200KW

Weight

9.8KG

Is Smart Device

Yes

Model Number

ANJ-6200W-48V-WIFI

Rated Power

6500VA/6200W

Input Voltage

230VAC

Acceptable Voltage Range

90-280VAC(For home appliances)

Frequency Range

50/60HZ Auto sensing

Output AC Voltage Regulation(Batt.Model)

230VAC±5%

Surge Power

6500VA

Transfer Time

20ms(For Home Appliances)

Wave Form

Pure sine wave

Battery Voltage

48VDC

Floating Charge Voltage

54VDC

Overcharge Protection

61VDC

Maximum charge current

120A

Maximum PV Array Power

6500W

MPPT Range operation Voltage

60-500VDC

Maximum PV Array Open Circuit Voltage

500VDC

Maximum Solar Charge Current

120A

Maximum Efficiency

98%

Dimension,D*W*H

438x295x105mm

Net Weight

9KG

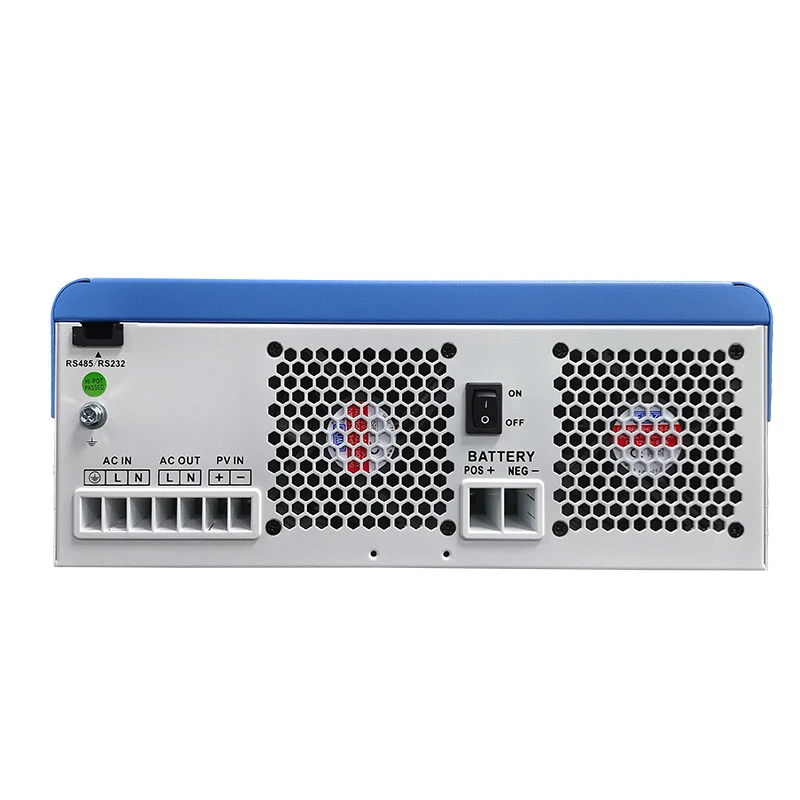

communication interface

RS232/RS485(Standard)GPRS/WIFI

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operation Temperature

-10℃-55℃

Storage Temprature

-15℃-60℃

Features

Support lithium battery activation function

Description

6.2KW Hybrid Solar Inverter 230V 48V Pure Sine Off Grid On Grid Inversor 120A MPPT Solar Charge Controller for PV Panels
