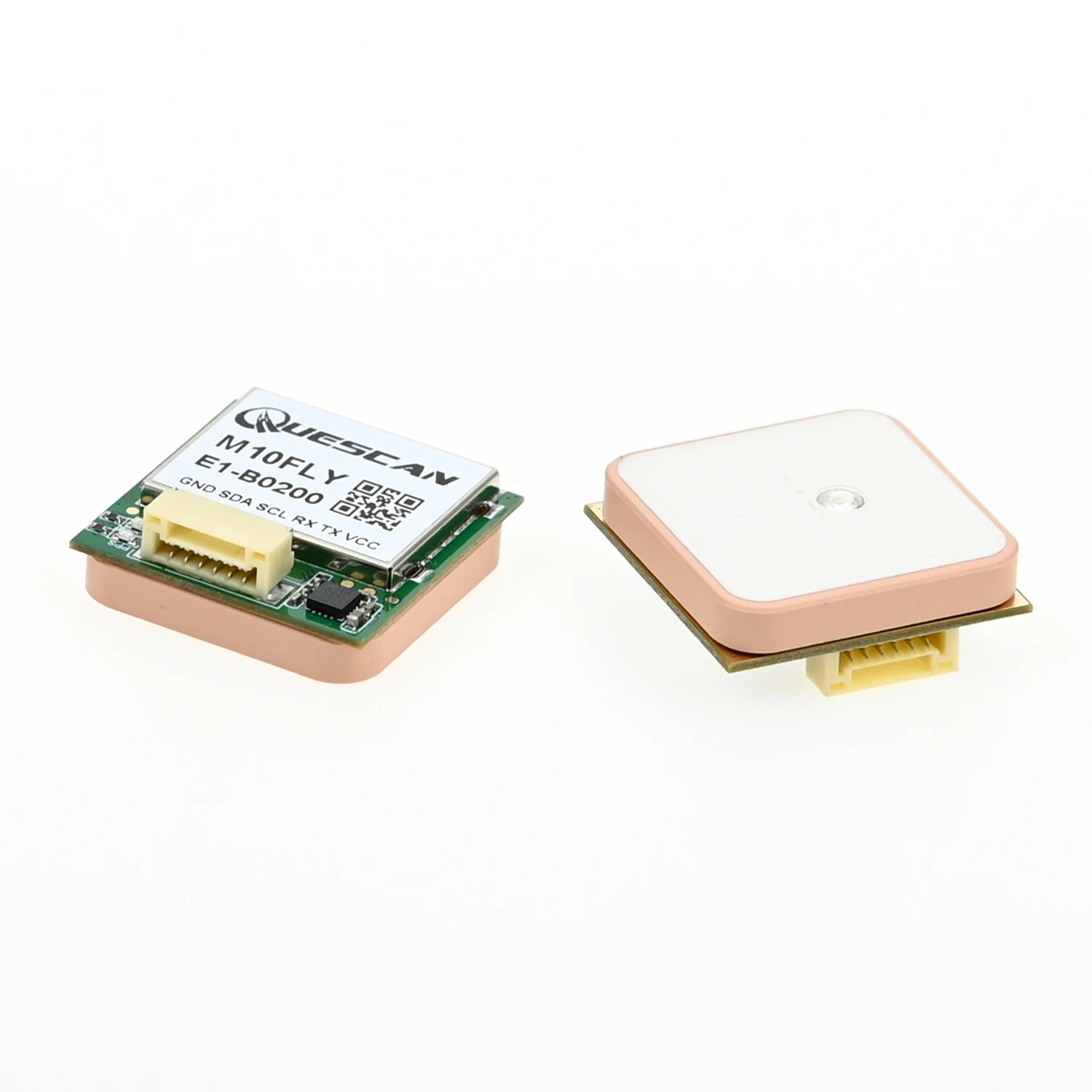

GPS Antenna GPS Receiver 10Hz M10 GPS Module with Compass 5883 GPS Galileo GLONASS Beidou for RC Airplane FPV INAV BF APM PIX Flight Controller

Product Features

This GPS antenna and receiver module, the M10, with a compass, supports GPS, Galileo, GLONASS, and Beidou. It has a 1.5m CEP positioning accuracy and a 1-25Hz nav update rate.
As a GPS device for RC airplanes and flight controllers, the M10 module is powered by DC 3.3V-5V and has a 23s cold-start time.
Designed for FPV and INAV systems, this GPS module uses the UBX-M10050-KB chipset and supports flash memory, providing reliable navigation.
This GPS antenna and receiver combination, the M10, offers high-precision positioning and multiple satellite system support for flight-related applications.
With its support for multiple GNSS platforms, fast start-up times, and high-precision positioning, this M10 GPS module is an excellent choice for RC aircraft and flight controllers.

Specifications

Brand Name

QUESCAN

Hign-concerned Chemical

none

Model Name

M10

GPS type

Receiver & Antenna

GNSS platform

GPS GLONASS Galileo BeiDou QZSS SBAS

Chipset

UBX-M10050-KB

flash memory

Support

Number of concurrent GNSS

Positioning accuracy

1.5m CEP

Nav update rate

1-25Hz

Cold start

23s

Hot start

Protocol

NMEA0183/UBX

Interface

GPS Uart TTL/ Compass I2C

Power

DC 3.3V-5V

Baudrate

4800-921600bps.Default 38400

Connector type

1.25mm 6pins

Description

GPS Antenna GPS Receiver 10Hz M10 GPS Module with Compass 5883 GPS Galileo GLONASS Beidou for RC Airplane FPV INAV BF APM PIX Flight Controller
