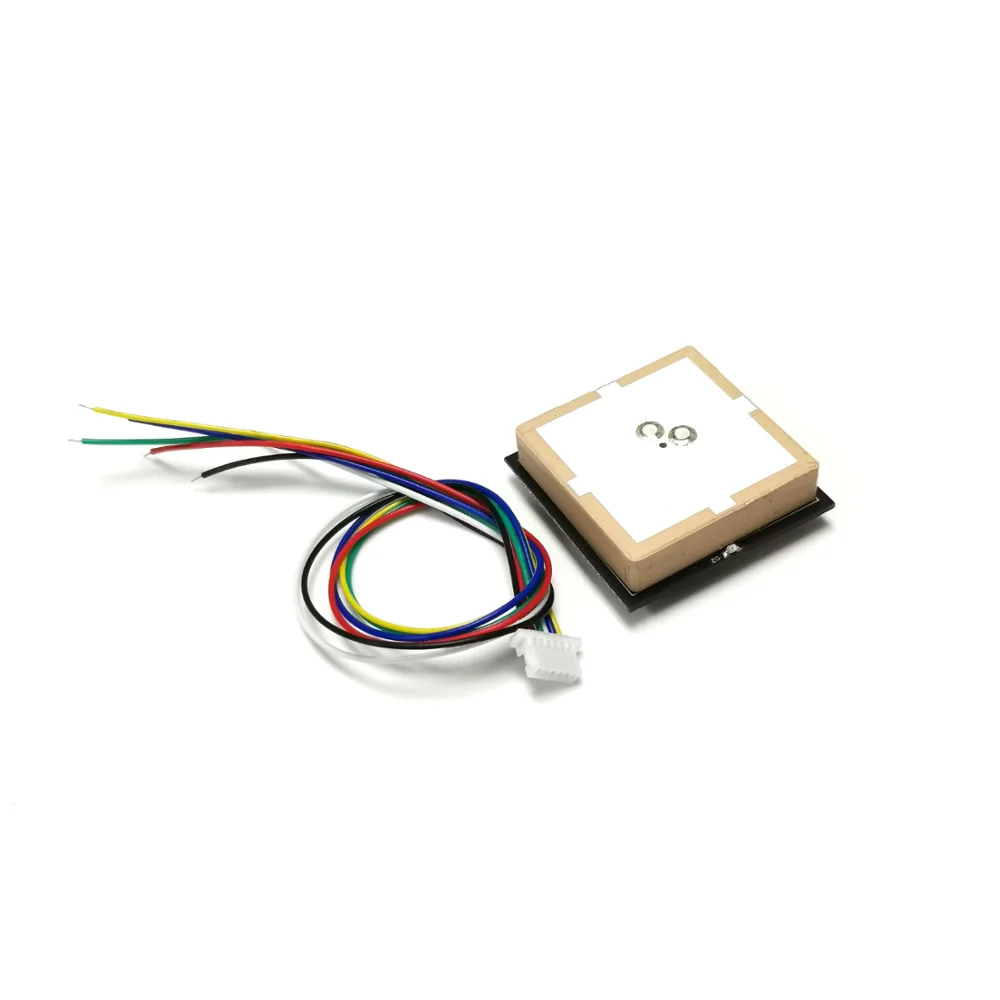

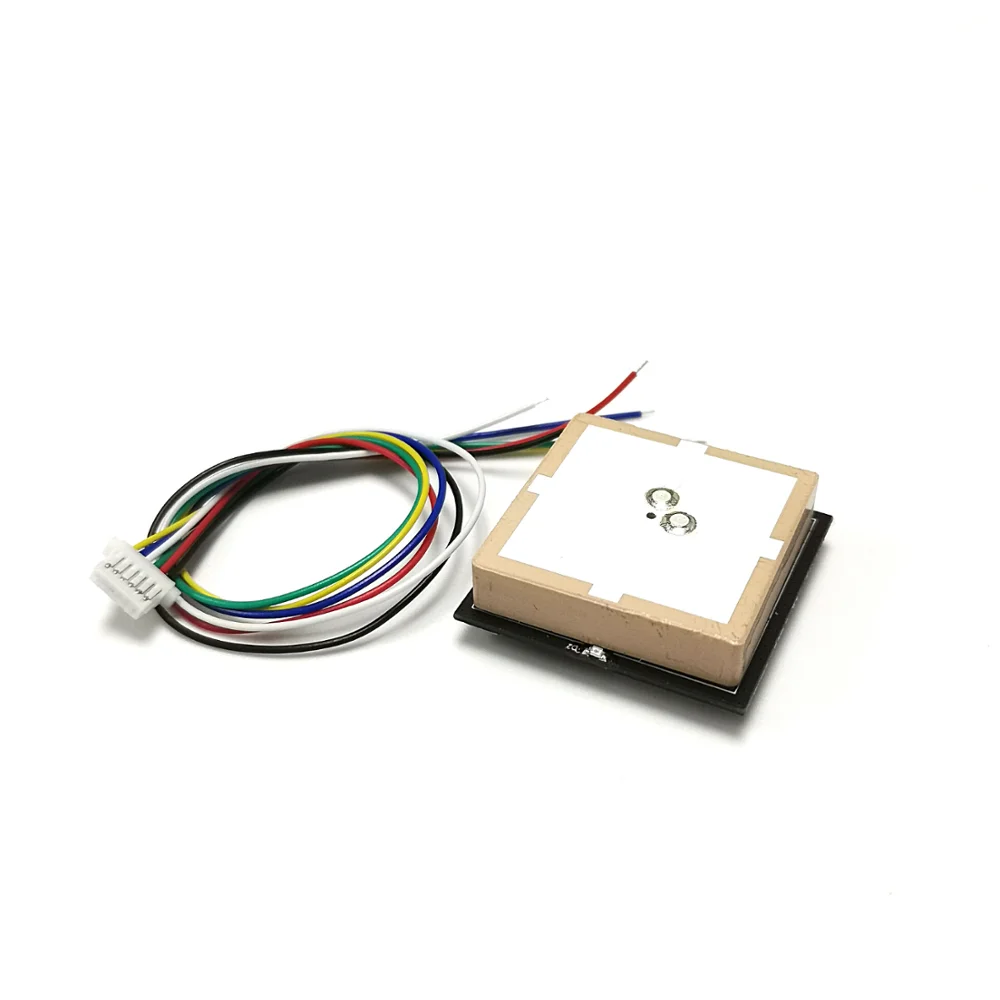

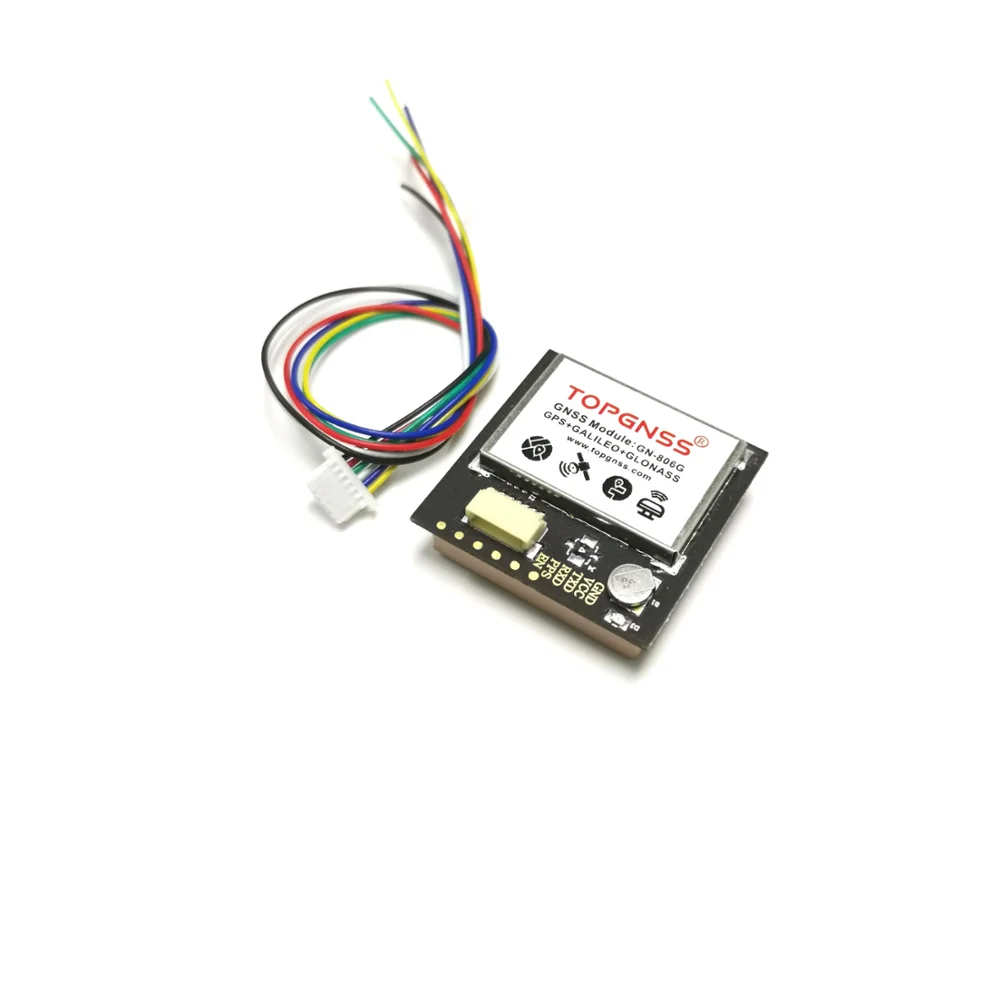

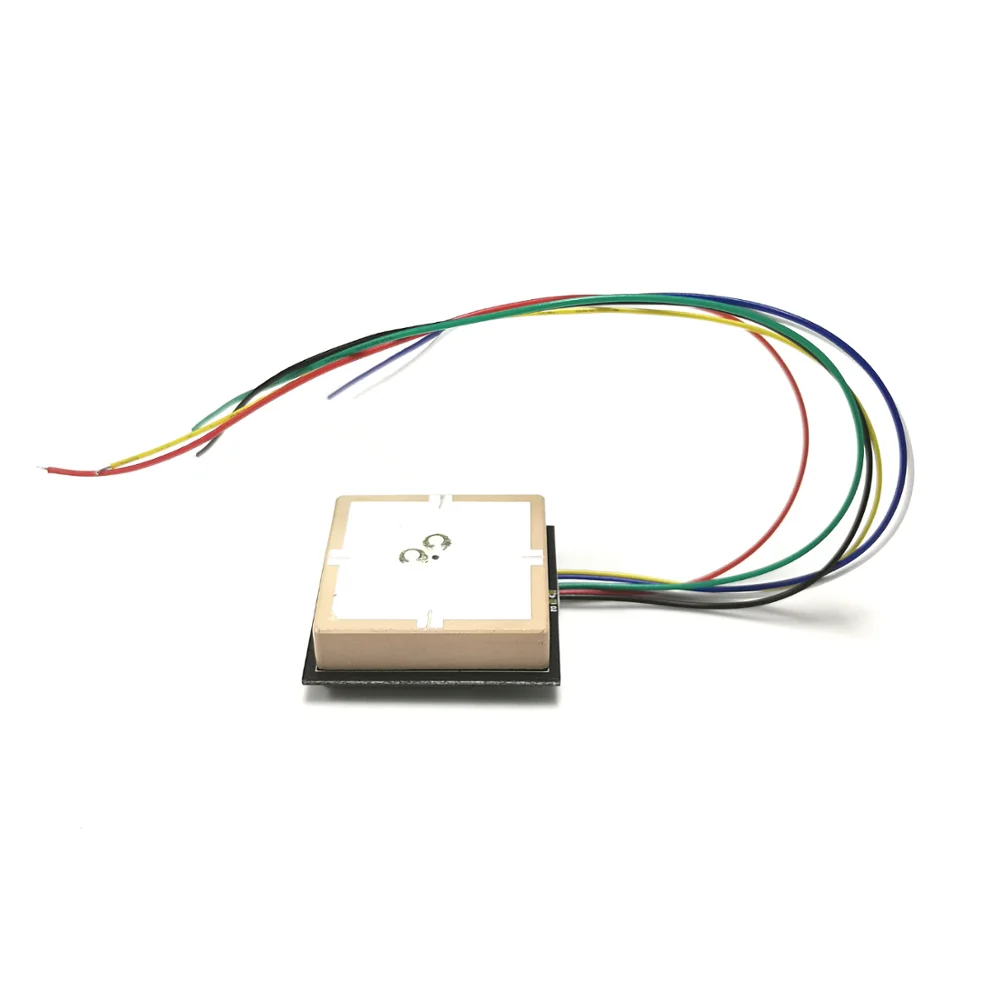

3.3-5V UART GPS GALILEO GLONASS Dual Mode GNSS Module Receive GN-806G Built-in FLASH NMEA0183 TOPGNSS GPS Receiver

Product Features

This 3.3-5V UART GPS GALILEO GLONASS dual mode GNSS module (GN-806G) offers high-precision positioning with built-in FLASH and NMEA0183 output.
It supports GPS + GALILEO + GLONASS working mode by default, providing comprehensive satellite coverage.
With a cold start time of 28s and hot start of 1s, it quickly locks onto satellites for accurate location.
It has 72 channels and a 1HZ refresh rate, ensuring real-time and accurate positioning information.
The module comes with a 1.0mm spacing 6pin connector and a working status indicator, making it easy to use and monitor.

Specifications

Brand Name

TOPGNSS

Model Name

GN-801

GPS type

Receiver & Antenna

Model:

GN-806G(TTL)

Output level:

UART

Working mode:

GPS+GALILEO+GLONASS(default)

Working voltage: 3.3-5.4V

3.3-5.4V

weight:

10.2mm

chip:

M8030-KT

FLASH:

band:

GPS L1 GLONASS L1 SBAS L1

cold start:

28s

hot start:

channels

dimension:

30*30*10.2mm

Refresh rate:

1HZ (default)

connector:

1.0mm spacing 6pin connector

Working status indicator:

red, flashing to complete

PPS PIN

YES

semi_Choice

yes

Description

3.3-5V UART GPS GALILEO GLONASS Dual Mode GNSS Module Receive GN-806G Built-in FLASH NMEA0183 TOPGNSS GPS Receiver
