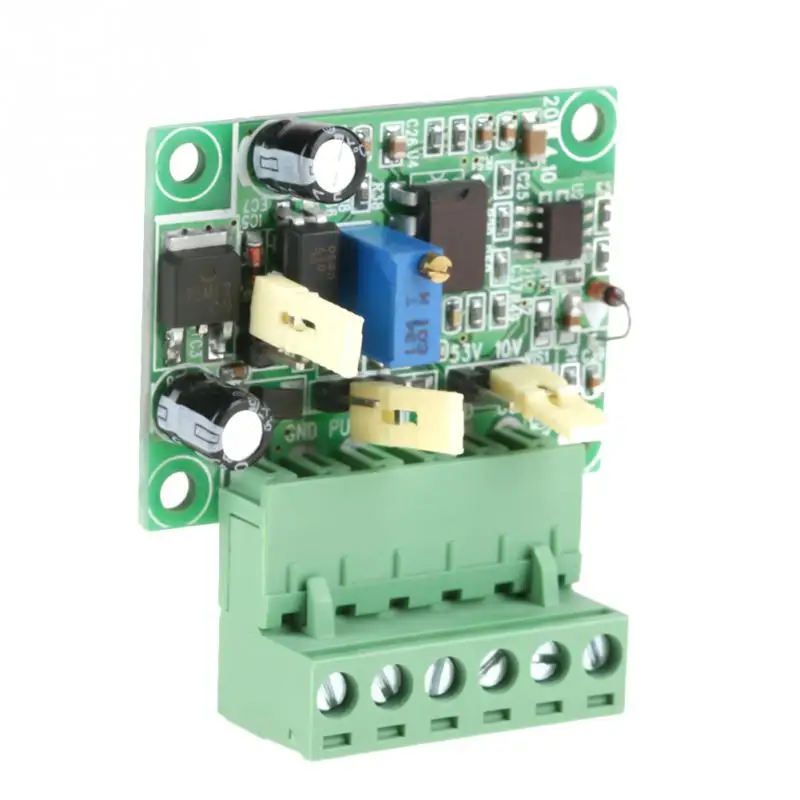

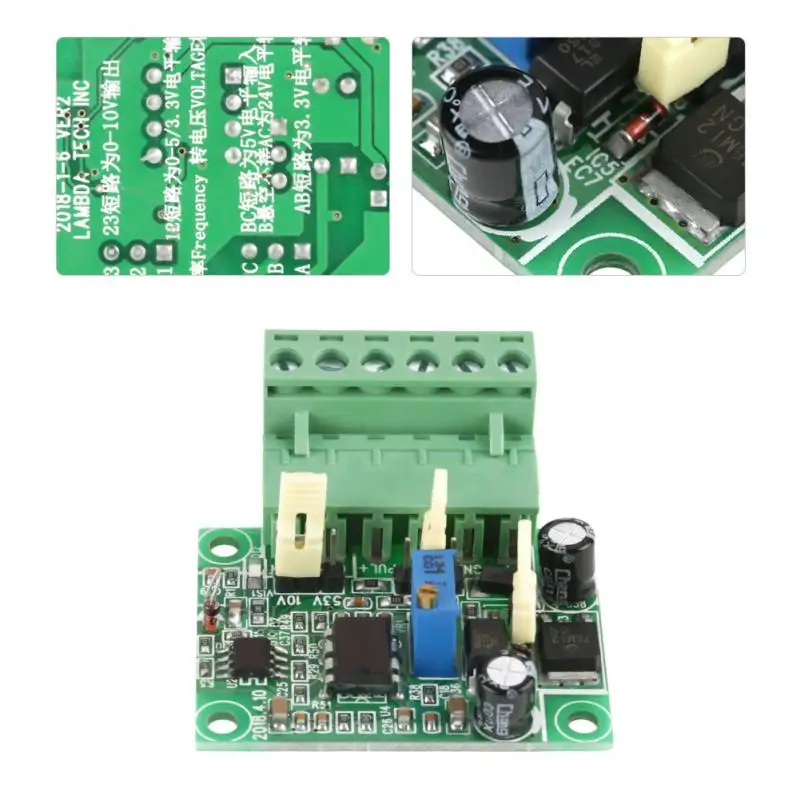

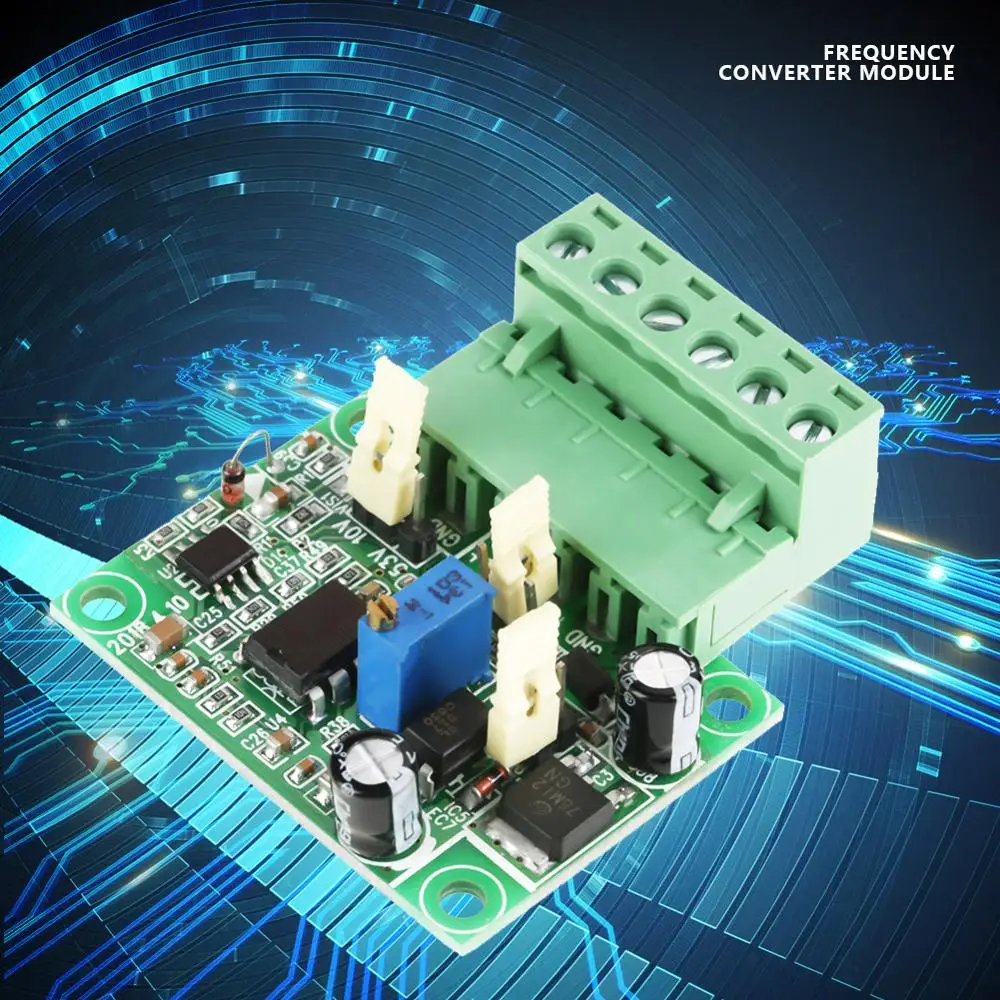

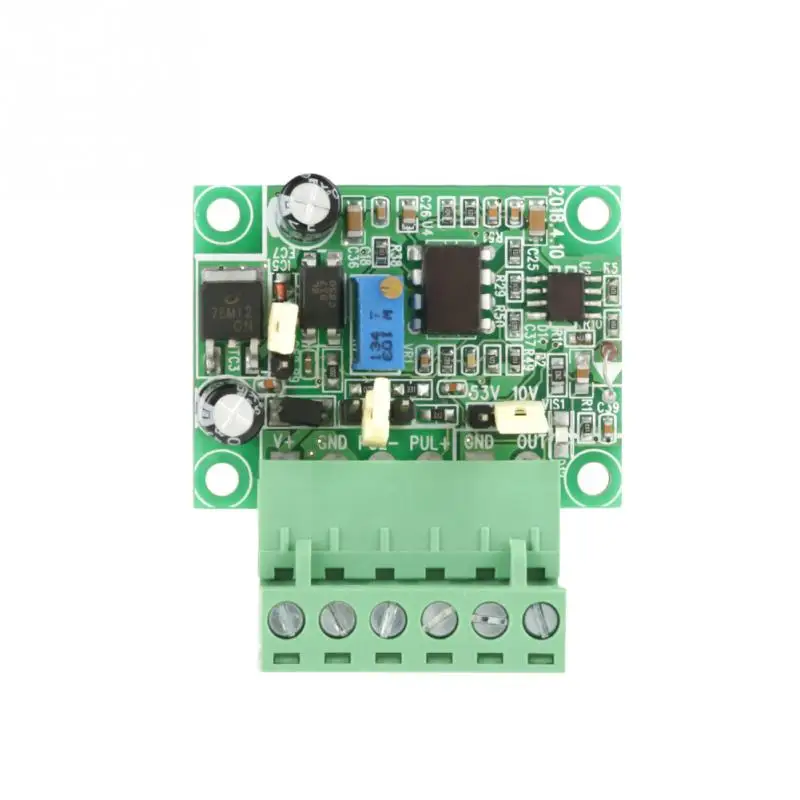

Frequency to Voltage Converter Frequency to Voltage Module 0-10Khz To 0-10V Converter Module With Isolation F/V Frequency Counter Tester Frequency Meter

Product Features

This frequency to voltage converter module can convert 0-10Khz to 0-10V with isolation, and its output voltage can be minute adjustment for precise measurement.
With optical coupling isolation for input, it offers high-level protection and accuracy, and the response time is about 0.3-0.5 seconds.
It has an anti-reverse connect function, preventing damage to the module due to incorrect wiring, and is certified with CE.
The module has a compact size of 7x6x3cm and a weight of 18g, making it easy to install and carry for various DIY electrical projects.
Operating at a medium temperature and with high accuracy class, it can provide stable performance in a wide range of environments, and the analog-only display type is intuitive.

Specifications

Brand Name

VBESTLIFE

DIY Supplies

ELECTRICAL

Hign-concerned Chemical

none

Measuring Range

Normal

Dimensions

7x6x3cm

Operating Temperature

Medium

Accuracy Class

High

Display Type

Analog Only

Model Number

Frequency to Voltage Converter

Feature 1

Output voltage can be minute adjustment

Feature 2

input with optical coupling isolation

Feature 3

response time is about 0.3-0.5 seconds

Feature 4

anti-reverse connect function

Input frequency

0-10Khz

Output current

5MA

Output voltage

0-10V/0-5VDC

Response time

0.3-0.5 seconds

Weight

18g

power supply

12-30V DC

semi_Choice

yes

Description

Frequency to Voltage Converter Frequency to Voltage Module 0-10Khz To 0-10V Converter Module With Isolation F/V Frequency Counter Tester Frequency Meter
