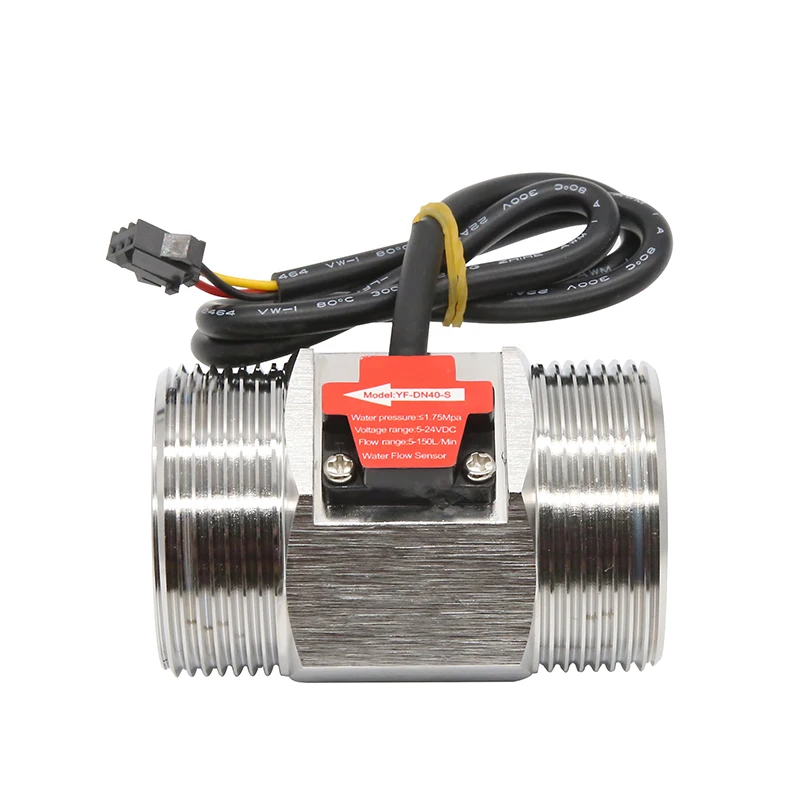

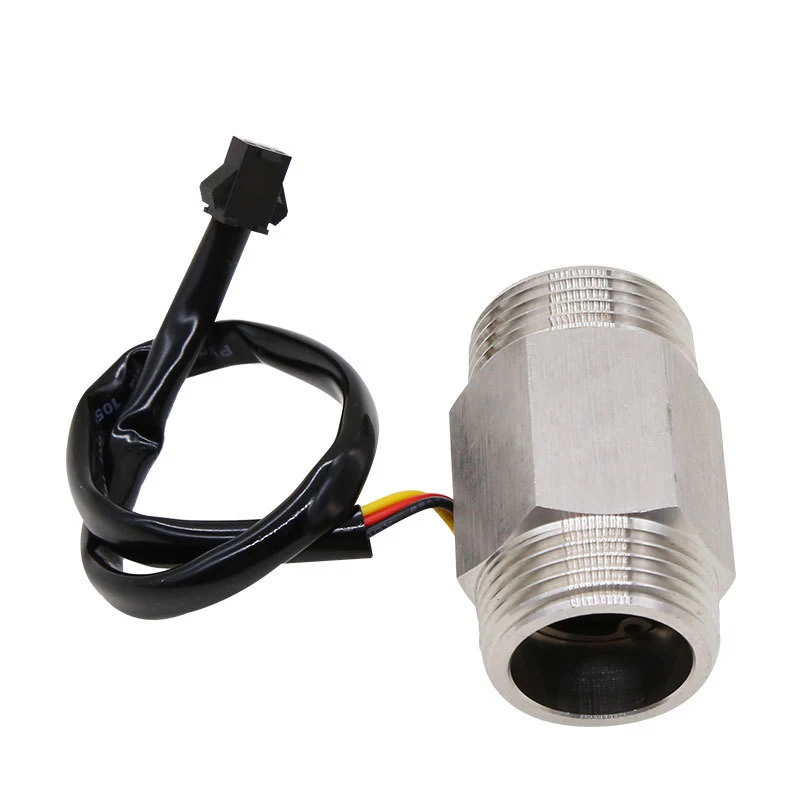

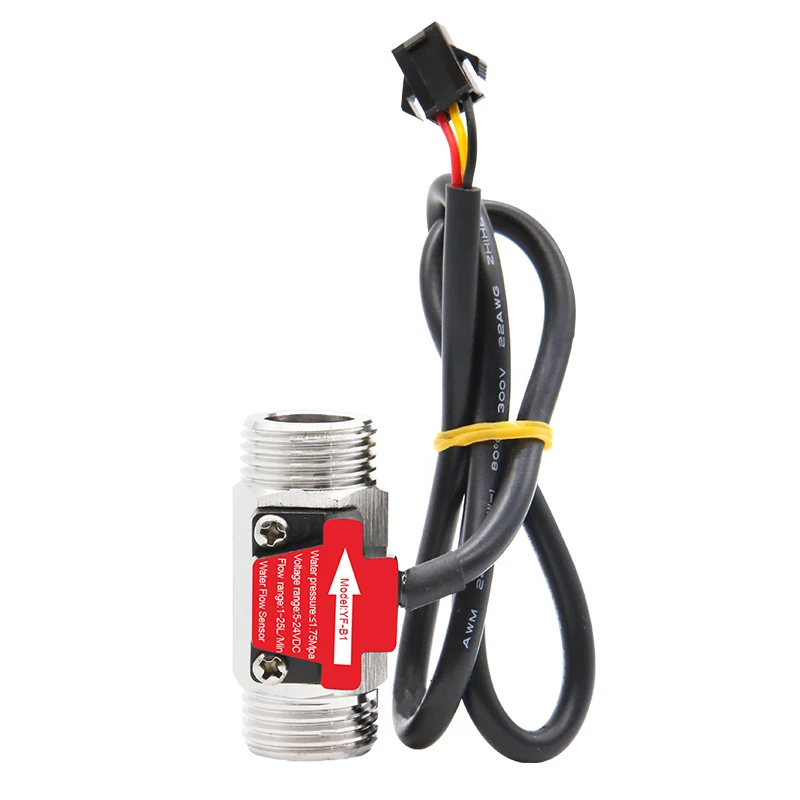

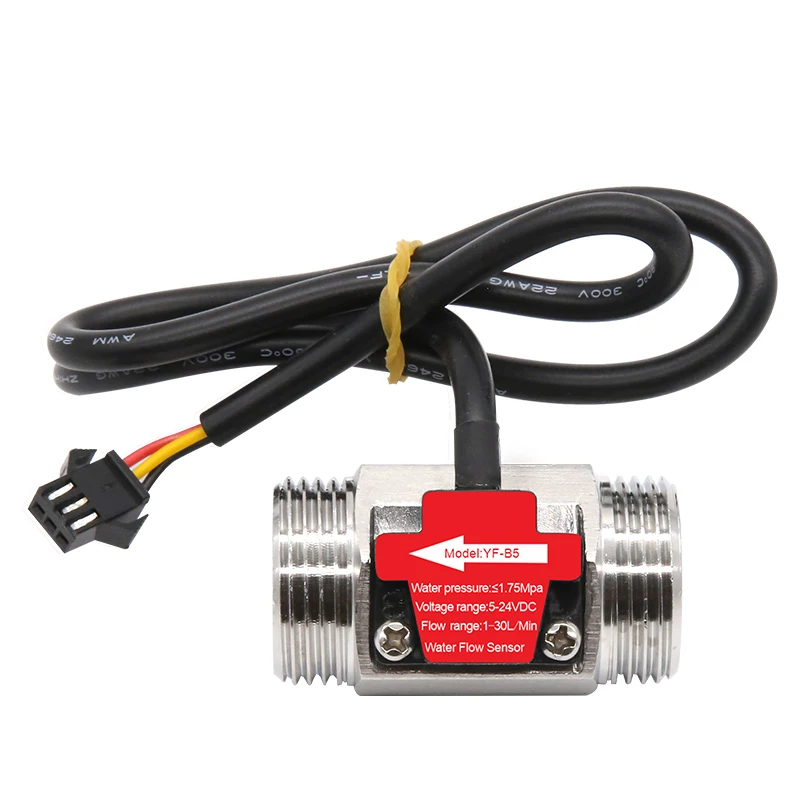

1/2" 3/4" 1" 1-1/2" 2" Water Flow Sensor 1.75MPa Hall Sensor Turbine Flowmeter DC5~18V Measure Flow Medium

Reviews | Questions & Answers
AU $26.16 ~ 157.40
Price includes 10% AU GST

Specification :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Output signal
the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order)
Working voltage range
DC 3.5~24V
Medium temperature
-20°C~+100°C
Water pressure resistance
≤1.75MPa
Output pulse high level
>DC 4.5 V (input voltage DC 5V)
Output pulse low level
Insulation resistance
>100MΩ
Brand Name
Acarps
Power
Solenoid
Model Number
YF-S
Standard or Nonstandard
Standard
Media
Water
Pressure
Low Pressure
Material
STAINLESS STEEL
Temperature of Media
High Temperature
Actuator Mode
Without Manual And Instruction
Port Size
1/2"(DN15), 3/4"(DN20);, 1"(DN25, 1-1/4", 1-1/2"(DN40), 2"(DN50)
Power Source
DC
Structure
control
