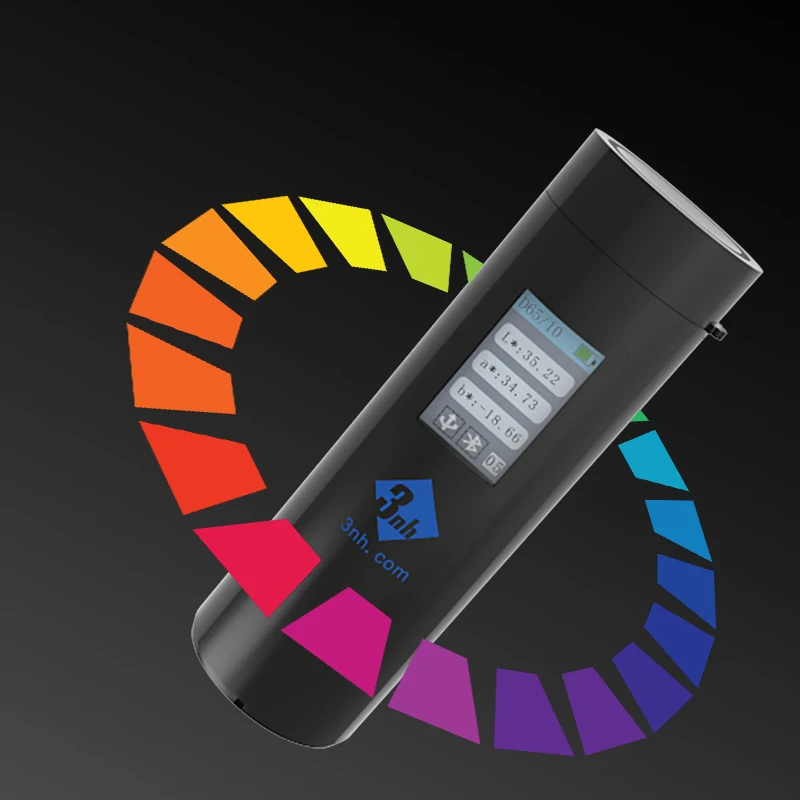

3nh Portable Mobile APP Colorimeter Spectrophotometer for Color Matching Measuring in fruits/Plastic/Food/Leather/Printing/Paint

Specifications

Brand Name

3nh

Model Number

CR4501(Basic version)

Geometry

45/0(45 ring-shaped illumination, vertical viewing)Comply with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164,DIN5033 Teil7, GB 2893, GB/T 18833

Features

Basic version of spectrophotometer with universal 8 measuring aperture. Color Reader is used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing,ceramics and other industries; Easily put it in your pocket, carry it with you.

Spectroscopic methods

Full spectrum LED light source

Light filter splitting

Sensors

CMOS dual optical path sensor

Measurement wavelength range

400~700nm

Wavelength interval

10nm

Measure the diameter

8mm

Color space

CIE LAB,LCh

The color difference formula

E*ab

Other chromaticity indexes

Angle of observer

10°

Illumination

D65

Display

1.14inch-IPS Color LCD

Measuring time

about 1S

Stability of measurement

Chromaticity value: E*ab 0.1(After preheating and correction, the average value of the whiteboard is measured for 30 times at an interval of 5s)

Inter-instrument Error

E*00<0.5(BCRA II series 12 color bricks measured average)

Multi-function smart button

Measurementre quirements

Display precision

0.01

Size

30X100mm

Weight

about 88g

Battery

Lithium battery, can do tests continuously for 12000 times in a single full charge

Illumination source life time

More than 3 million measurementsin5 years

Interface

Type C USB, bluetooth

Store the data

The device has no storage function and can be stored through the mobile APP

Language

Chinese, English

Operating temperature range

0~40℃, 0~85%RH(No condensation),Altitude: lower than 2000m

Temperature range

-20~50℃, 0~85%RH(no condensation)

Standard accessories

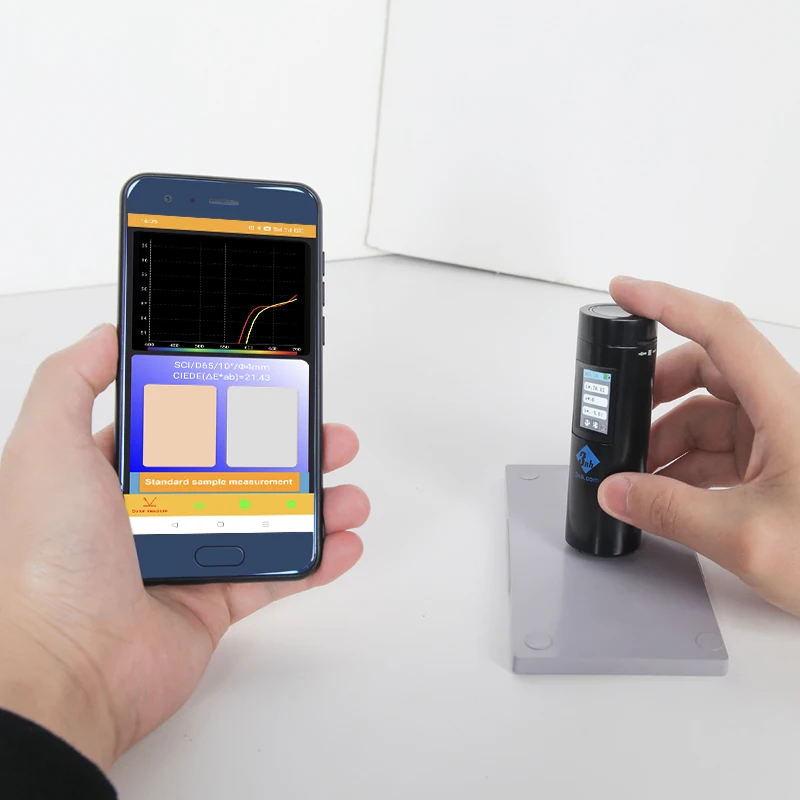

Data line,manual,calibration box SQCX quality management software,Color matching cloud Wechat applet,MOBCCS APP(download from the official website)

Optional Accessories

Mini printer

Description

3nh Portable Mobile APP Colorimeter Spectrophotometer for Color Matching Measuring in fruits/Plastic/Food/Leather/Printing/Paint
