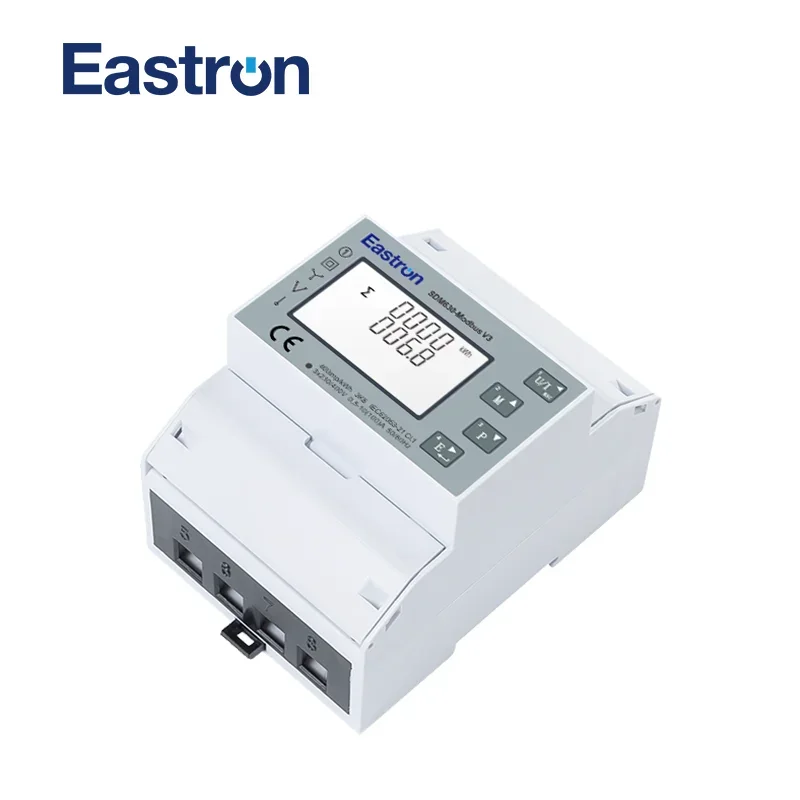

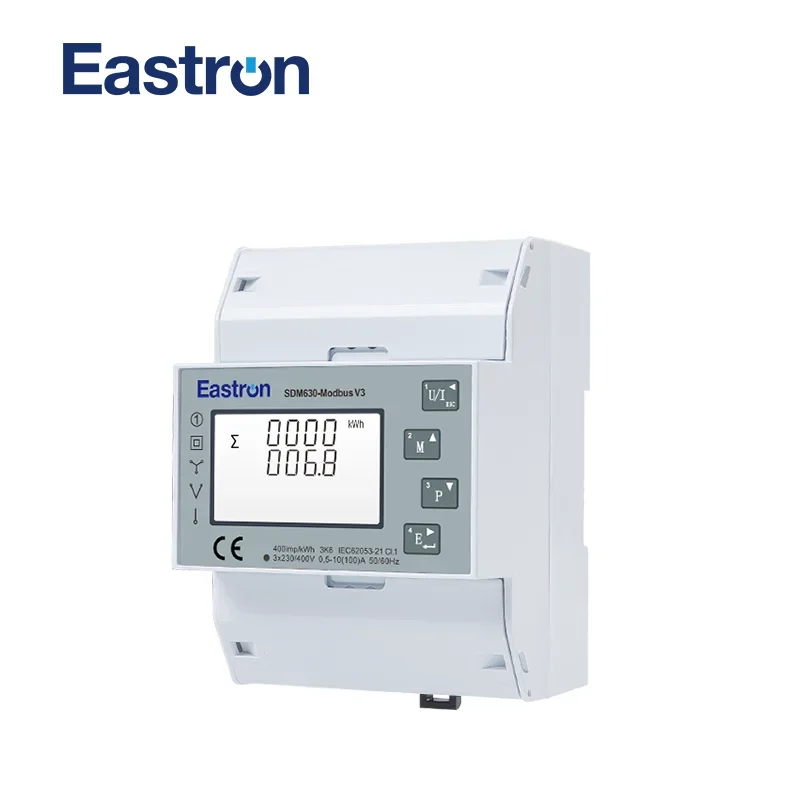

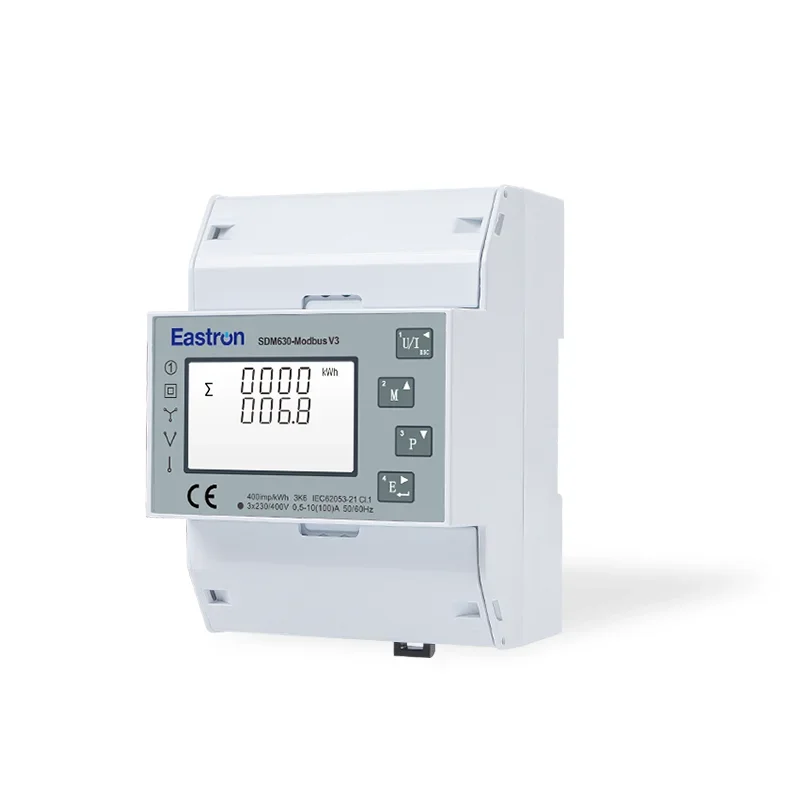

SDM630Modbus V3 Multi-function Power Analyser For PV Solar System

Reviews | Questions & Answers
AU $296.98
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • The SDM630Modbus V3 multi-function power analyser is ideal for PV solar systems. It has an LCD display and measures energy from 0-999999.99kWh.
  • With a three-phase system and rated voltage of 230V, it provides accurate power analysis for solar energy applications.
  • Operating in a temperature range of-25 to +55 degrees centigrade, it's suitable for various environmental conditions.
  • Featuring RS485 communication type and Modbus RTU protocol, it enables seamless data transmission and monitoring.
  • With a max operating current of 80A-99A and high accuracy class (Cl. 1), it ensures reliable performance in solar power management.
Specifications
Brand Name
YISITONG
DIY Supplies
ELECTRICAL
Measuring Energy Range
0-999999.99kWh
Display Type
LCD
Output Voltage
230V
Model Number
SDM630Modbus V3
Power Supply
AC
Phase
Three Phase
Rated Voltage
230V
Dimensions
100*72*66mm
Operating Temperature
-25 to +55 degree centigrade
Accuracy Class
Cl. 1
Max Operating Current
80A - 99A
Color
White
Communication type
RS485
Communication protocol
Modbus RTU
Pulse output 1
Configurable
Pulse output 2
400imp/kWh
Pulse output type
Passive
2477 Sold
