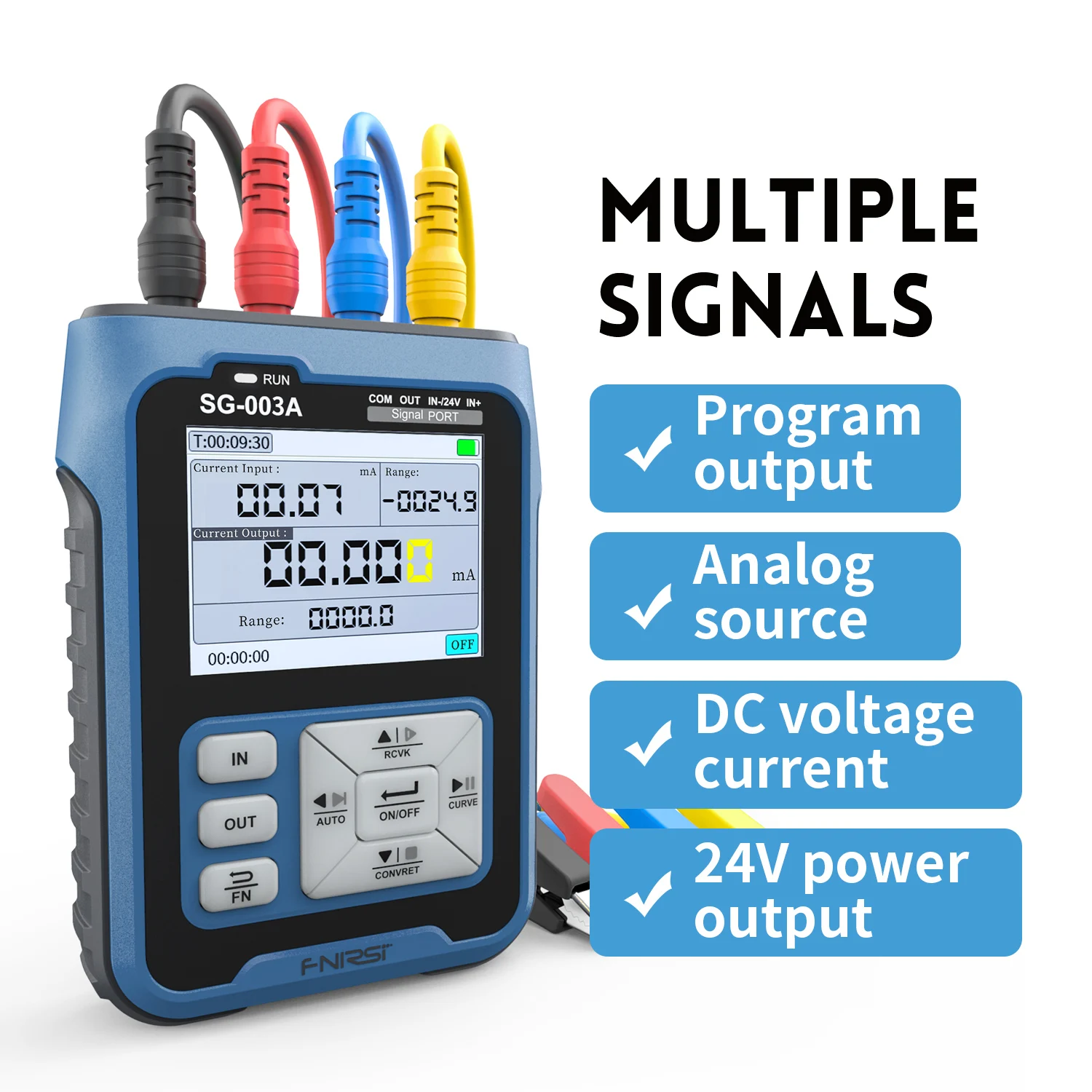

FNIRSI SG-003A Signal Generators 0-10V 4-20mA Adjustable Current Voltage Simulator PWM Pulse Output TFT Full-color LCD Display

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $141.48
Price includes 10% AU GST

Color :
Plug Type :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Brand Name
FNIRSI
DIY Supplies
ELECTRICAL
Display Size
2.9 Inches & Under
Model Number
SG-003A
Active current output range
0~24mA
Active current output resolution
0.01 mA
Active current output maximum load
750Ω
Active current output Precision
±(0.1%+0.005)
Passive current output range
0-24 mA
Passive current output resolution
0.01 mA
Passive current output
external power supply Up to 30V
Passive current output Precision
±(0.1%+0.005)
Voltage output range
0-24 V
Voltage output resolution
0.01V
Voltage output maximum current
30mA
Voltage output Precision
±(0.1%+0.005)
24V voltage output drive current
24mA
24V voltage output resolution
0.01 mA
24V voltage output Precision
±(0.1%+0.005)
Current input measurement range
0-24 mA
Current input measurement resolution
0.01 mA
Current input measurement
input impedance 100Ω
Current input measurement Precision
±(0.1%+0.05)
Voltage input measurement range
0-30 V
Voltage input measurement resolution
0.01 V
Voltage input impedance
2MΩ
Voltage input measurement Precision
±(0.1%+0.05)
PWM output (frequency) Range
0-9999Hz
Battery
3000mAh
Operating environment
0 °C - 50 °C.
Size
112mm*82mm*27mm
