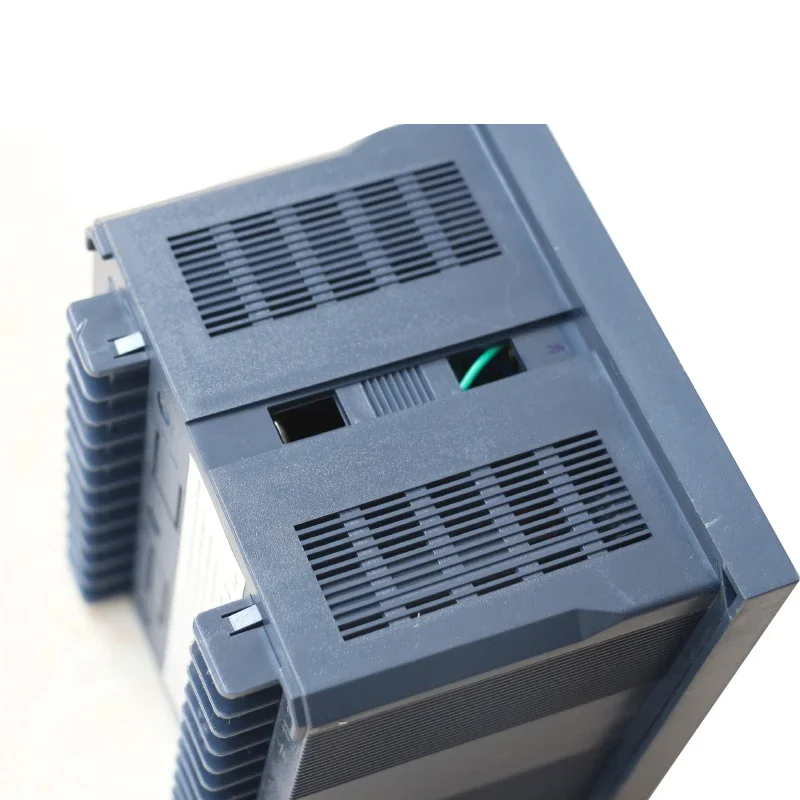

JKL2C/JKW2C 4/6/8/10/12 Steps Universal Reactive power automatic compensation controller 220V 50Hz for power factor correction

Product Features

Universal compatibility with 4/6/8/10/12 Steps, suitable for various power systems. It can automatically compensate reactive power and improve power factor.
With rated voltage of AC 220V and rated frequency of 50Hz+-5%, it ensures stable operation in common power grids. The input delay is set at 250S, factory preset dynamic state 5S and static state 30S.
Equipped with over-voltage protection of 230-260V, step length 1V and return difference 6V, reset 240V, and under-voltage protection of 180V with return difference 6V, providing reliable protection.
The CT variation ranges from 50/5A to 3000/5A with a step length of 1 and factory preset at 500/5A. It can accurately measure and control current.
It has a capacitance capacity of 0-99kvar, with each branch preset at 10kvar. The contact capacity in the dynamic state is output of each branch DC12V*50mA and in the static state is 380V*7A/200V*5A, ensuring sufficient output.

Specifications

Rated Current

AC 0-5A

Rated Voltage

AC 220V

Rated frequency

50Hz+-5%

Sensitivity

100mA

Input delay

250S. Factory preset dynamic state 5S. static state 30S.

Over-voltage protection

230-260V. step length 1V. Return difference 6V reset 240V

Under-voltage protection

180V. return difference 6V

CT variation

50/5A-3000/5A. step length 1. factory preset 500/5A

Capacitance capacity

0-99kvar factor preset of each branch 10kvar

Contact capacity(dynamic state)

output of each branch DC12V*50mA

Contact capacity(static state)

output of each branch 380V*7A/200V*5A
