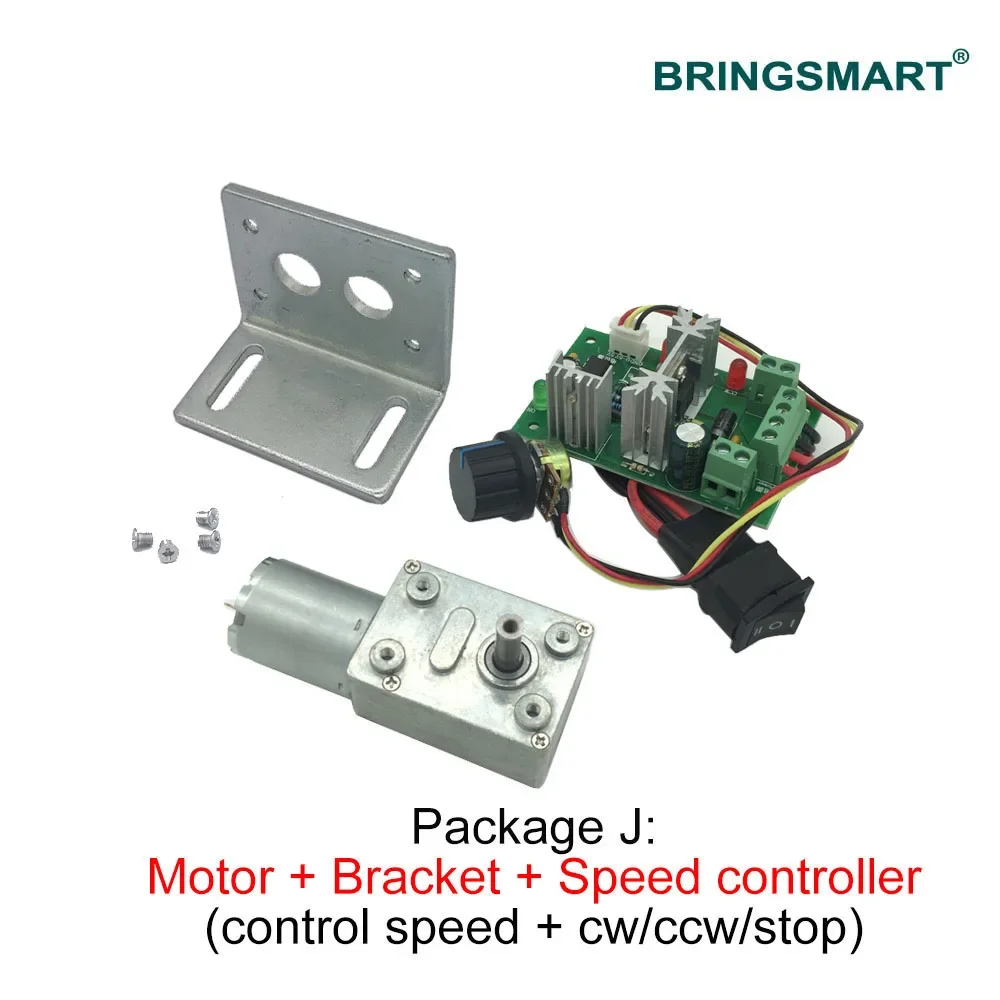

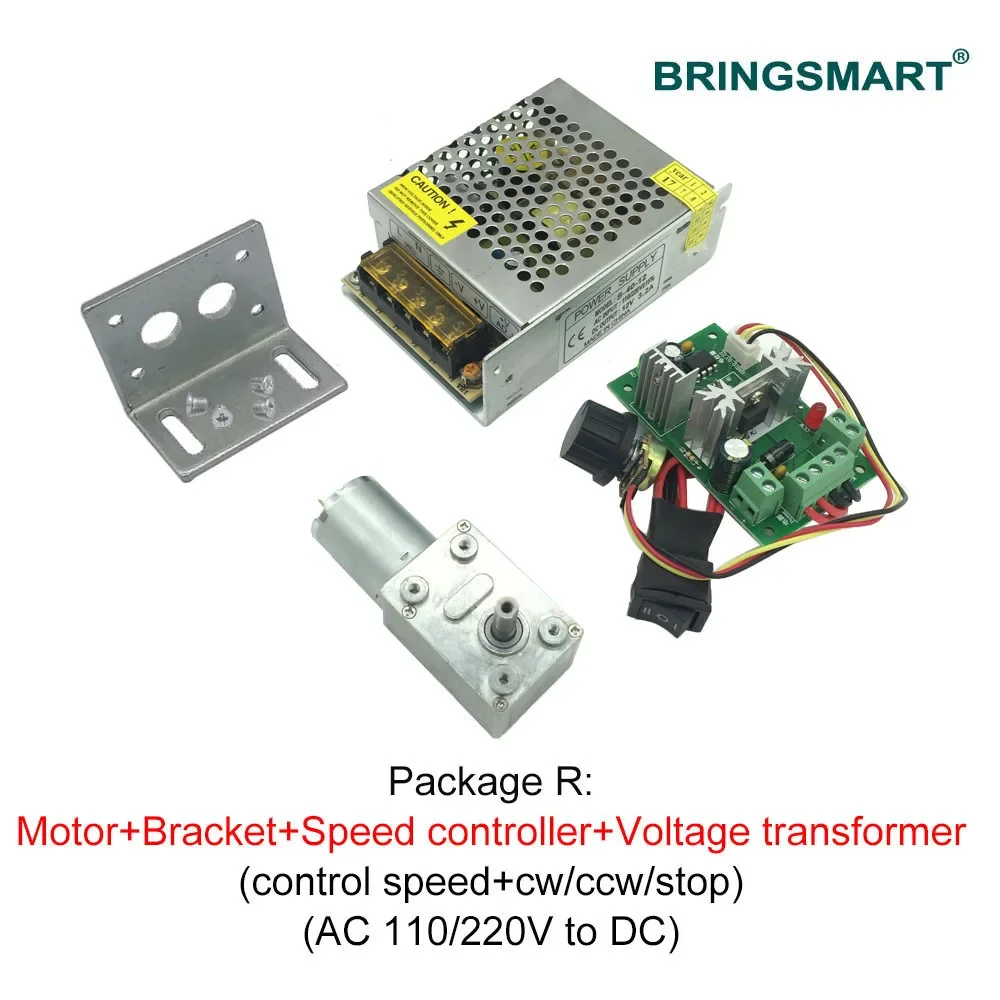

DC Worm Geared Motor 6V 12V 24V Self-lock Reversed Reducer Mini Reduction Box Low Speed Electric Motor worm geared motor

Product Features

This motor is equipped with a DC worm geared system, providing stable and reliable performance. It can operate at 6V, 12V, or 24V, with self-lock and reversed functions.
The mini reduction box design makes it easy to install and use in various home appliances. It has a low speed and high torque, suitable for heavy loads.
With a continuous current of 15-100mA and an output power of 0.5-1.3W, this motor is energy-efficient and has a long service life.
The totally enclosed construction and brush commutation ensure the safety and durability of the motor. It is also ROHS certified, meeting environmental standards.
Offering a torque of 0.8-25kg.cm depending on the speed, this motor can handle a wide range of tasks. It is a great choice for home appliance applications.

Specifications

Brand Name

szcmmotor

SZCMMOTOR Model

JGY-370

Hign-concerned Chemical

None

Continuous Current(A)

15-100mA

Output Power

0.5-1.3W

Commutation

Brush

Type

Gear Motor

Protect Feature

Totally Enclosed

Construction

Permanent Magnet

Usage

Home Appliance

Efficiency

IE 1

Model Number

JGY-370

Torque

0.8-25kg.cm-Load according to speed

semi_Choice

yes

Description

DC Worm Geared Motor 6V 12V 24V Self-lock Reversed Reducer Mini Reduction Box Low Speed Electric Motor worm geared motor
