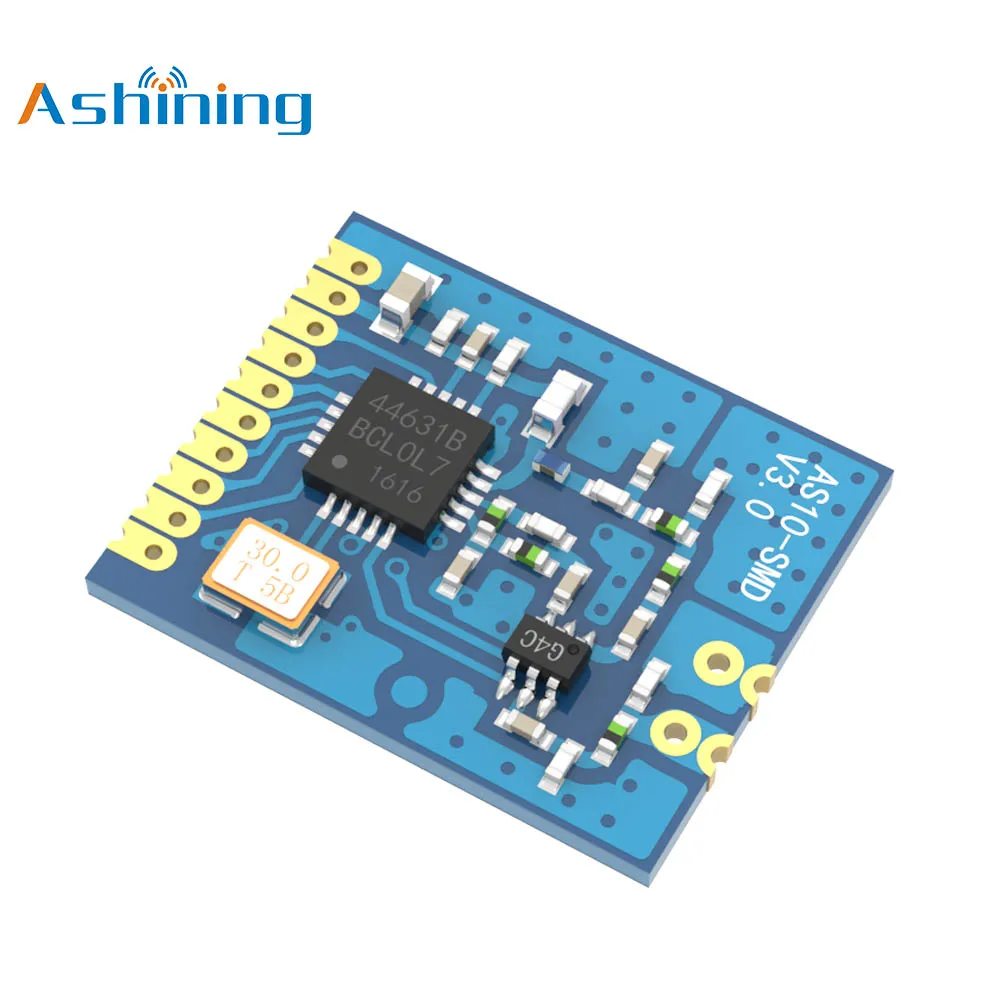

433MHz Remote Sensor SPI TX RX Rf Transmitter Receiver Module AS10-SMD Ashining

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $12.20
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Brand Name
Ashining
Item Type
Wireless module
Model Number
AS10-SMD
RF chip
SI4463
Module size
18.5* 15mm
Module weight
0.8g
Operating frequency
425M~525MHz
Production craft
Lead-free environmental protection process
Interface mode
1* 10* 1.27
Supply voltage
1.8 ~ 3.6V DC
Communication level
0.7VCC ~ 3.6V
Measured distance
2,000m
Transmission power
Maximum 20dBm
Air rate
0.123k ~ 1Mbps
Turn off current
0.5uA
Transmitting current
80mA@20dBm
Receiving current
13mA
Communication Interface
SPI
Transmitting length
Single packet 1 to 64 bytes
Receiving length
Single packet 1 to 64 bytes
RSSI
Support
Antenna interface
Spring antenna/external
Operation temperature
-40 ~ +85℃
Operation humidity
10%-90%
Storage temperature
-40 ~ +125℃
Receiving sensitivity
-126dBm@1kbps
