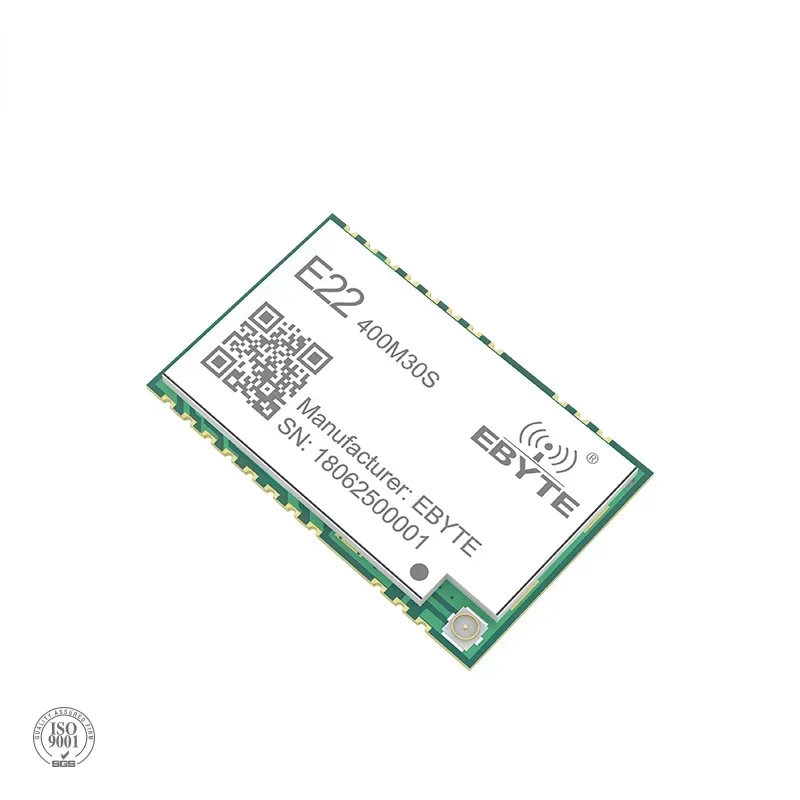

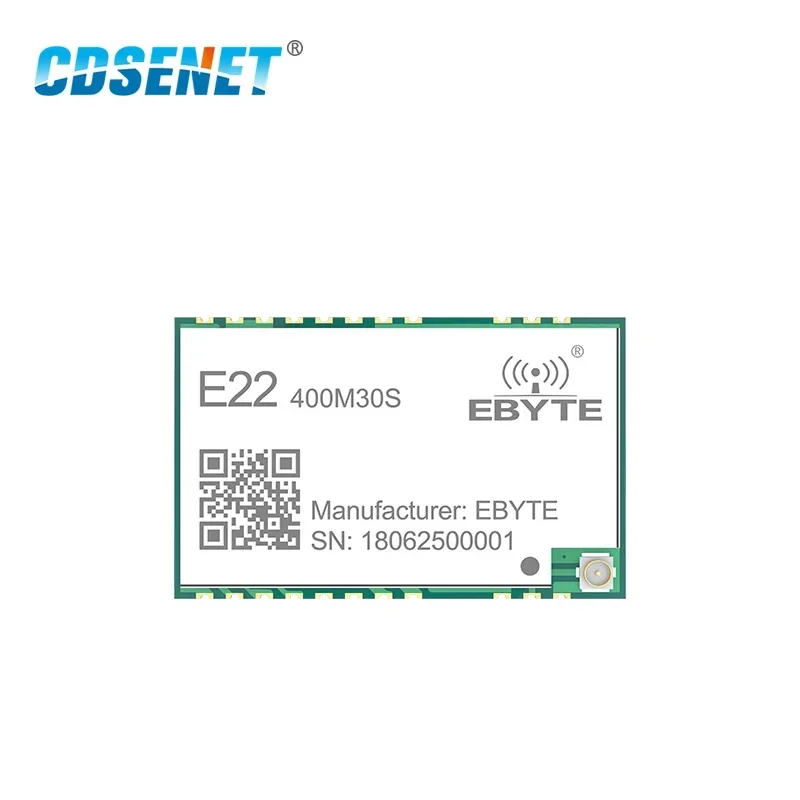

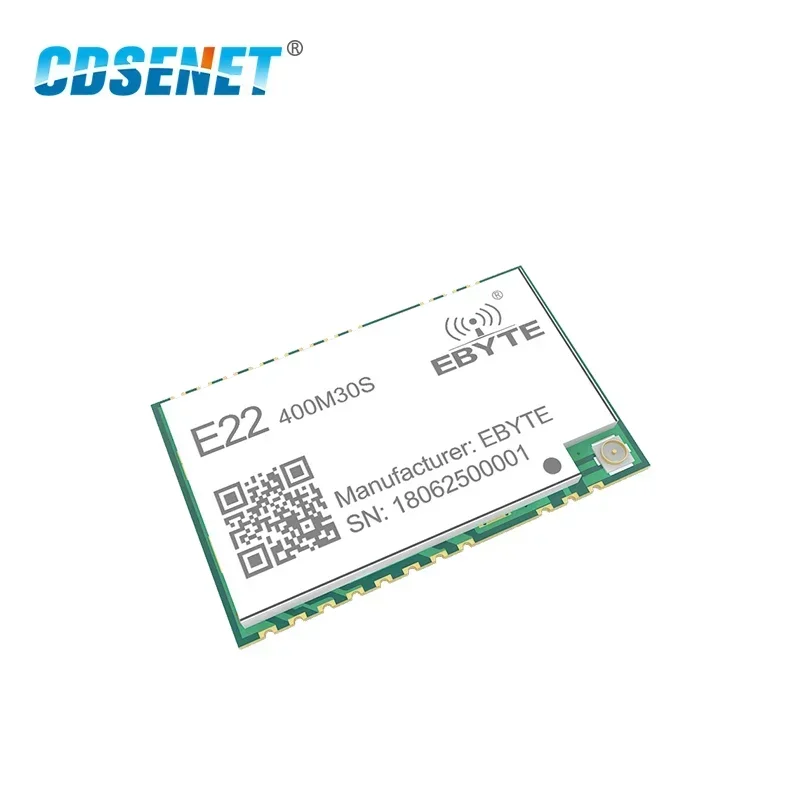

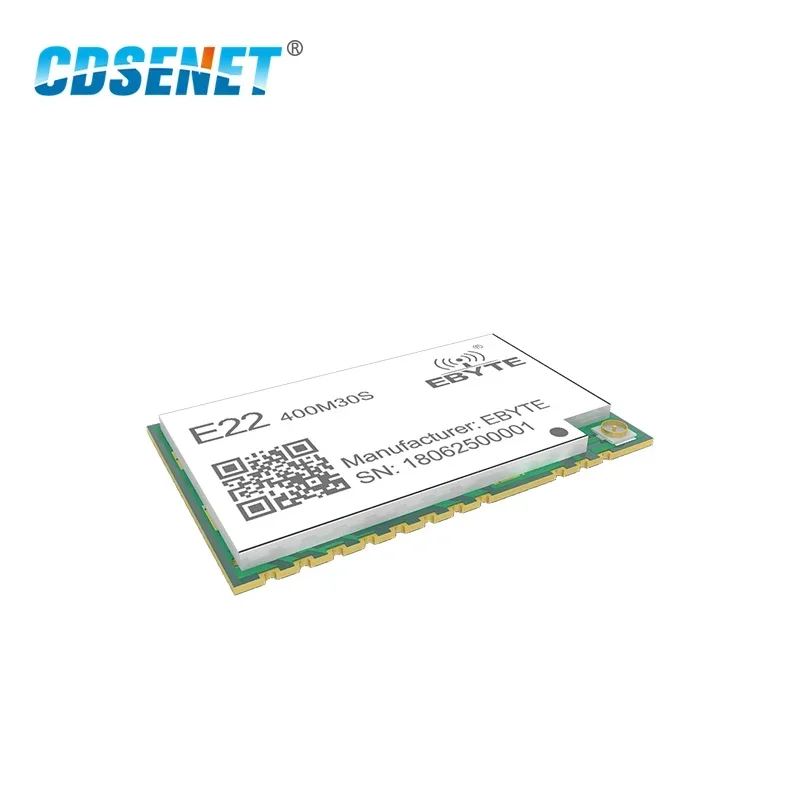

SX1268 1W LoRa 433MHz Wireless Transceiver CDSENET E22-400M30S High-Precision TCXO IPEX Stamp Hole SMD Long Range Receiver for wireless module

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $16.43
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This SX1268 1W LoRa 433MHz wireless transceiver from CDSENET E22-400M30S has a high-precision TCXO, offering long-range communication.
  • Made in Mainland China with RoHS certification, it operates at a working frequency of 410-493MHz.
  • With a size of 38.5mm * 24mm and a distance of 12000m, it is suitable for long-range wireless applications.
  • It has a power of 30dBm (1W) and an SPI interface, providing reliable and efficient data transmission.
  • This wireless transceiver is customizable and is an ideal choice for various wireless module projects.
Specifications
Brand Name
CDSENET
Hign-concerned Chemical
none
Working Frequency
410-493MHz
Port Number
1
Model Number
E22-400M30S
Type
GSM
Size
38.5mm * 24mm
Distance
12000m
RF IC
SX1268
Supply Voltage
2.5 ~ 5.5V
Power
30dBm (1W)
Interface
SPI
2544 Sold
