FG-100 DDS Function Signal Generator Frequency Counter 1Hz-500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform

Product Features

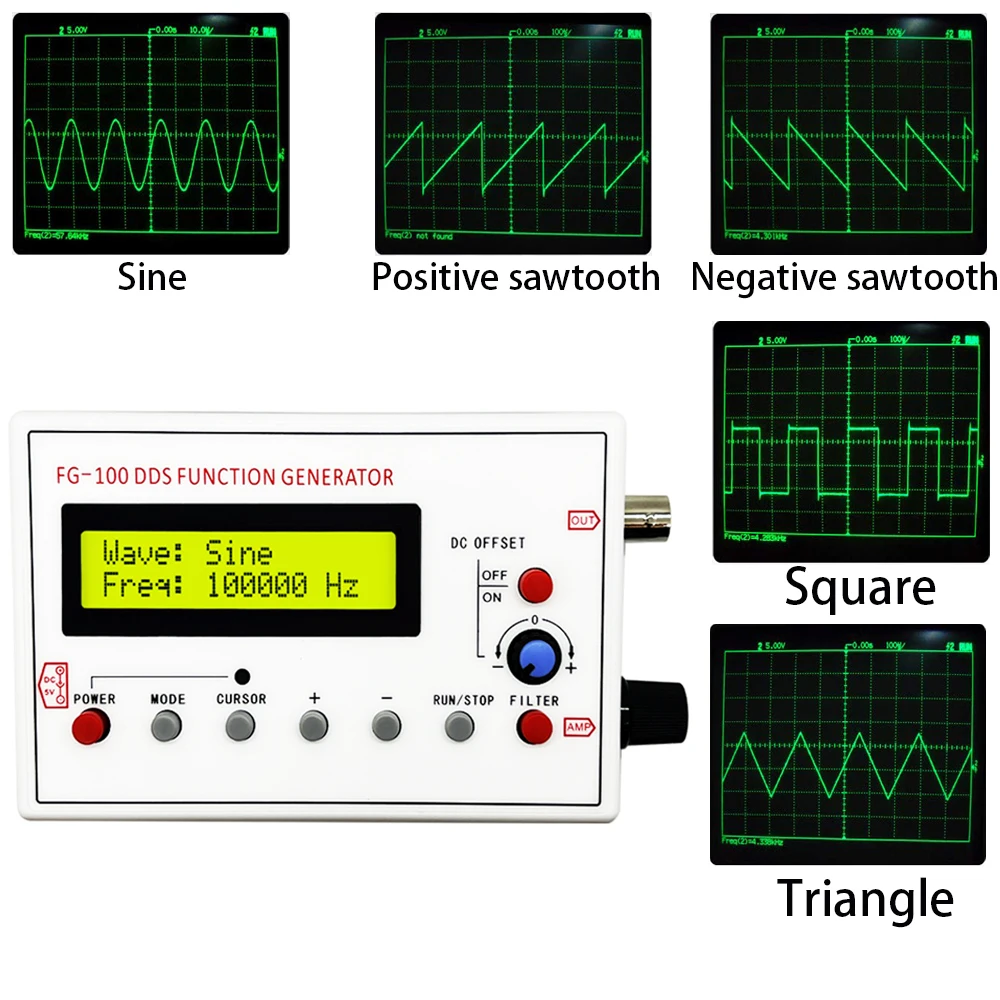

This FG-100 DDS function signal generator has a frequency range of 1Hz-500kHz. It can generate sine, square, triangle, and sawtooth waveforms.
With a 3.0-4.9 inches display size and CE certification, this signal generator is reliable. It is made in Mainland China.
The sine wave distortion is less than 1% below 1kHz and less than 0.5% above 1kHz. It has a resolution of 1Hz.
This signal generator can output a maximum amplitude of ± 10V (P-P) with a 50-ohm output impedance.
The DC offset can reach a maximum of ± 10V, related to the closing function. It is powered by DC3.5-10V.

Specifications

Brand Name

Interest Maker

DIY Supplies

ELECTRICAL

Display Size

3.0 - 4.9 Inches

Model Number

FG-100 DDS Function Signal Generator

Frequency range:

Sine wave 1Hz-500kHz

Resolution:

1Hz

Output waveform:

sine wave, square wave, triangular wave, forward sawtooth wave wave, reverse sawtooth wave wave.

Sine wave distortion:

<1% below 1kHz,<0.5% above 1kHz.

Output amplitude:

maximum ± 10V (P-P)

Output impedance:

50 ohms.

DC offset:

maximum ± 10V, related to closing function.

Power supply:

DC3.5-10V
