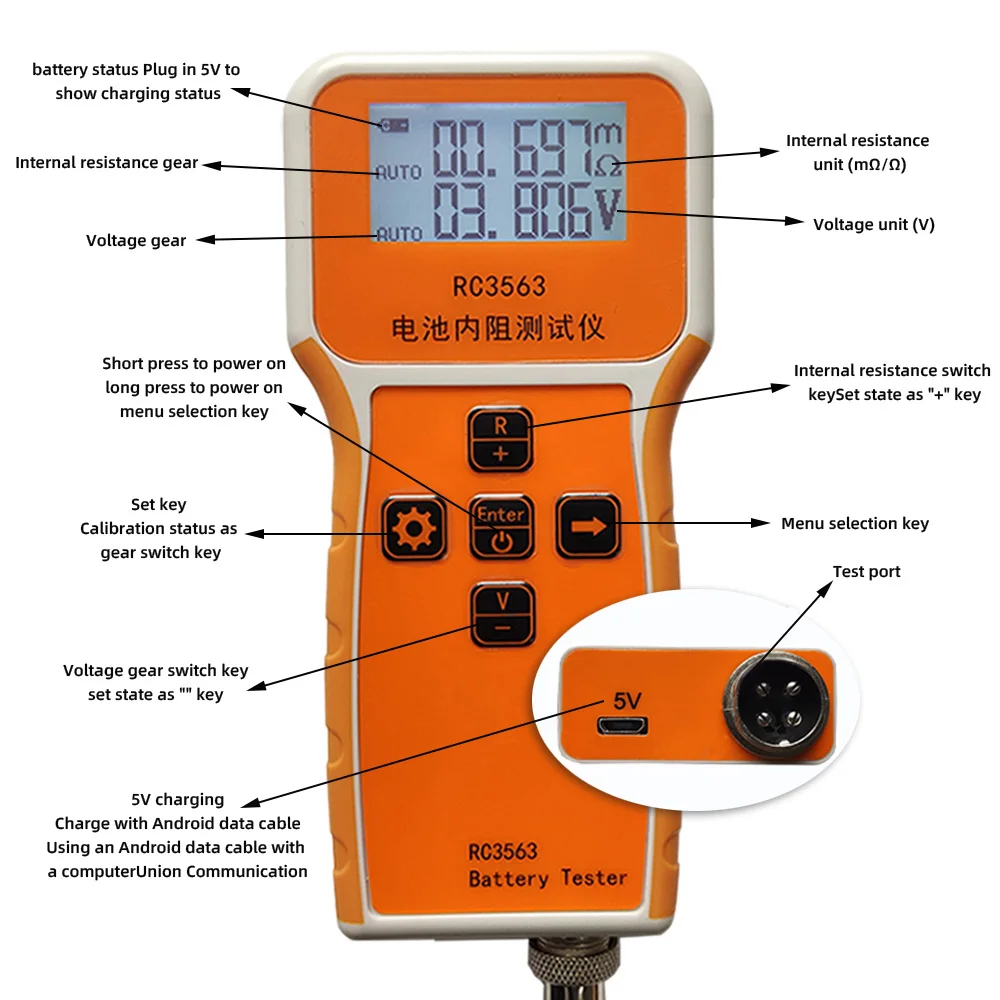

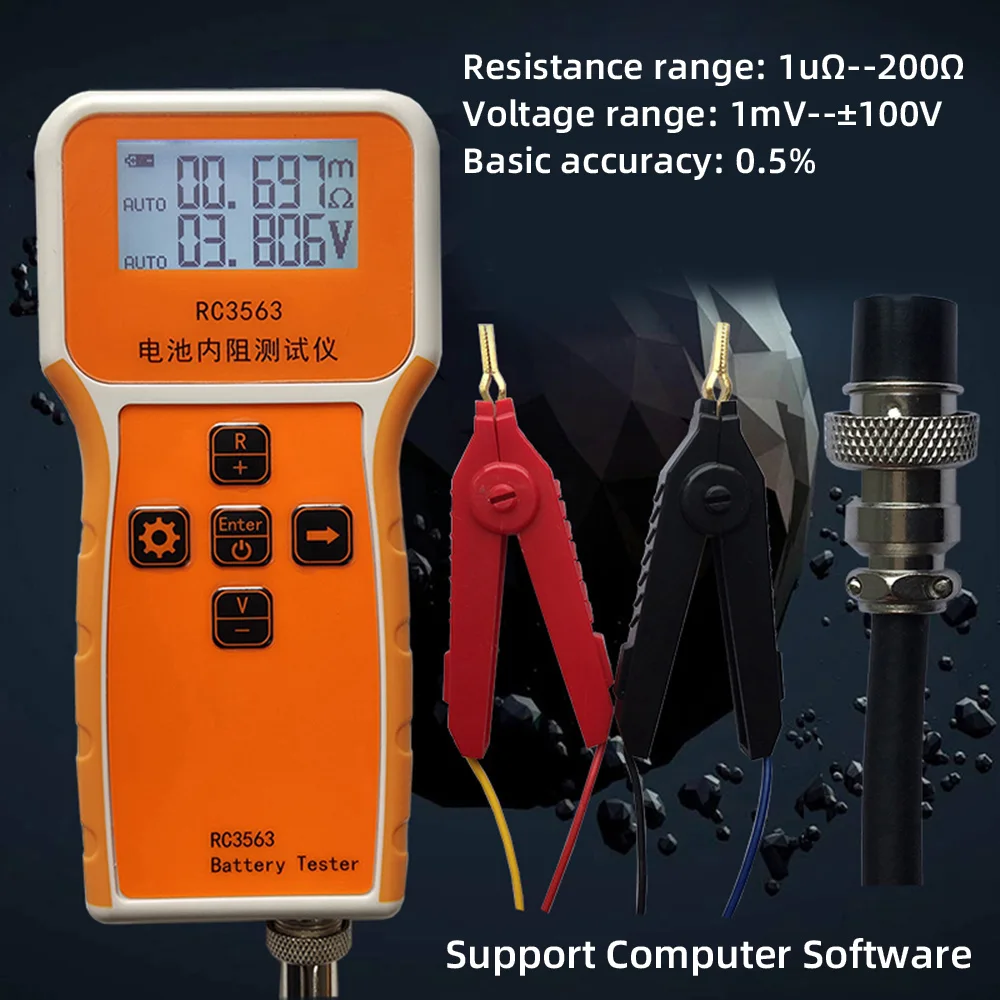

Resistance Tester RC3563 Battery Voltage Internal Resistance High-precision Trithium Lithium Iron Phosphate 18650 True 4Wire

Product Features

This resistance tester RC3563 has high-precision measurement capabilities, with an accuracy class of high and basic accuracy of 0.5% for resistance and voltage.
It can measure AC resistance and DC voltage, with a wide resistance range of 0.0001mΩ~200Ω and voltage range of 0.0001V~±100V.
Originating from Mainland China, it is certified with CE, indicating its compliance with international standards.
It has a built-in 1000mAh lithium battery and a digital LCD display, providing convenient operation and clear readings.

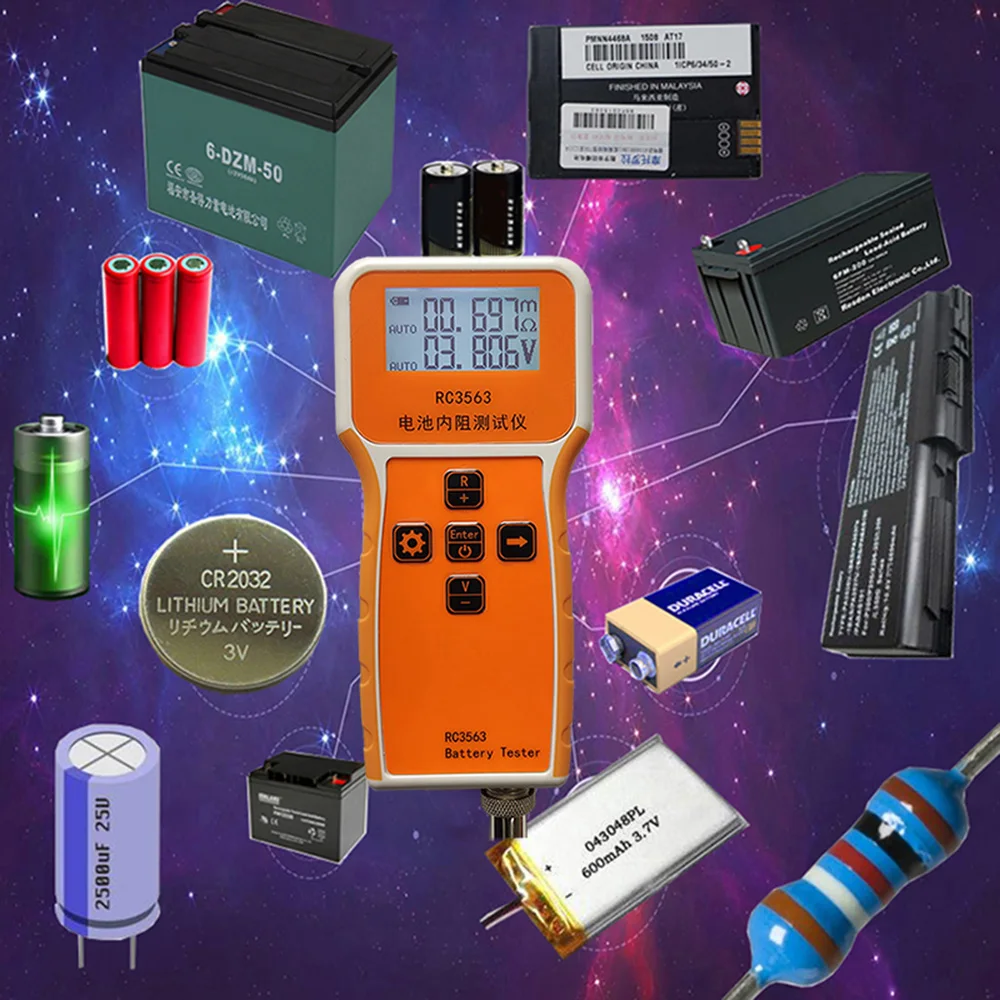

Users can choose this tester for accurate battery voltage and internal resistance measurement in household and DIY electrical projects.

Specifications

Brand Name

Gaqqee

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Model Number

RC3563/BA1020

Accuracy Class

High

Display Type

Digital Only

Type (RC3563)

Household Battery Tester

Language (RC3563)

Chinese and English switch

Measurement Parameters (RC3563)

AC resistance, DC voltage

Basic Accuracy (RC3563)

resistance 0.5%, voltage 0.5%

Display (RC3563)

LCD display

Battery (RC3563)

built-in 1000mAh lithium battery

Resistance Ranges (RC3563)

0.0001mΩ~200Ω,6 ranges automatic and manual

Voltage Ranges (RC3563)

0.0001V~±100V direct current,3 ranges automatic and ma

Test Speed (RC3563)

Manual 5 times/second

Power Supply (BA1020)

DC5V 1A

Resistance Basic Accuracy (BA1020)

0.2%

Voltage Basic Accuracy (BA1020)

0.2%

Resistance Measurement Range (BA1020)

1uΩ~200Ω

Voltage Measurement Range (BA1020)

0.1mV~100V (DC)

Test Signal (BA1020)

Sine AC 1KHz

Test Signal Current 1 (BA1020)

20mΩ file 50mA

Test Signal Current 2 (BA1020)

200mΩ/2Ω file 5mA

Test Signal Current 3 (BA1020)

20Ω/200Ω file 0.5mA

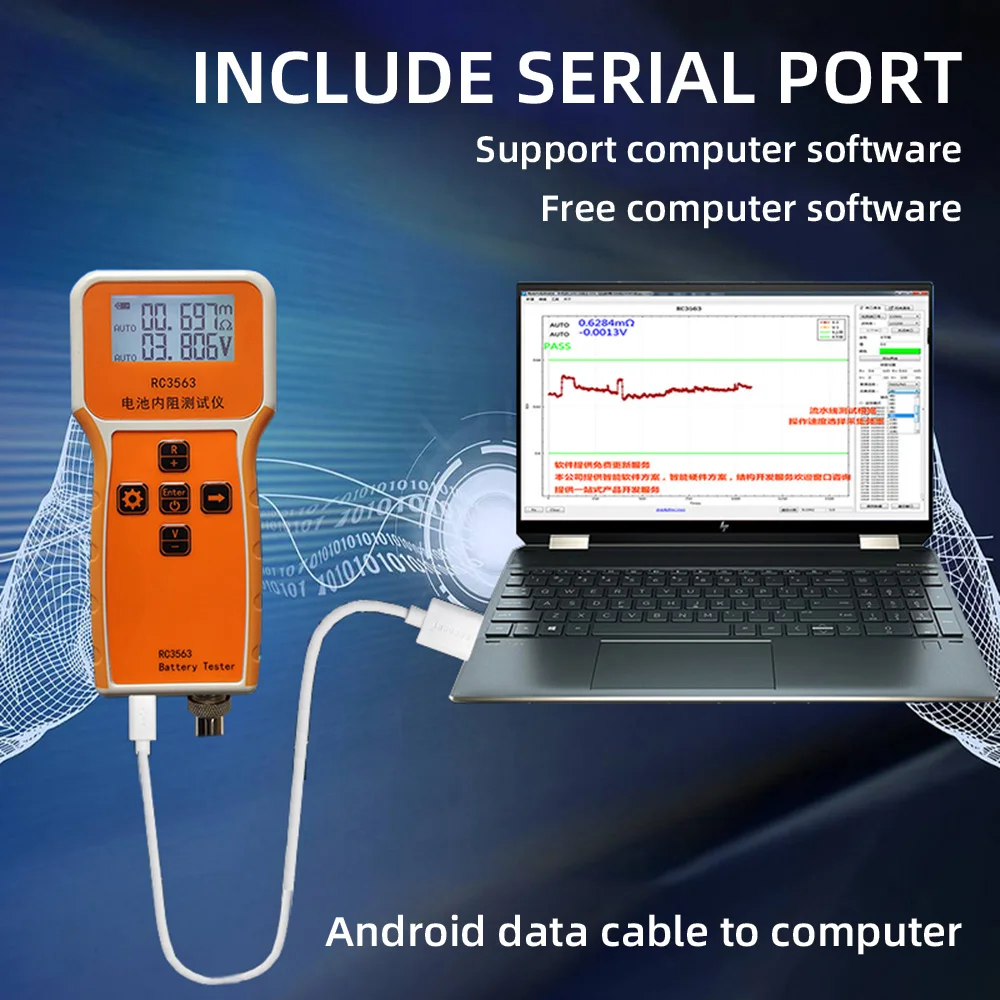

Communication Baud Rate (BA1020)

115200 (default)

Product Size (BA1020)

16.5*8*2.8cm

Description

Resistance Tester RC3563 Battery Voltage Internal Resistance High-precision Trithium Lithium Iron Phosphate 18650 True 4Wire
