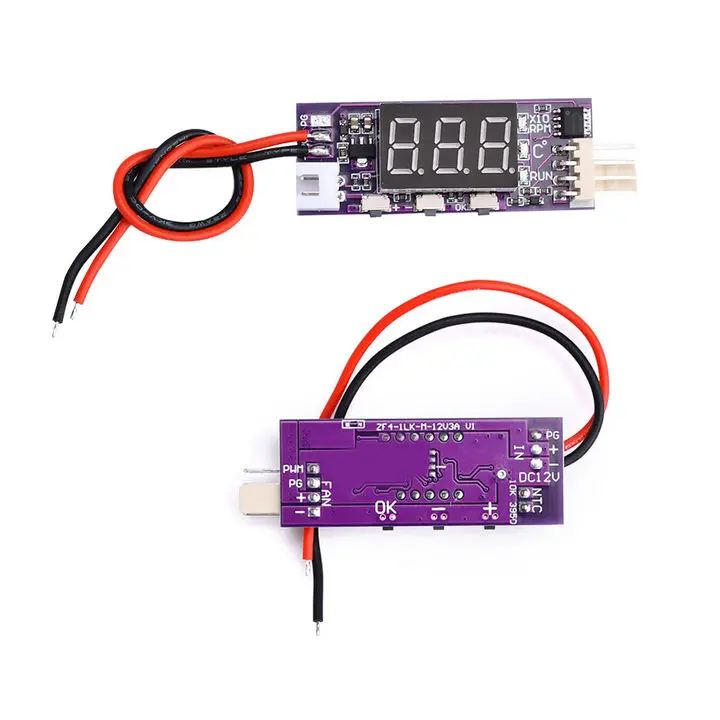

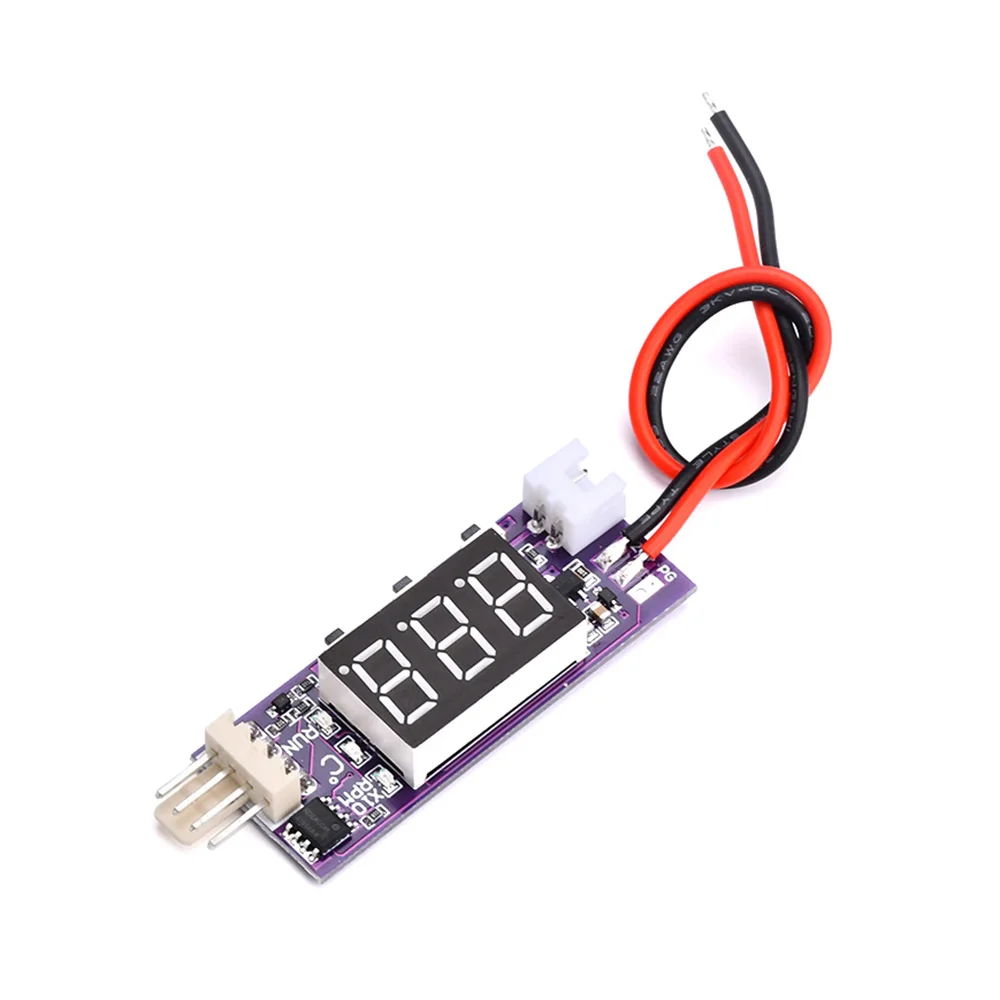

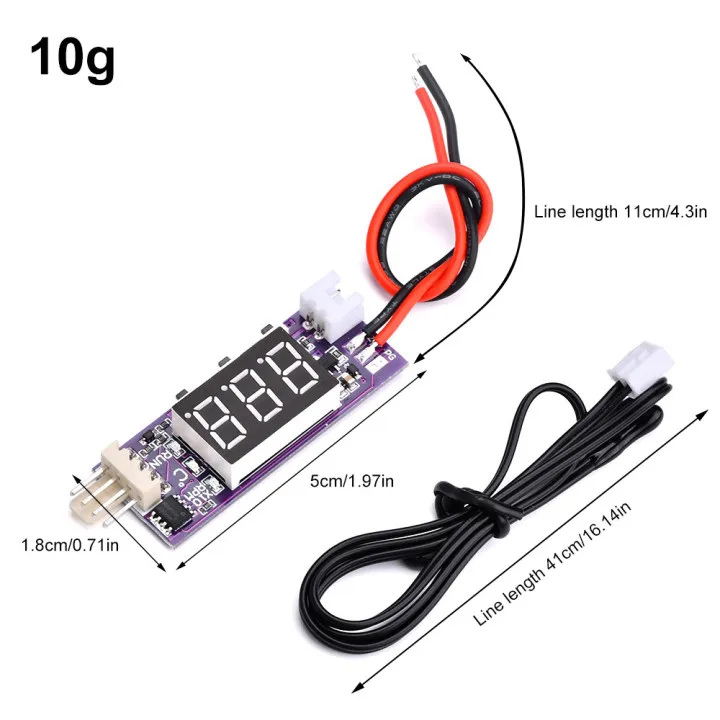

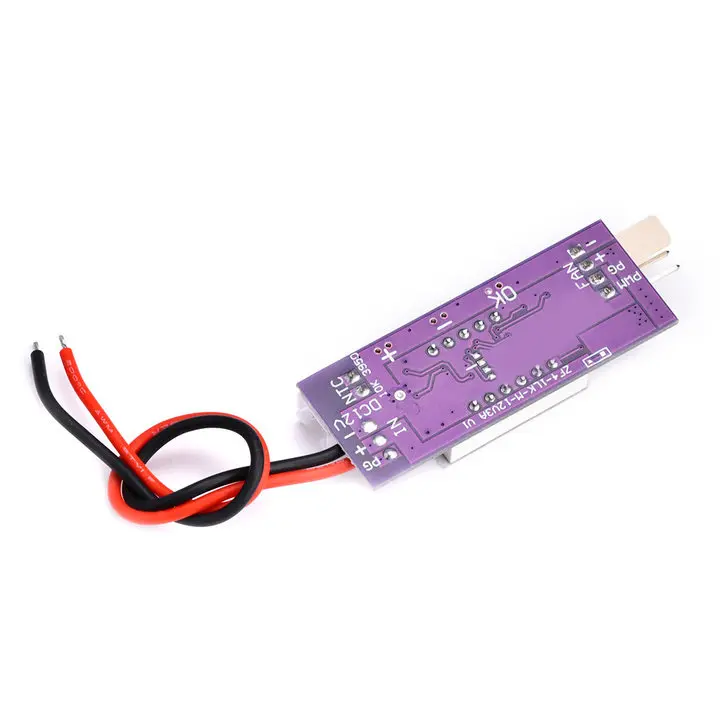

Fan Speed Controller DC12V PWM Fan Temperature Control Governor Small 4 Wire Temperature Speed Digital Display Supports 3A Internal Fan Shutdown

Product Features

This DC12V PWM fan speed controller, with a voltage range of DC8-16V, supports a fan current of <=3.3A and has a circuit self-consumption of <40mA.
It features a digital display, allowing you to easily monitor the temperature and speed, with a temperature measurement range of-9.9-99.9℃.
With a PWM range of 1-100 and a frequency of 25KHZ, this fan speed controller can effectively control the fan speed according to the temperature.
Certified with CE, it is a reliable device for internal fan shutdown and temperature control, suitable for various applications.
This small 4-wire temperature speed controller is a great choice for those who need to manage the fan speed and temperature in their electronic devices.

Specifications

Brand Name

Gaqqee

Motor Type

DC Motor

Model Number

Temperature Control Governor

Power supply voltage

DC12V

Voltage range

DC8-16V

Circuit self-consumption

<40mA

Fan current

<=3.3A

PWM range

1-100

PWM frequency

25KHZ

PWM signal amplitude

Temperature measurement range

-9.9-99.9℃

Temperature measurement error

<1.2°C/<2°C
