Planetary Reducer PX57 Ratio 4/ 6/ 10/ 16/ 24/ 36/ 64/ 96/ 100/ 216 Max 40N.m Nema23 57 Stepper Motor

Product Features

This planetary reducer PX57 with a ratio of 4/6/10/16/24/36/64/96/100/216 is suitable for Nema23 57 stepper motors.
With a maximum output torque of 40N. m and an input speed of 3000, it offers high-performance operation.
The CE certification ensures its quality and safety, meeting international standards.
With an efficiency of 95%/90%/85% and a protection class of IP65, it's reliable and durable.
The noise value is ≤ 60/65/70 DB, providing a quiet working environment for your machinery.

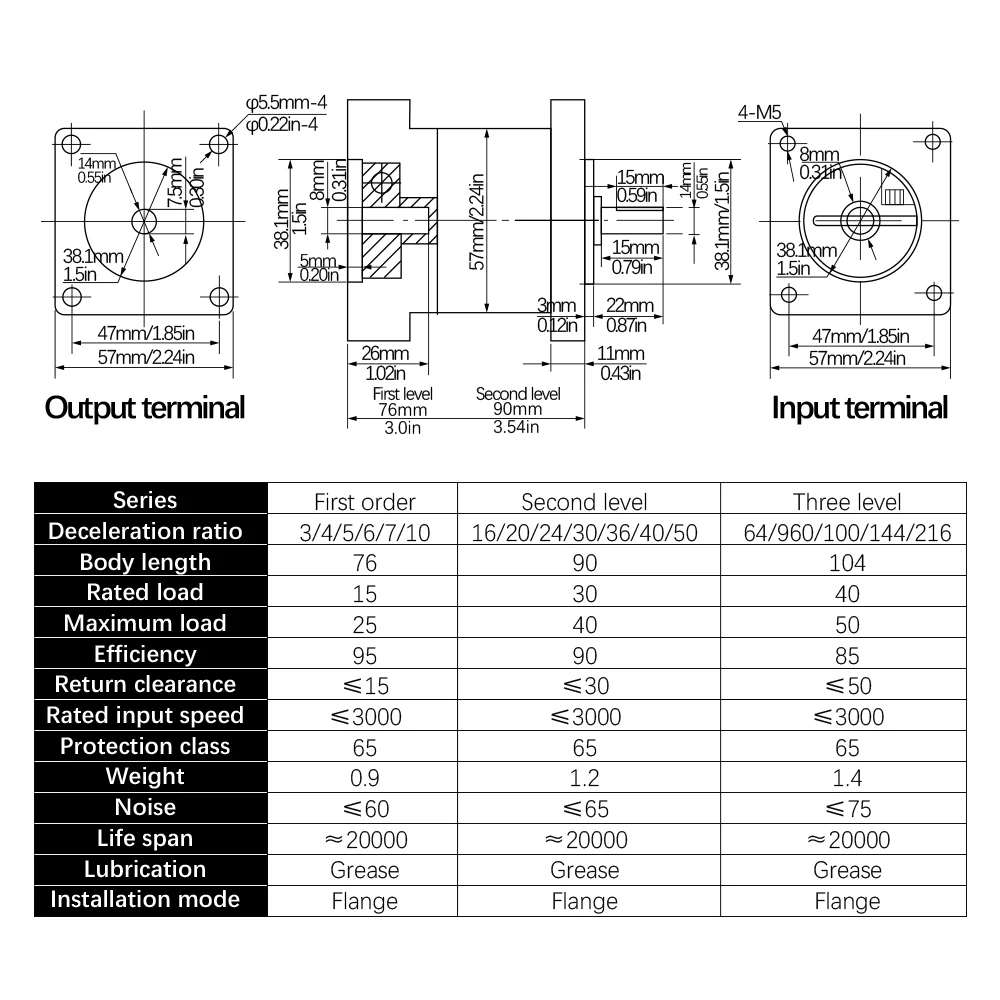

Specifications

Brand Name

XLWLH

Gearing Arrangement

Planetary

Model Number

PX57

Output Torque

40N.m

Input Speed

3000

Product name

Planetary Reducer

Ratio

4/6/10/16/24/36/64/96/100/216

Efficiency

95% 90% 85%

Protection class

IP65

Noise value

≤ 60/65/70 DB

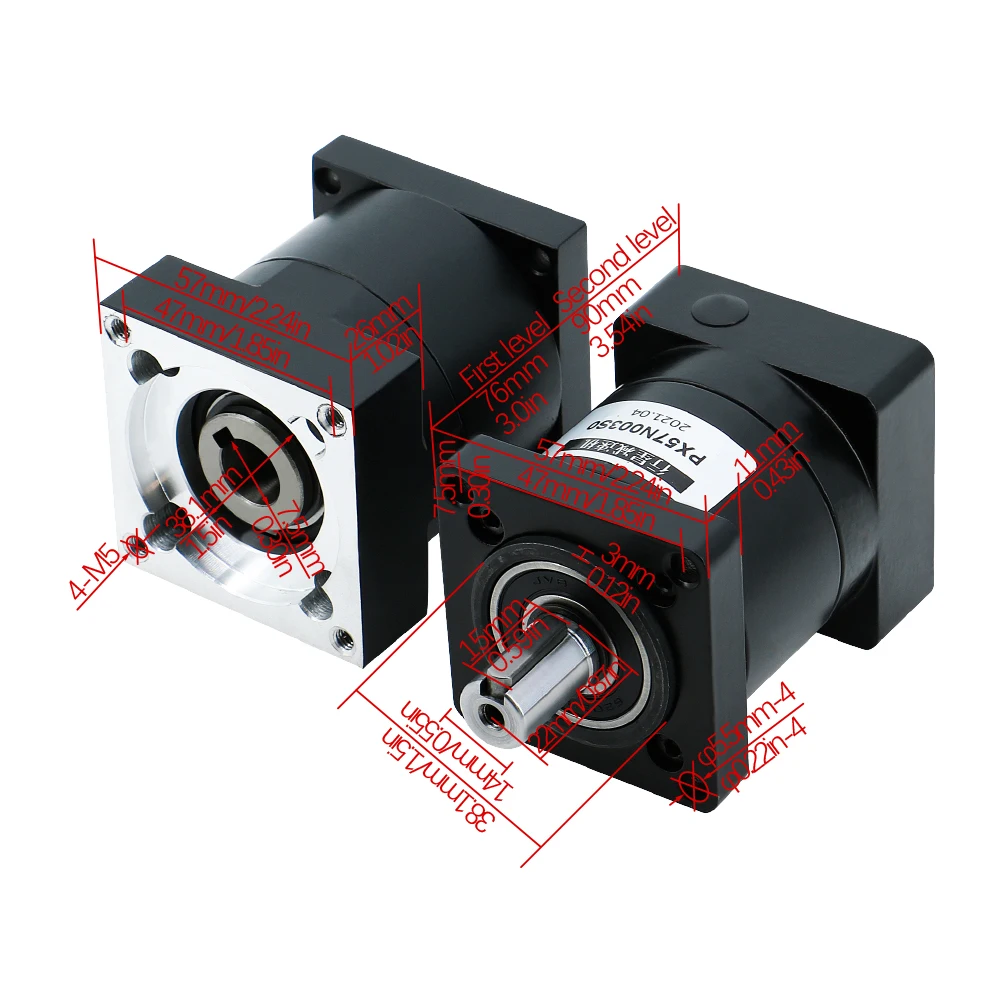

Input shaft

8mm

Output shaft

14mm

Description
