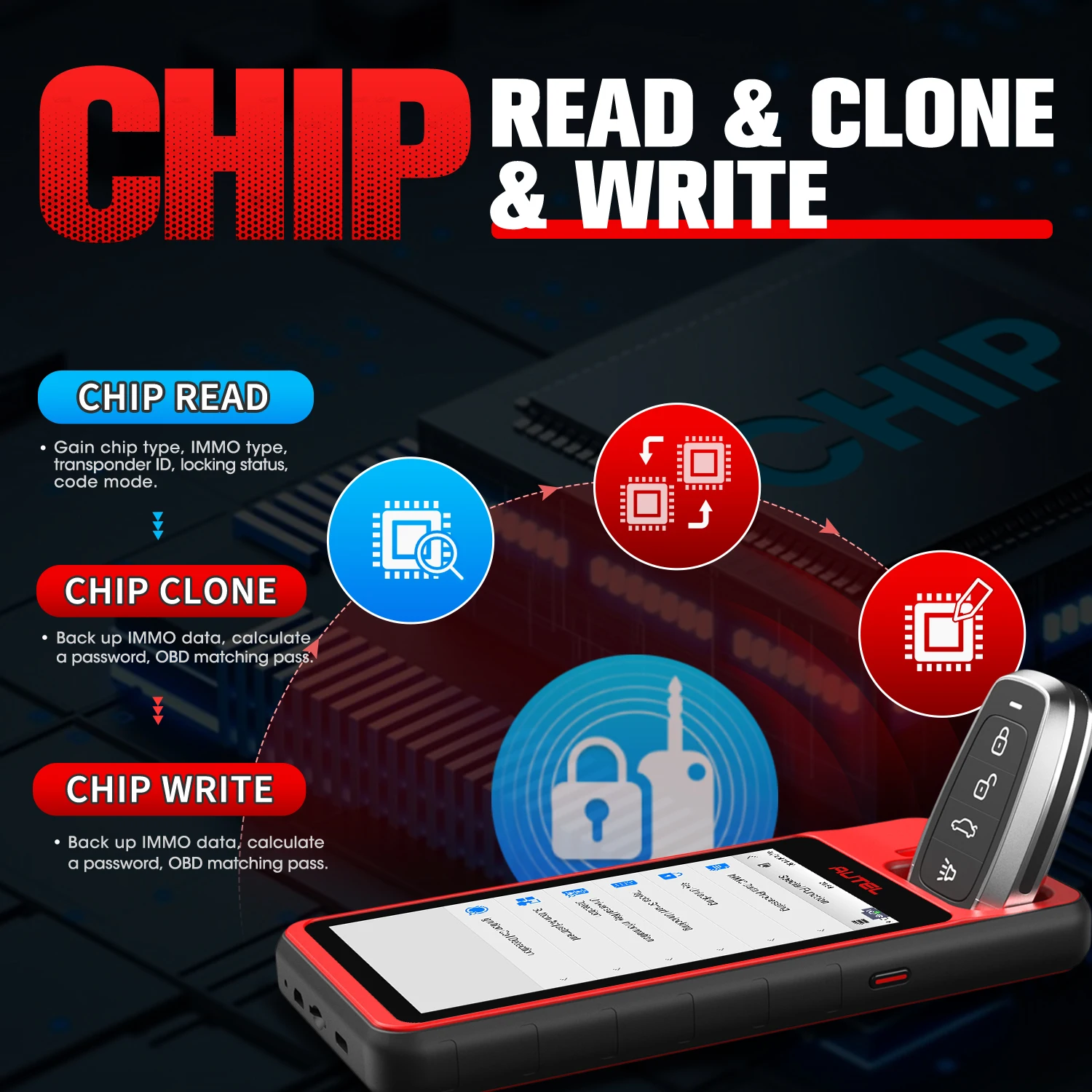

Autel MaxiIM KM100 KM100X Universal Key Generator Kit Lifetime Free Update 37+ Models AutoVIN All Key Lost PK IM508S 2025 Newest key programmer universal programmer

Product Features

The 2025 Newest Autel MaxiIM KM100 KM100X is a universal key generator kit with lifetime free updates. It supports 37+ models and can work with AutoVIN. It has a 1280 x 720 resolution display.
This key programmer is made of ABS material and has a mini USB 2.0 interface. It also has a Wi-Fi connection and a Micro SD card slot (up to 32GB). It is very convenient to use.
With a 3.7 V / 5000 mAh lithium-polymer battery and a charging input of 5V / 1.5A, it can provide around 4.5 hours of continuous use. It charges via a 5 VDC power supply.
It supports various automotive protocols such as ISO9141-2, ISO14230-2, etc. It can handle different types of cars and provides accurate key programming.
The Autel MaxiIM KM100X has an ambient light sensor for brightness auto changing and a power consumption of 500 mA (LCD on with default brightness, Wi-Fi on). It is suitable for different operating environments.

Specifications

Brand Name

Autel

Hign-concerned Chemical

None

Is Batteries Included

Yes

External Testing Certification

Material

ABS

Hardware Version

Key Generator

Item Length

7.9

Item Type

Auto Key Programmer

Special Features

Wifi

Software Version

2025 Newset MaxiIM KM100X

Display Resolution

1280 x 720 resolution

Item Width

0.87

Model Name

Autel MaxiIM KM100X KM100

Item Height

3.5

Item Weight

0.78

Voltage

5 V/2 A

Software Update

Yes

Electronic

Yes

Power (W)

7.5W

Communication Interface

USB

Connectivity

Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 32GB)

Sensors

Ambient light sensor for brightness auto changing

Power and Battery1

3.7 V/5000 mAh lithium-polymer battery

Power and Battery2

Charges via 5 VDC power supply

Tested Battery Life

Around 4.5 hours of continuous use

Battery Charging Input

5V/1.5A

Power Consumption

500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V

Operating Temp

0 to 50°C (32 to 122°F)

Storage Temp

-20 to 60°C (-4 to 140°F)

Operating Humidity

5%-95% non-condensing

Net Weight

885g(2.31|b.)

Supported Automotive Protocols1

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW

Supported Automotive Protocols2

SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed,

Supported Automotive Protocols3

Lowspeed and Singlewire CAN, fault-tolerant CAN),

Supported Automotive Protocols4

SAE J2610,GM UART,UART Echo Byte Protocol,

Supported Automotive Protocols5

Honda Diag-H Protocol, TP2.0, TP1.6

Description

Autel MaxiIM KM100 KM100X Universal Key Generator Kit Lifetime Free Update 37+ Models AutoVIN All Key Lost PK IM508S 2025 Newest key programmer universal programmer
