UV Curing Lamp 3535 UV LED Module 120W UV LED365nm Chip Led 385nm Light 405nm Quartz Lens For Curing

Product Features

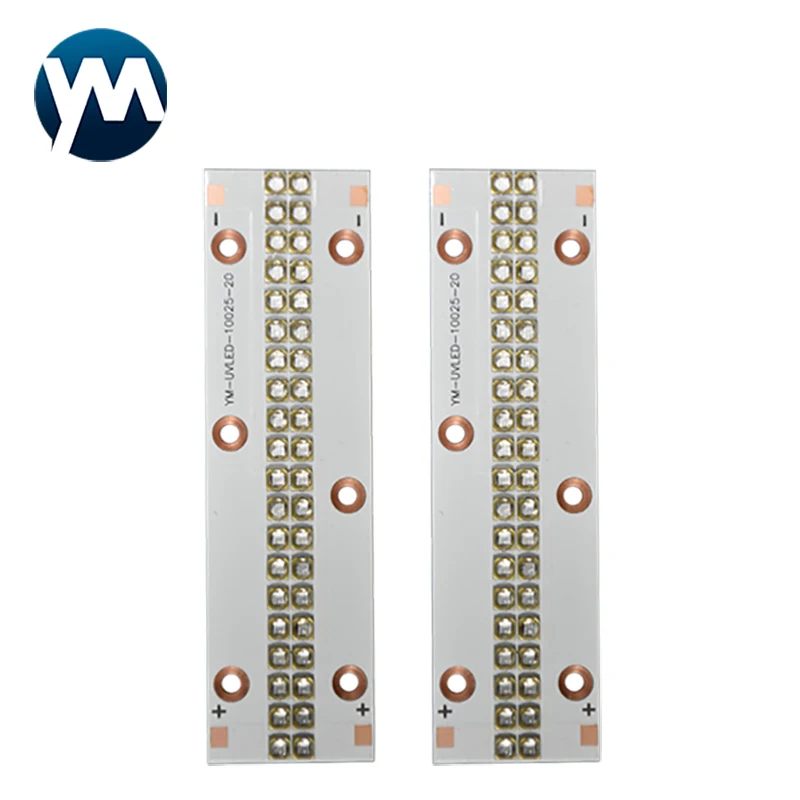

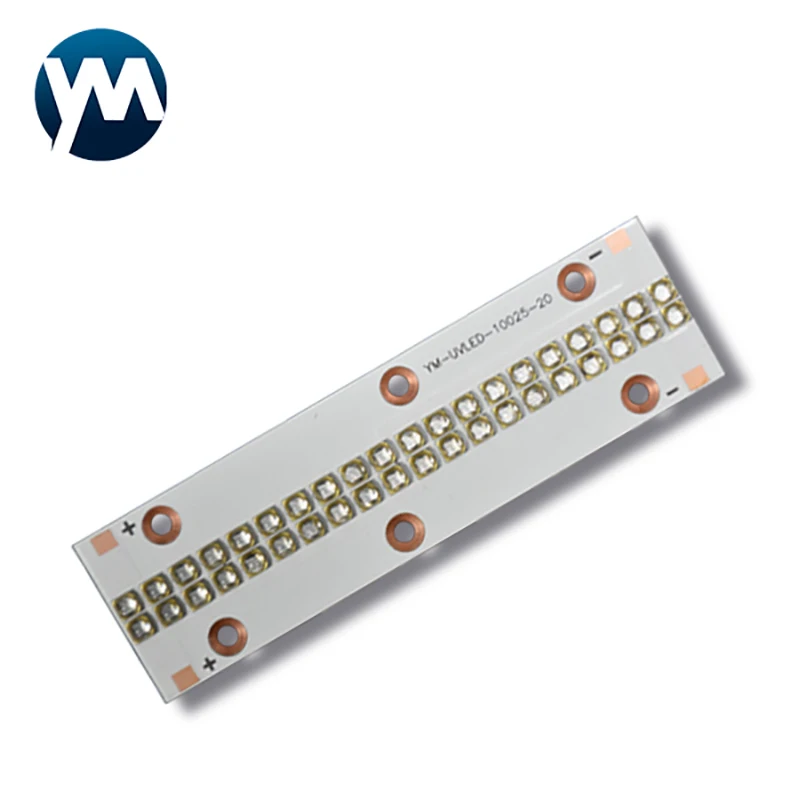

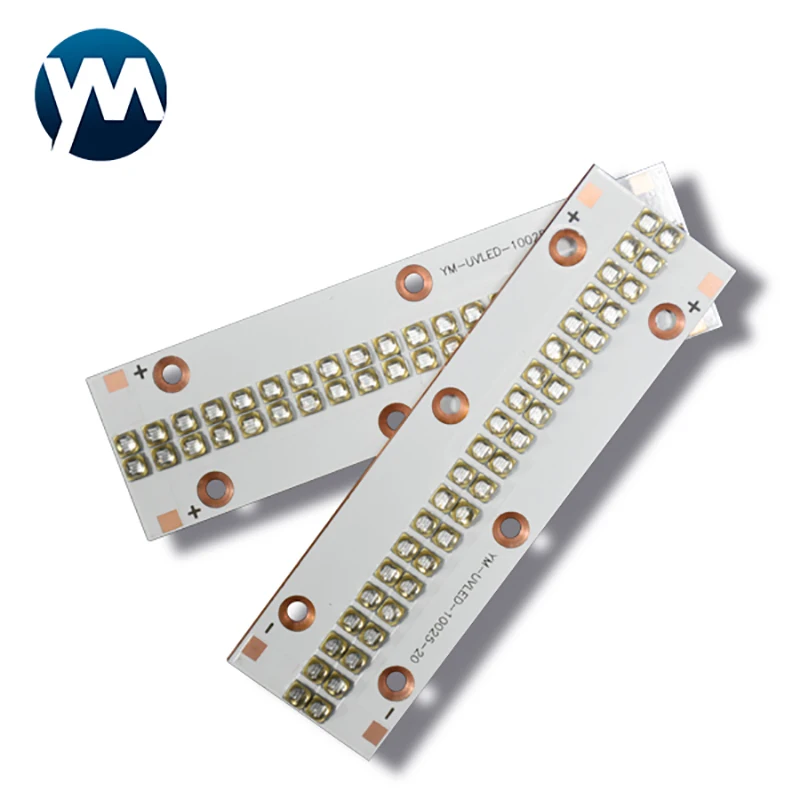

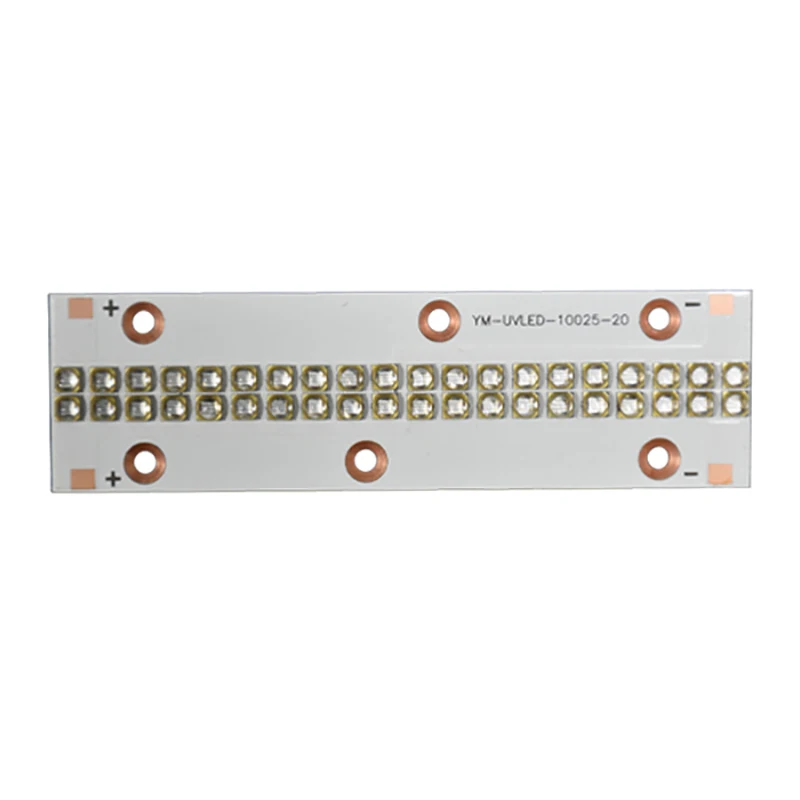

This UV curing lamp features a 120W UV LED module with 40 pcs of 3535 SMD diode type. It emits light at wavelengths of 365nm, 385nm, 395nm, and 405nm, suitable for various UV printing industries.
With a quartz lens and a 60 or 120-degree view angle, it provides efficient and uniform UV light distribution. The high-temperature quartz lens package module ensures stable performance.

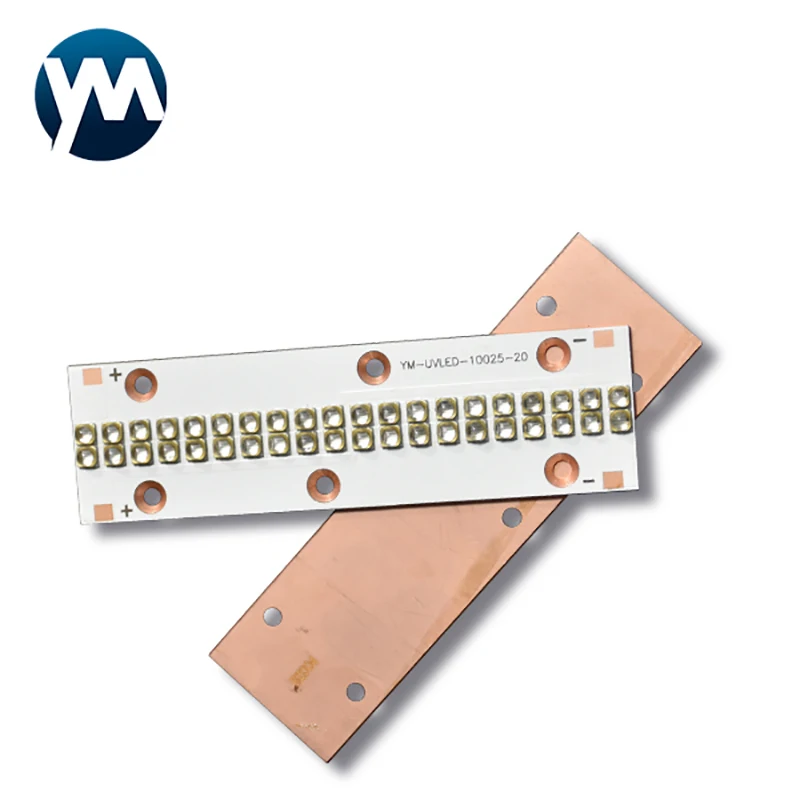

Made with a 2.0mm copper substrate, it has good heat dissipation. The module size of 100mm*29mm*2.0mm makes it compact and easy to install.
It operates at a voltage of 34-38V and a current of 2-2.8A. The chip materials are from LG, Seoul, and Epileds, ensuring high-quality light output.
With a 1-year warranty, this UV curing lamp is a reliable choice for businesses and individuals in need of UV curing solutions, offering long-term performance and support.

Specifications

Item Type

UV GEL Curing Lamps

Model Number

YM-10029

Product Name

UV LED Module 10029

Power

120W

Color

Number of lamp beads

40 pcs

Diode type

3535 smd

Lens Material of Diode

Silica gel or quartz

View Angle of the Lens

60, 120 degree

Module size

100mm*29mm*2.0mm

Luminous Size

100mm*8mm

Wavelength

365nm,385nm,395nm,405nm

Voltage

34-38V

Current

2-2.8A

Chip Material

LG,Seoul,Epileds

Encapsulation process

High temperature quartz lens package module

Module material

2.0mm Copper substrate

Application

Apply in various UV printing industries, painting,

Description

UV Curing Lamp 3535 UV LED Module 120W UV LED365nm Chip Led 385nm Light 405nm Quartz Lens For Curing
