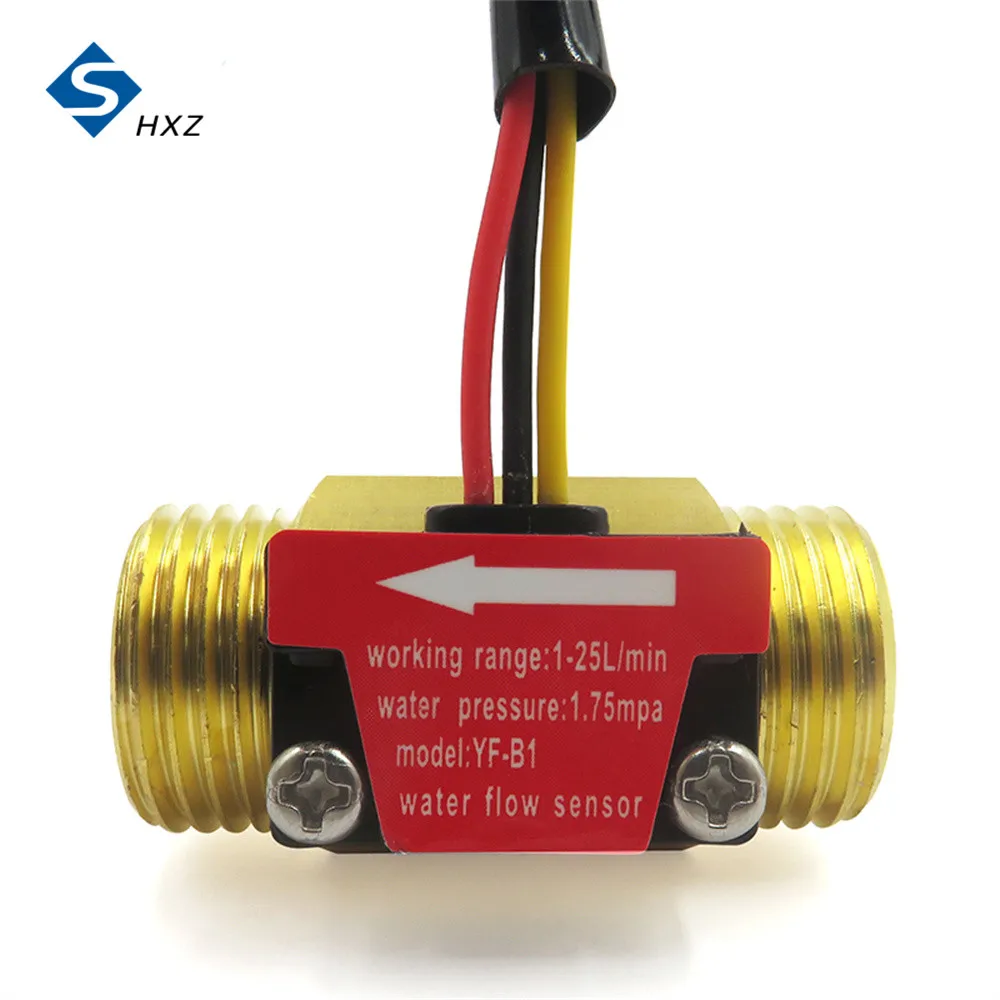

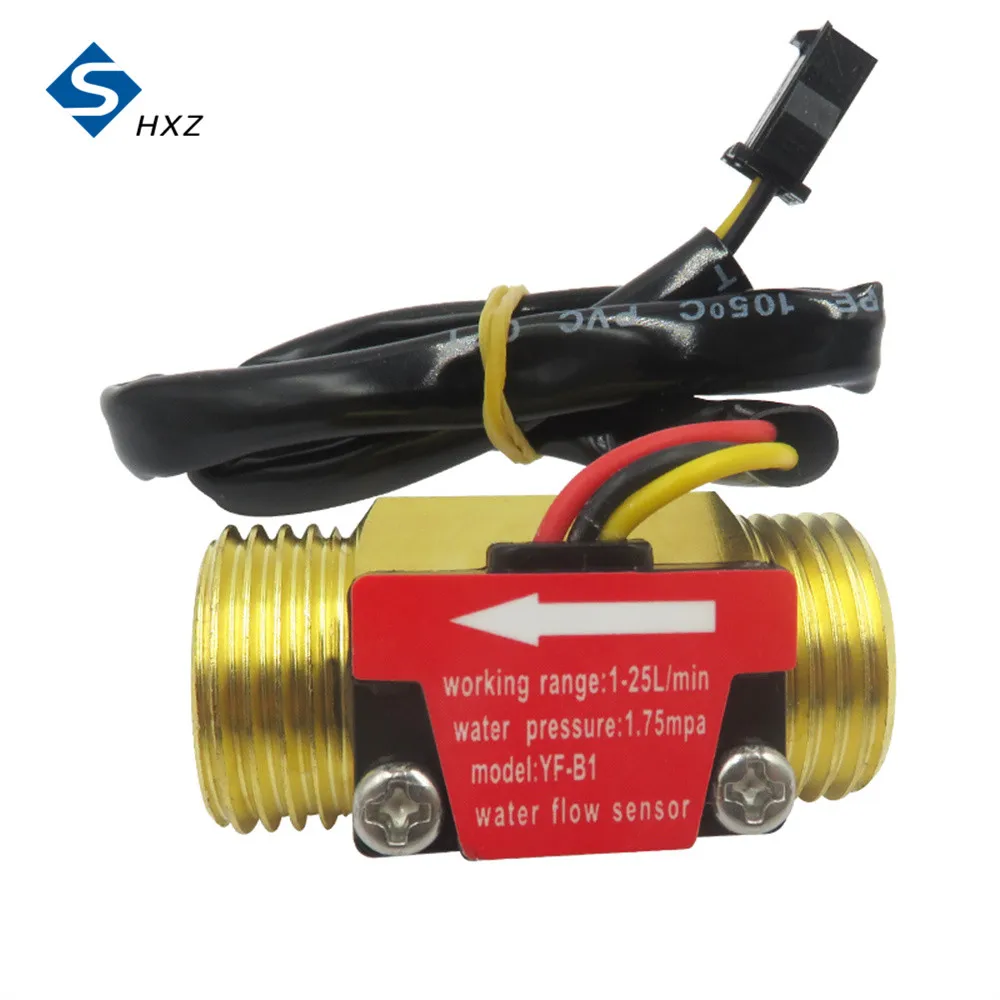

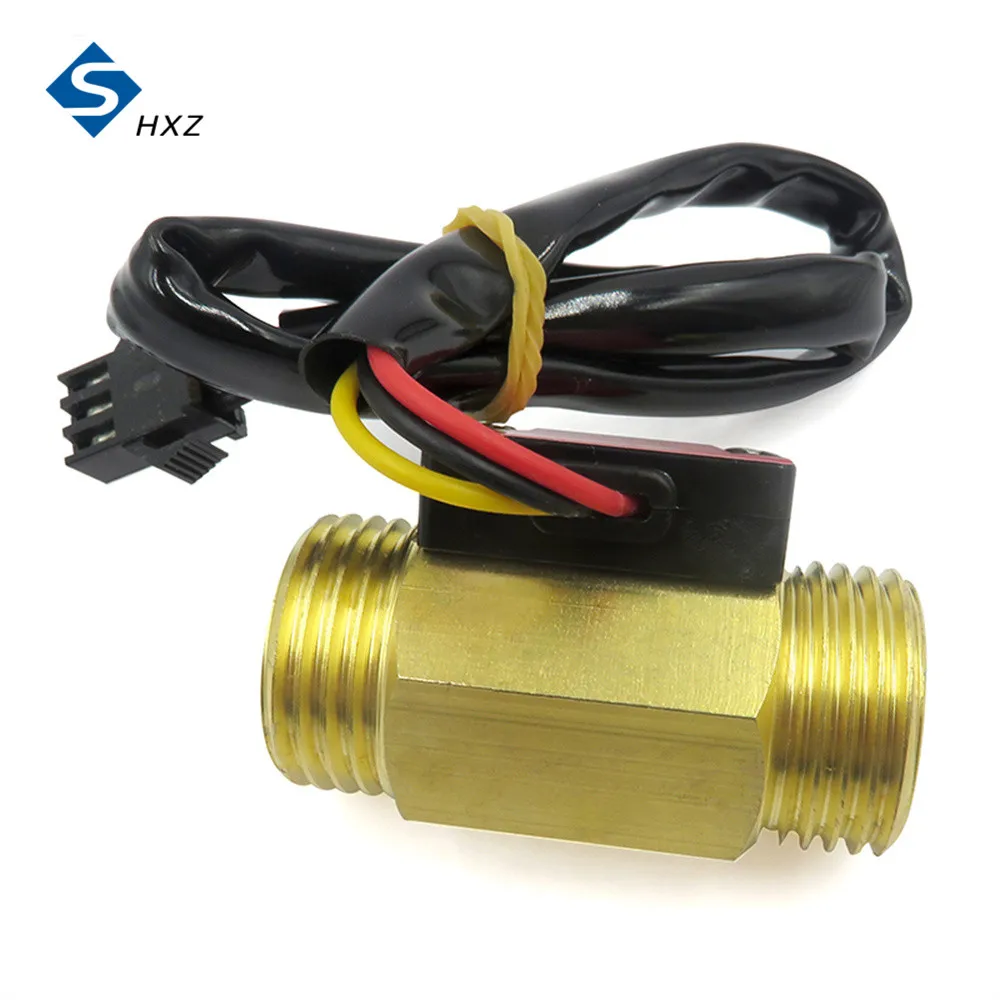

DC5-18V G1/2" Water Flow Sensor Hall Sensor Switch Industrial Flowmeter Water Flow 1-25L/min 1.75MPa Pressure YF-B1 water flow sensor

Product Features

This DC5-18V G1/2" water flow sensor hall sensor switch industrial flowmeter is certified with CE, ensuring high-quality and reliable performance for measuring water flow in industrial applications.
With a flow range of 1-25L/min and a water pressure resistance of ≤1.75MPa, it can accurately measure water flow under different conditions, providing precise data for your system.
The interface size of 4 points (G1/2) and the specific inner and outer diameters of the water inlet and outlet make it easy to install and integrate into your existing water system.
The output pulse high level and duty cycle specifications ensure stable and accurate data transmission, allowing for effective monitoring and control of the water flow.
Suitable for DIY electrical projects or industrial use, this water flow sensor offers great versatility and can meet the needs of different users.

Specifications

Brand Name

Gaqqee

DIY Supplies

ELECTRICAL

Model Number

YF-B1

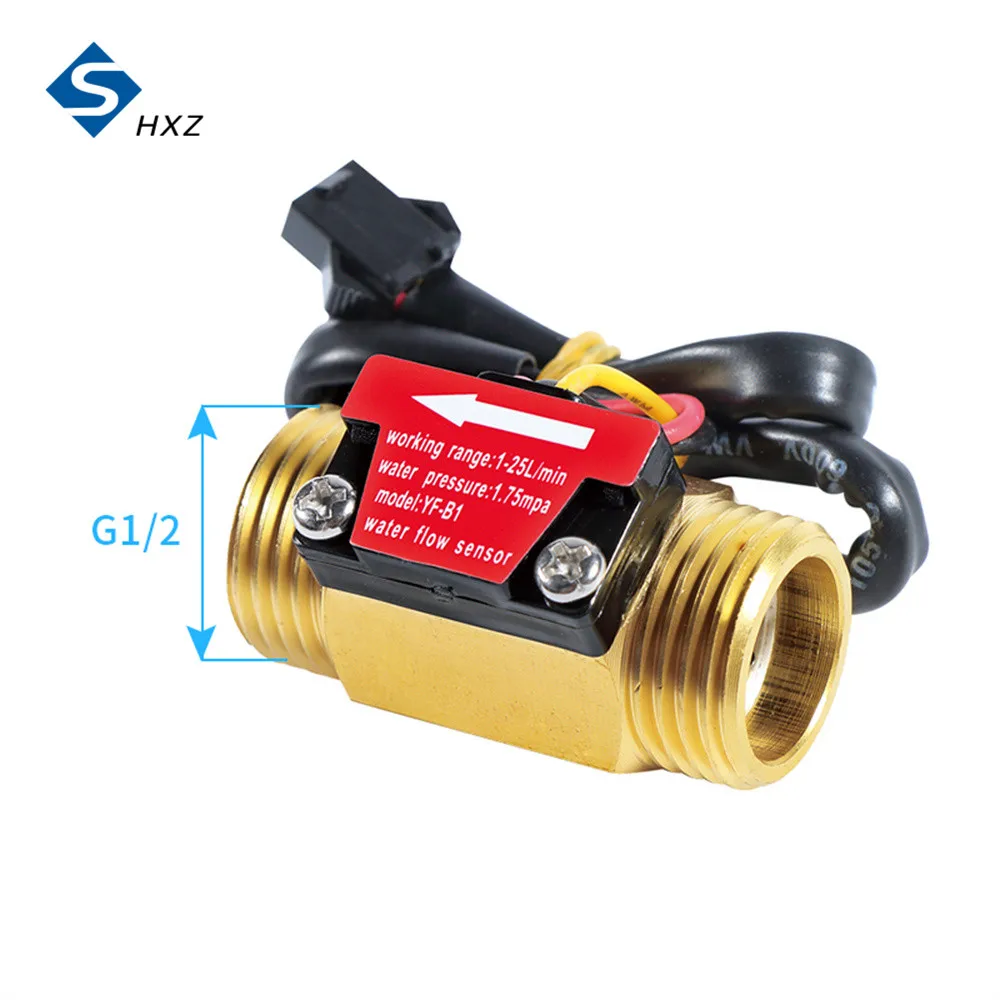

Interface size

4 points (G1/2)

Working voltage range

DC5~18V

Inner diameter

inner diameter water inlet 15.4

Outer diameter

water outlet 13.5mm/ outer diameter 20.5mm

Thread length

9.3mm

Water pressure resistance

≤1.75MPa

Output pulse high level

>DC4.7V (input voltage DC 5V)

Output pulse duty cycle

50%±10%

Insulation resistance

>100MΩ

Flow range

(at1~25L\MIN) ±3%

Pulse frequency

(Hz)=[11*Q]±5%(Q-Flow L/min)

semi_Choice

yes

Description

DC5-18V G1/2" Water Flow Sensor Hall Sensor Switch Industrial Flowmeter Water Flow 1-25L/min 1.75MPa Pressure YF-B1 water flow sensor
