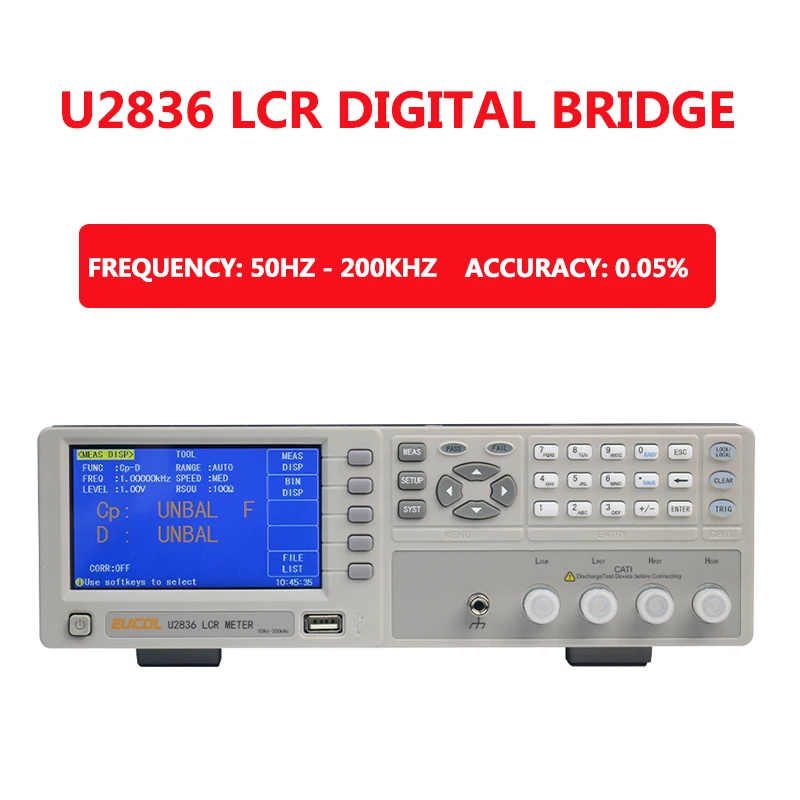

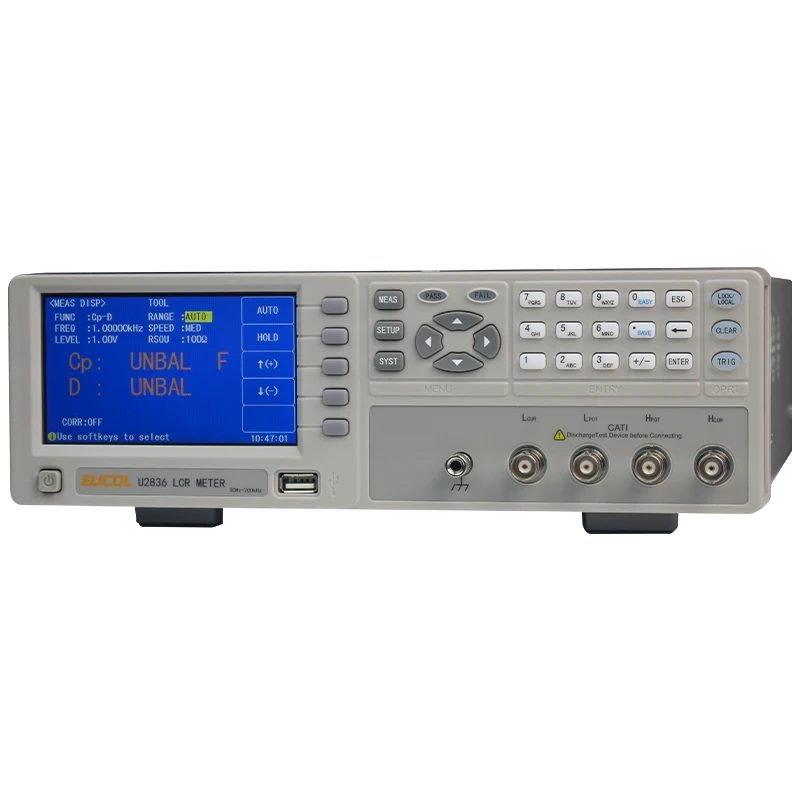

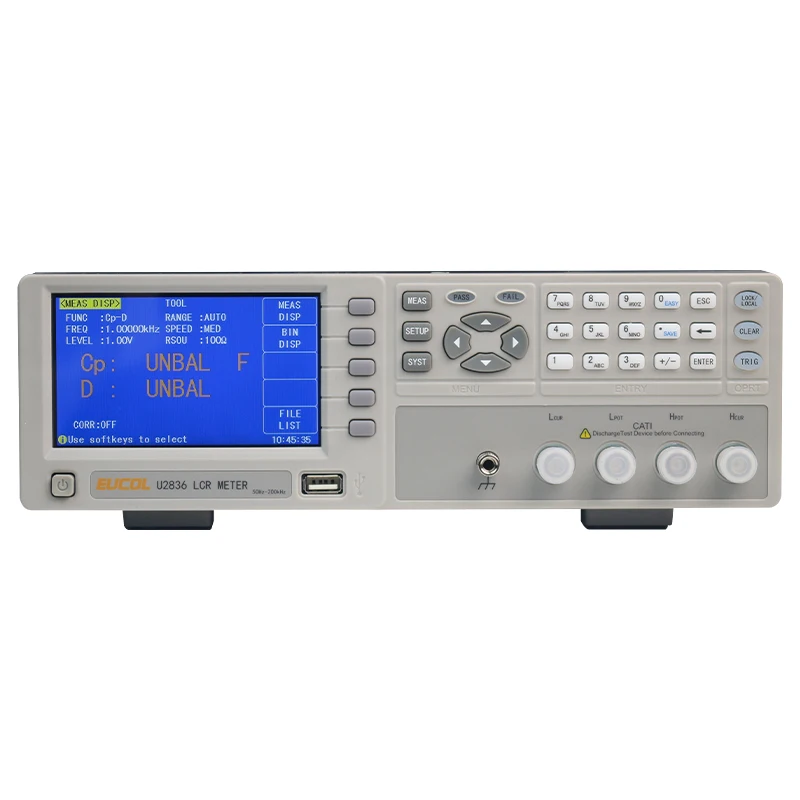

Resistance tester U2836LCR Digital bridge tester 50-200kHz Resistance, Capacitance, and Inductance tester

Product Features

The U2836LCR digital bridge tester can measure resistance, capacitance, and inductance in the range of 0.00001Ω~99.9999MΩ with high accuracy.
It has a frequency range of 50Hz-200kHz with a resolution of 10mHz, providing precise measurement results.
With a 4.3-inch TFT color screen and a speed of 50 meas/second, this tester offers clear and fast data display.
The 5-bin comparators and PASS/FAIL LED display of this tester make it easy to evaluate the test results.
Equipped with multiple interfaces such as RS232C/USB-HOST/USB-CDC/USB-TMC/HANDLER, this tester is highly versatile for different applications.

Specifications

Brand Name

Tuodapu

DIY Supplies

ELECTRICAL

Model Number

U2836

Measuring Range

0.00001Ω~99.9999MΩ

Dimensions

280*88*320mm

Testing Voltage

...

Operating Temperature

0°C-40°C

Accuracy Class

0.05%, six digits resolution

Display Type

Digital Only

Frequency

50Hz-200kHz, resolution:10mHz

Signal Level

10mV-2.0V; resolution:10mV

Speed

50 meas/second

Display

480*272,4.3-inch TFT color screen

Comparators

5 bins, PASS/FAIL LED display

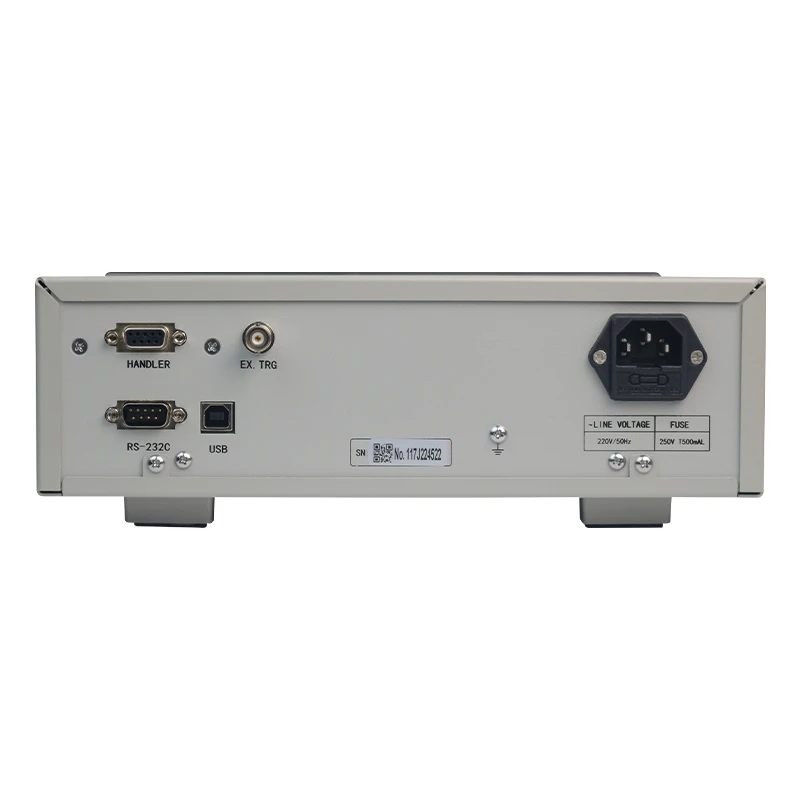

Interfaces

RS232C/USB-HOST/USB-CDC/ USB-TMC/HANDLER

Certificate

ISO CE

Usage 1

Auto Testing Machine

Usage 2

Universal Testing Machine

Description

Resistance tester U2836LCR Digital bridge tester 50-200kHz Resistance, Capacitance, and Inductance tester
