Nema 23 3.0N.m Closed Loop Stepper Motor kits 3.0 Nm 425Oz-in Nema23 stepper motor and drivers / servo motor kits stepper motor servo motor

Product Features

This Nema 23 3.0N. m closed-loop stepper motor kit comes with a 3.0N. m holding torque, providing powerful performance.
It has a step angle of 1.8 degrees and a 2-phase design, ensuring accurate control and movement.
The motor has a current/phase of 4.0A and a DC resistance of 0.48Ω, offering efficient operation.
With an input voltage of 16-70VDC, it can be used in a variety of applications.
Certified with UL, this motor kit meets high-quality standards for reliability and safety.

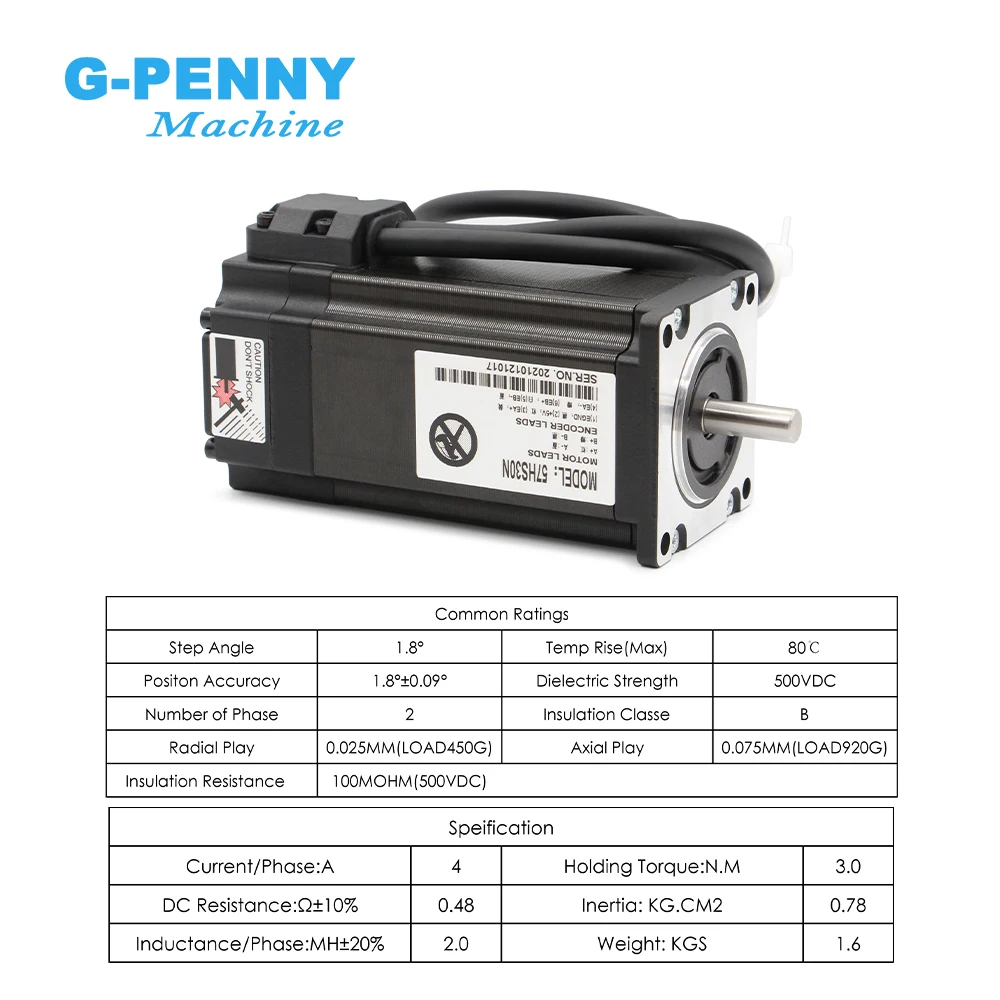

Specifications

Brand Name

G-PENNY MACHINE

Step Angle(degrees)

1.8

Phase

Model Number

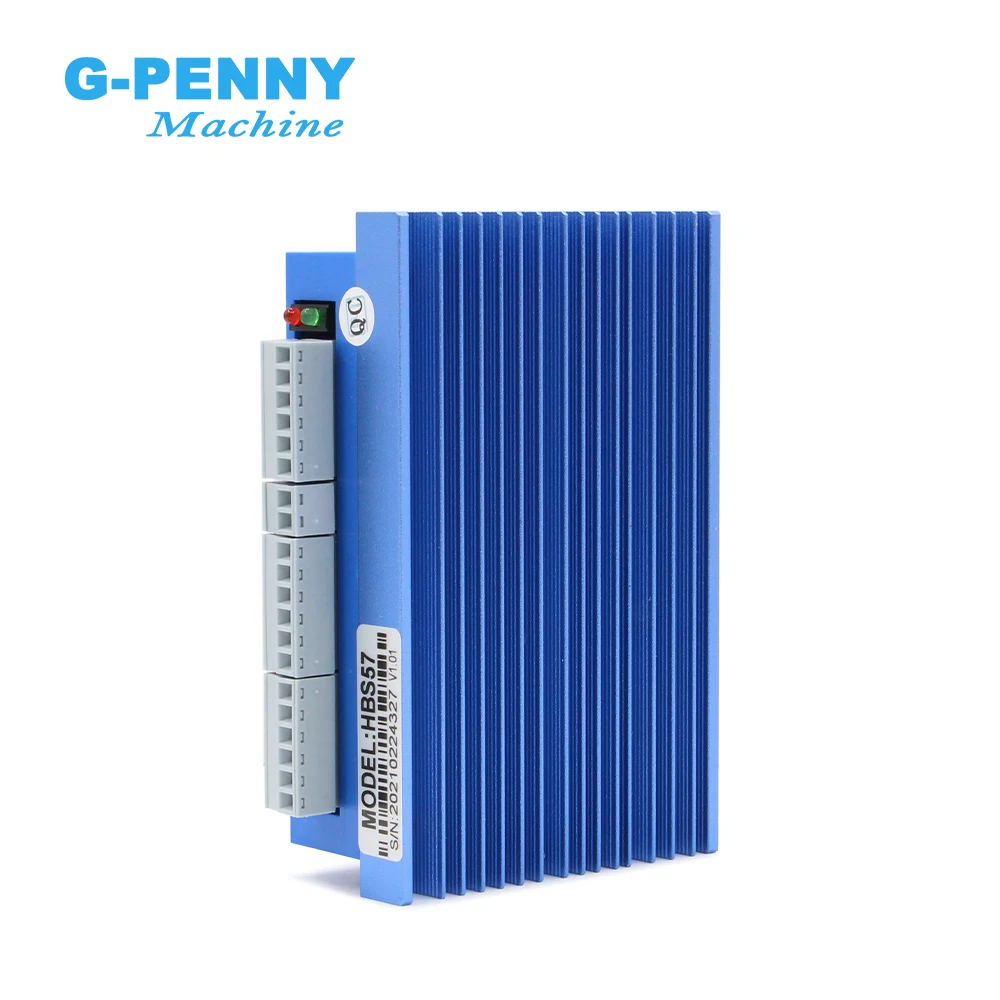

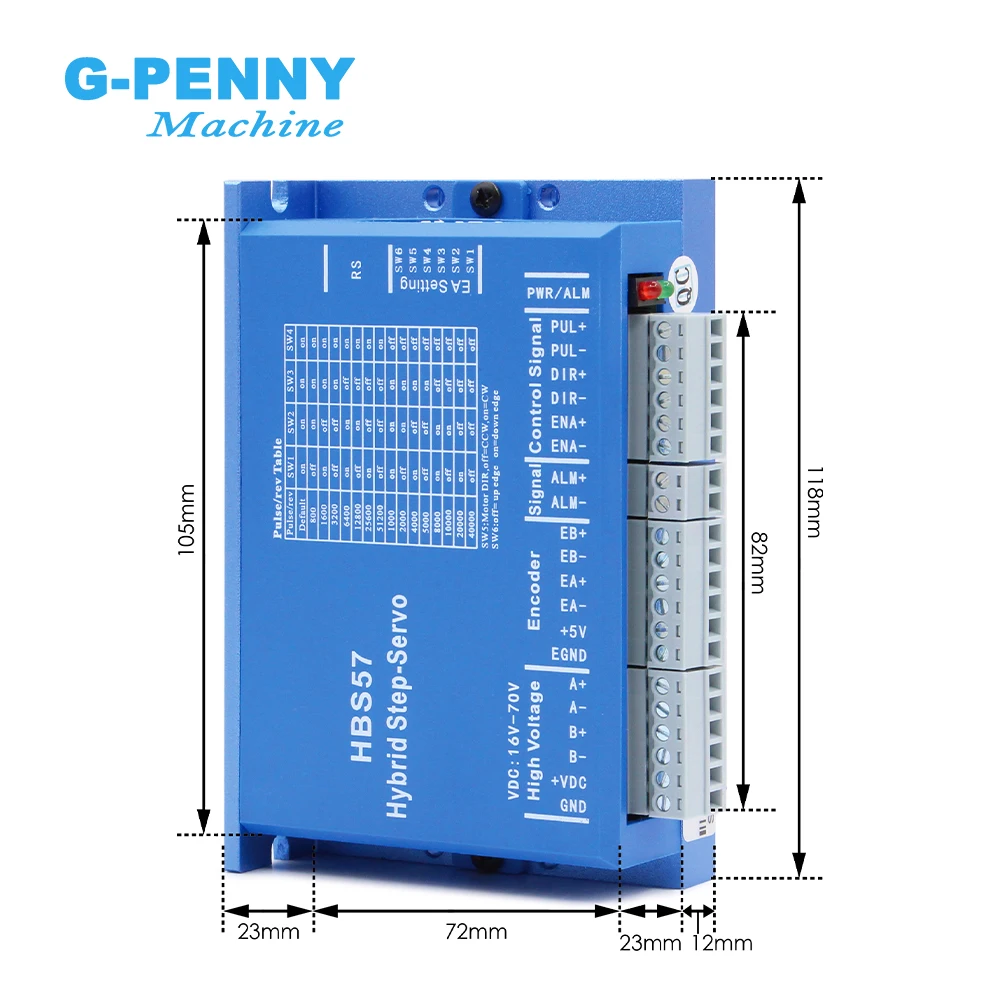

57HS30+HBS57

Holding Torque

3.0N.m

Current / Phase

4.0A

Type

Cloosed Loop

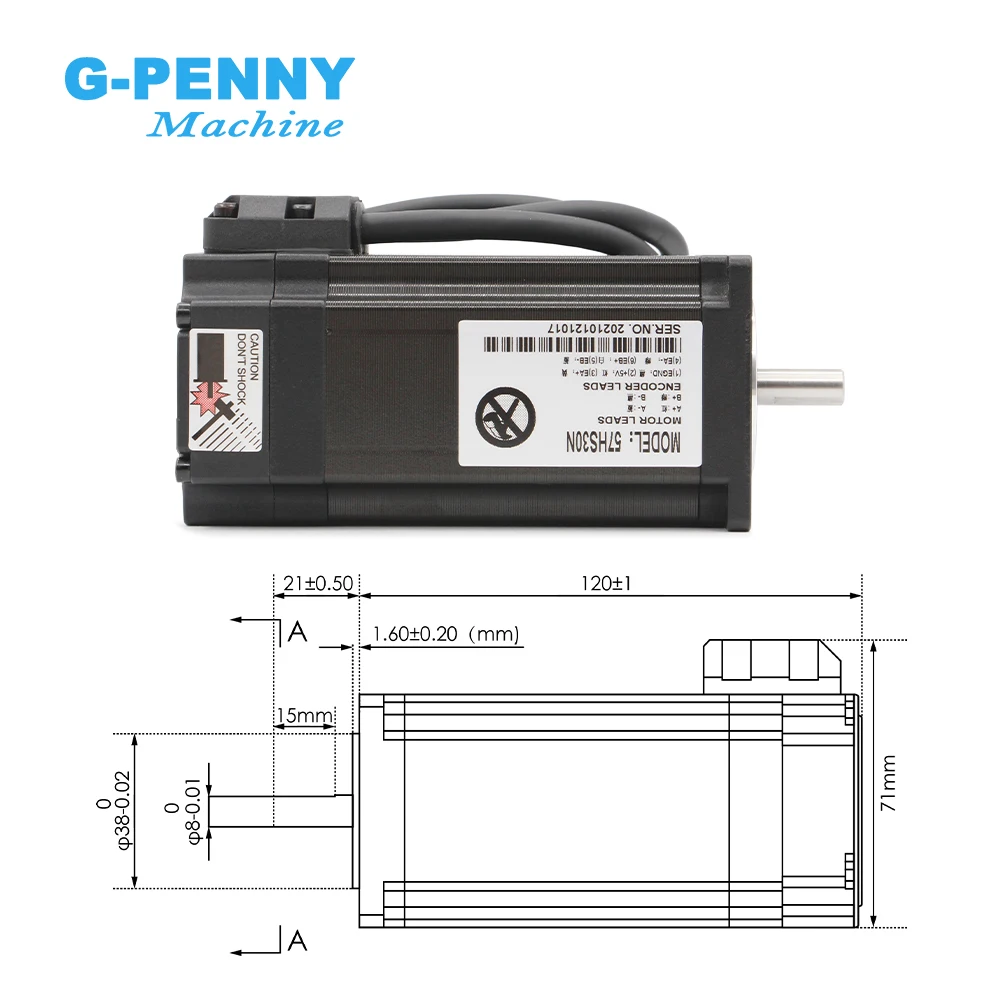

Size

57*57*120

Motor Holding Torque

3.0N.m

Motor Current

4.0A

DC Resistance

0.48Ω

Inductance

2.0M.h

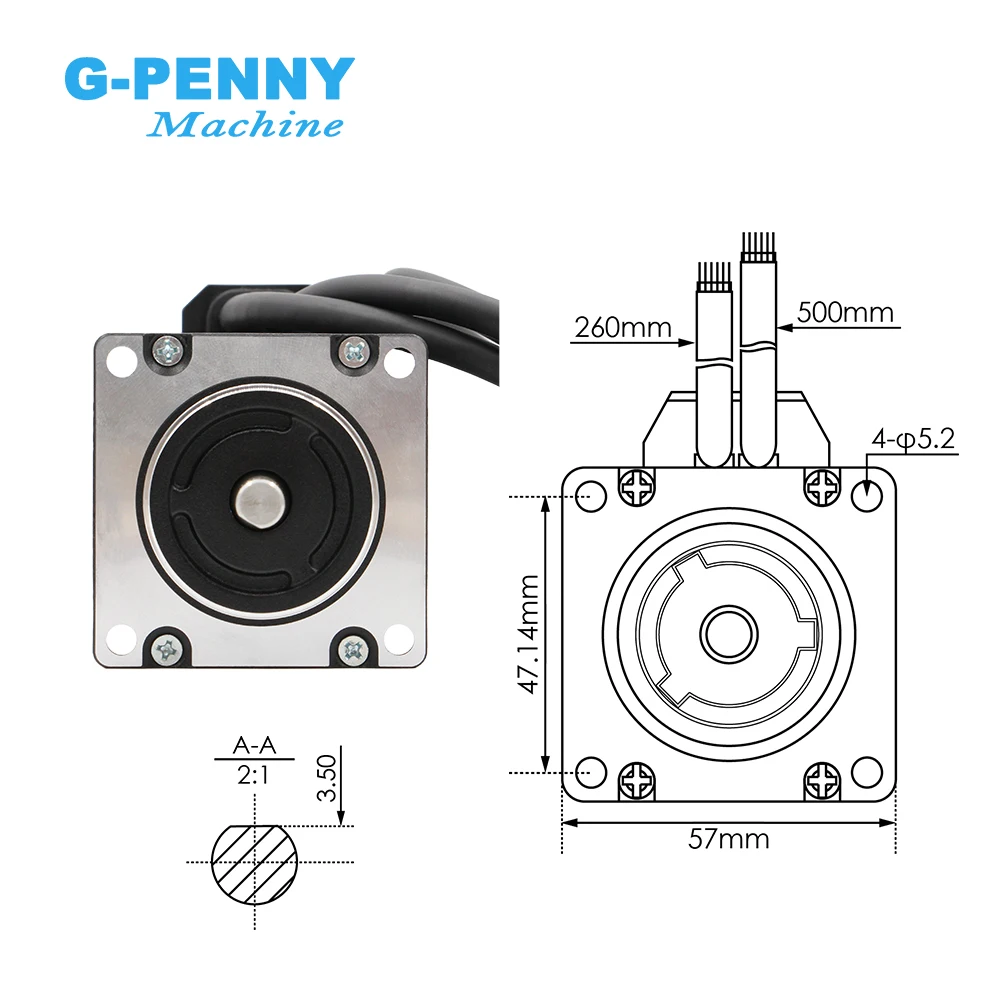

Motor Shaft Diameter

8mm

Input Voltage

16-70VDC(36V Typical value)

Continuous Current

4.5A 20kHz PWM

Maximum pulse frequency

200K

The default communication rate

57.6Kbps

Description

Nema 23 3.0N.m Closed Loop Stepper Motor kits 3.0 Nm 425Oz-in Nema23 stepper motor and drivers / servo motor kits stepper motor servo motor
