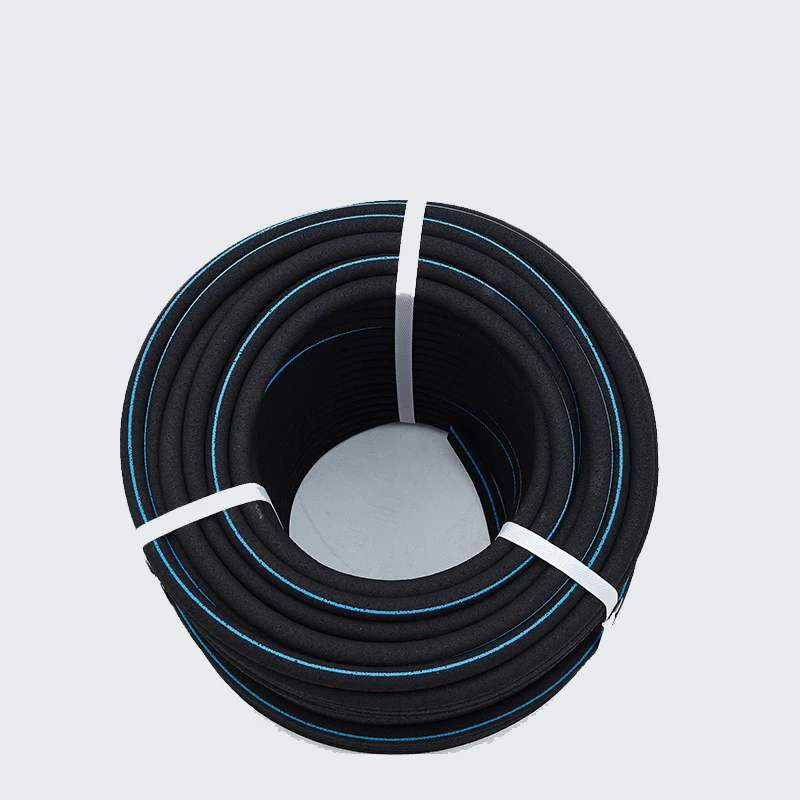

Aquarium Oxygen Pump Hose Aeration Tube 1/3/5m

Product Features

This aquarium oxygen pump hose aeration tube made of rubber raw material is suitable for various aquaculture applications, including fish tanks and ponds.
It has different tube calibres (10/12/16mm) and lengths (1/3/5m), providing options for different setups.
With a power of 1W and a 220V voltage, it offers efficient and energy-saving aeration.
It has a good dissolved oxygen effect, dense bubbles, and ultra-low energy consumption, ensuring a healthy environment for aquatic life.
Originating from Mainland China, it is a reliable and practical choice for aquaculture, with features like antibacterial and anti-clogging, and easy maintenance.

Specifications

Hign-concerned Chemical

None

Material

Raw material (rubber)

Power (W)

1 W

Tube Calibre

10/12/16mm

Voltage

220V

Plug Type

CN Plug

Model Number

GT-WF-byg

Type

fish

Product Name

Micro Porous Nano Aeration Tube

Processing Technology

heating and extrusion of raw materials

Internal Dia.

10/12/16mm

External Dia.

16/18/20/25mm

Roll*length

100/200m

Hole Diameter

0.03~ 0.06mm

Microporous Layout Density

700-1200 pieces/meter

Bubble Diameter

0.5-2mm (fresh water) 0.8-3mm (seawater)

Effective Aeration Rate

0.002~0.006m3/min. m

Air flow rate

0.1~0.4 m3/h. m

Service area

1-8m2/m

Diffusion distance

1.5-3m

Pressure range

0.05~0.10 MPa

Water depth range

0-5 meters

Supporting power

Each 1Kw motor power ≥ 200m microporous aeration tube

Pressure loss

≤ 0.40kpa at 1Kw=200m, underwater loss ≤ 5kp

Suitable configuration

Motor power 1Kw, matched with 150-200m microporous aeration pipe

Aeration tray

10m/80cm, 13m/100cm

Conventional installation

18 aeration trays per acre, and 24-30 aeration trays per acre for high-density aquaculture.

Power efficiency

The power consumption per mu is only 0.9kw, ensuring a dissolved oxygen content of over 5mg/L

Function

Good dissolved oxygen effect, dense bubbles, ultra-low energy consumption, microporous aeration, antibacterial and anti clogging, uniform gas output, safety and durability, good twisting, strong toughness, easy maintenance, cold resistance and wear resistance

Characteristic

Good dissolved oxygen effect, dense bubbles, ultra-low energy consumption, microporous aeration, antibacterial and anti clogging, uniform gas output, safe and durable, and convenient maintenance

Application

Industrialization, canvas ponds, outer ponds, small sheds, soil pits, greenhouses, fish ponds, fish tanks, shrimp ponds, aquaculture, river management, sewage treatment
