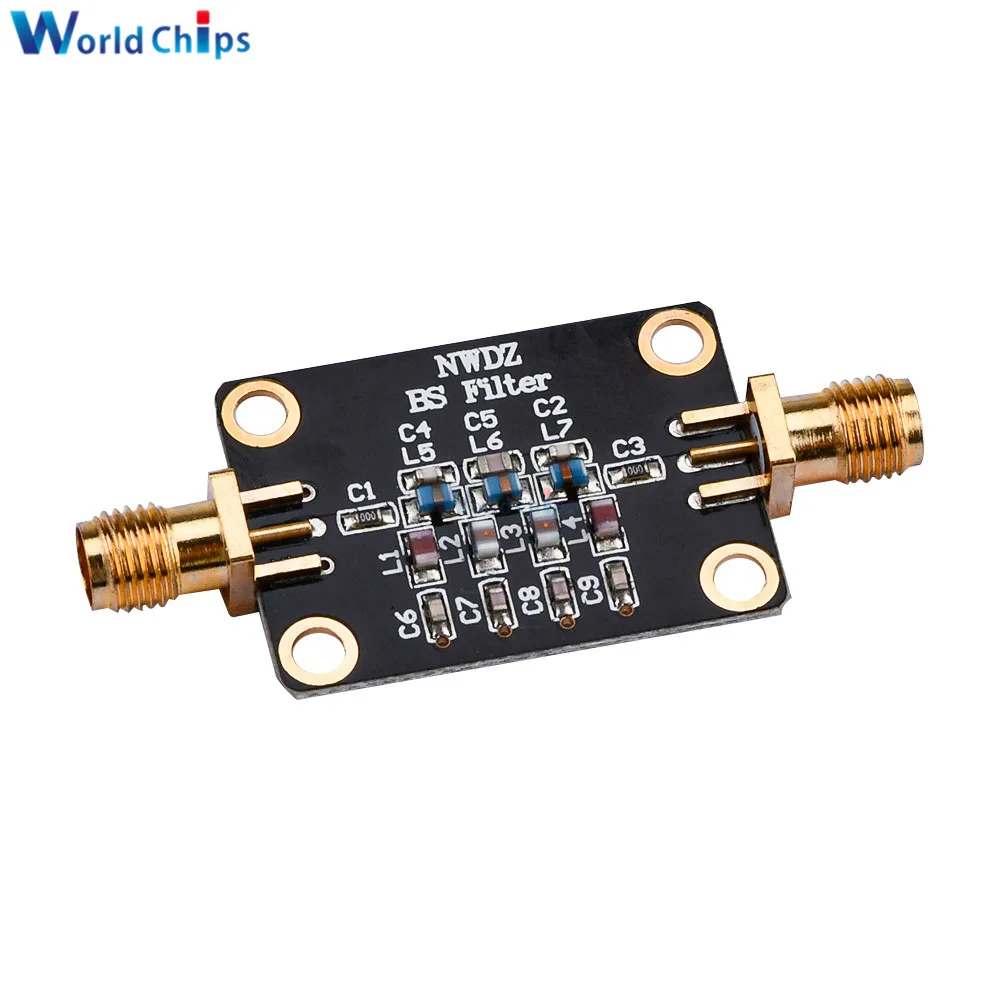

Power Filter Module 88-108MHz Band Stop Passive Notch Digital FM Interference Roof Accessories

Product Features

This power filter module with 88-108MHz band stop function is a passive notch digital FM interference roof accessory, offering effective interference filtering.
It has a characteristic impedance of 50ohm and an input frequency range of 70-120MHz, providing stable performance.
With impedance band rejection > 50dB@88-108MHz and in-band insertion loss < 1dB, it ensures high-quality signal filtering.
The maximum input power is +30dBm(1W), and the module bandwidth is 30M, meeting the needs of different applications.
It can be customized, and the SMA input and output interface makes it easy to connect to other devices.

Specifications

Type

LC Filter

Package Type

Surface Mount

Model Number

88-108MHz Band Stop Filter Module

Characteristic impedance

50ohm

Input frequency range

70- 120MHz

Impedance band rejection

> 50dB@88--108MHz

In-band insertion loss

< 1dB

Maximum input power

+30dBm(1W)

Module bandwidth

30M

Module input and output interface

SMA

semi_Choice

yes

Description
