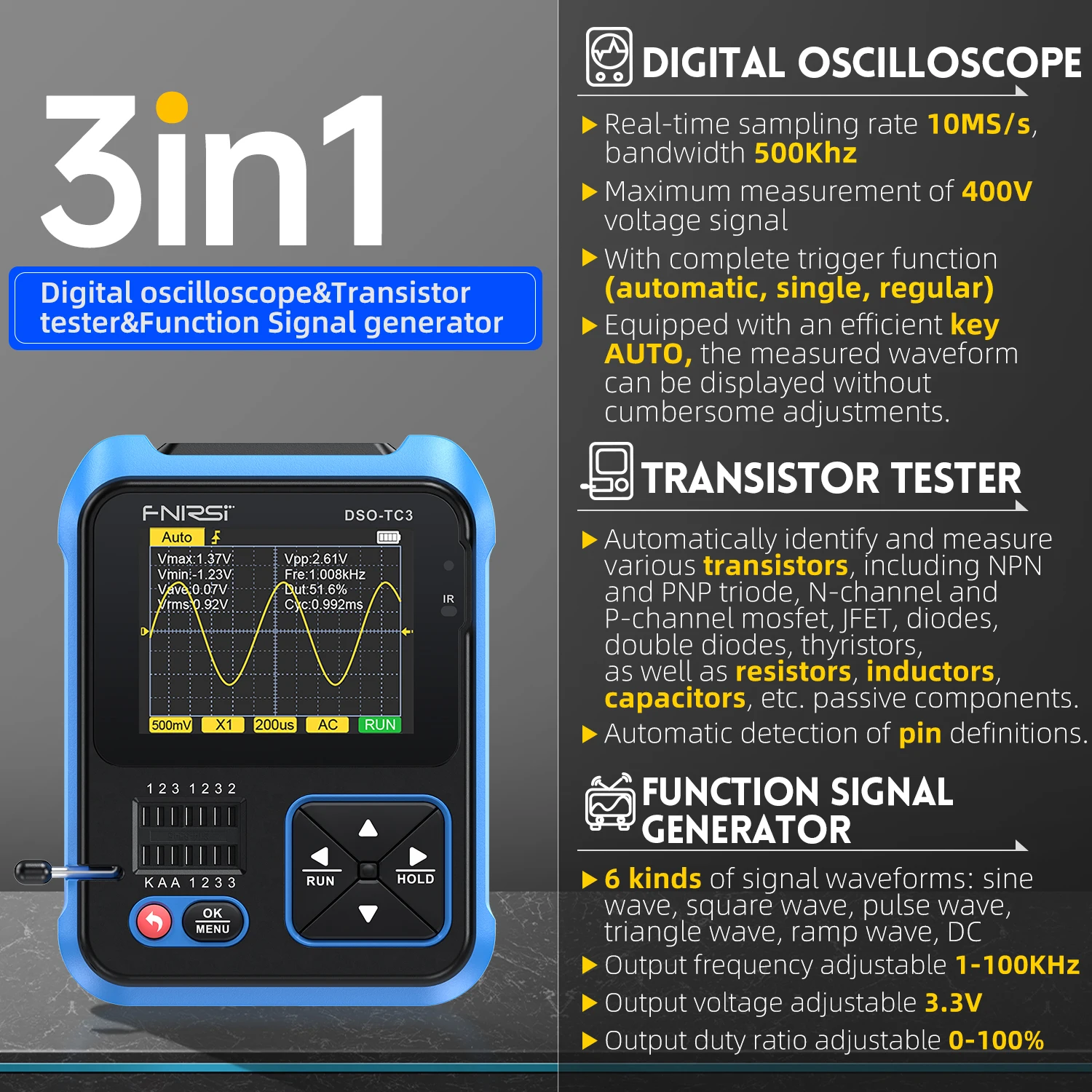

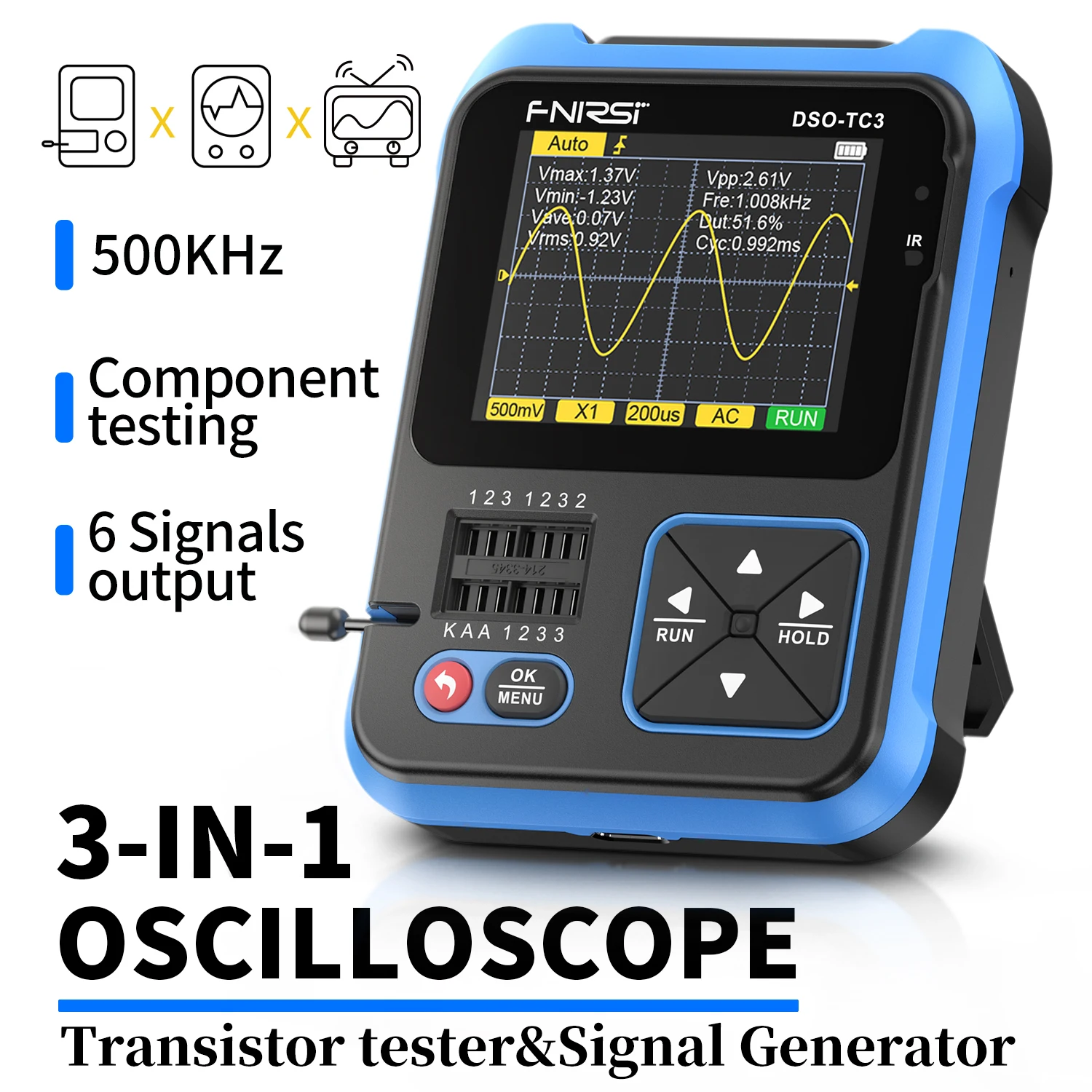

DSO-TC3 Digital Oscilloscope Transistor Tester 10MS/s Sampling Rate 500kHz Bandwidth Support Diode LCR Detect Signal Generator digital oscilloscope,transistor tester,signal generator

Product Features

The DSO-TC3 digital oscilloscope transistor tester has a 10MS/s sampling rate and 500kHz bandwidth. It can support diode, LCR detect, and signal generator functions.
With a 320*240 pixels display resolution and a 2.9-inch display size, it offers clear and accurate readings. It is powered by a rechargeable lithium battery.

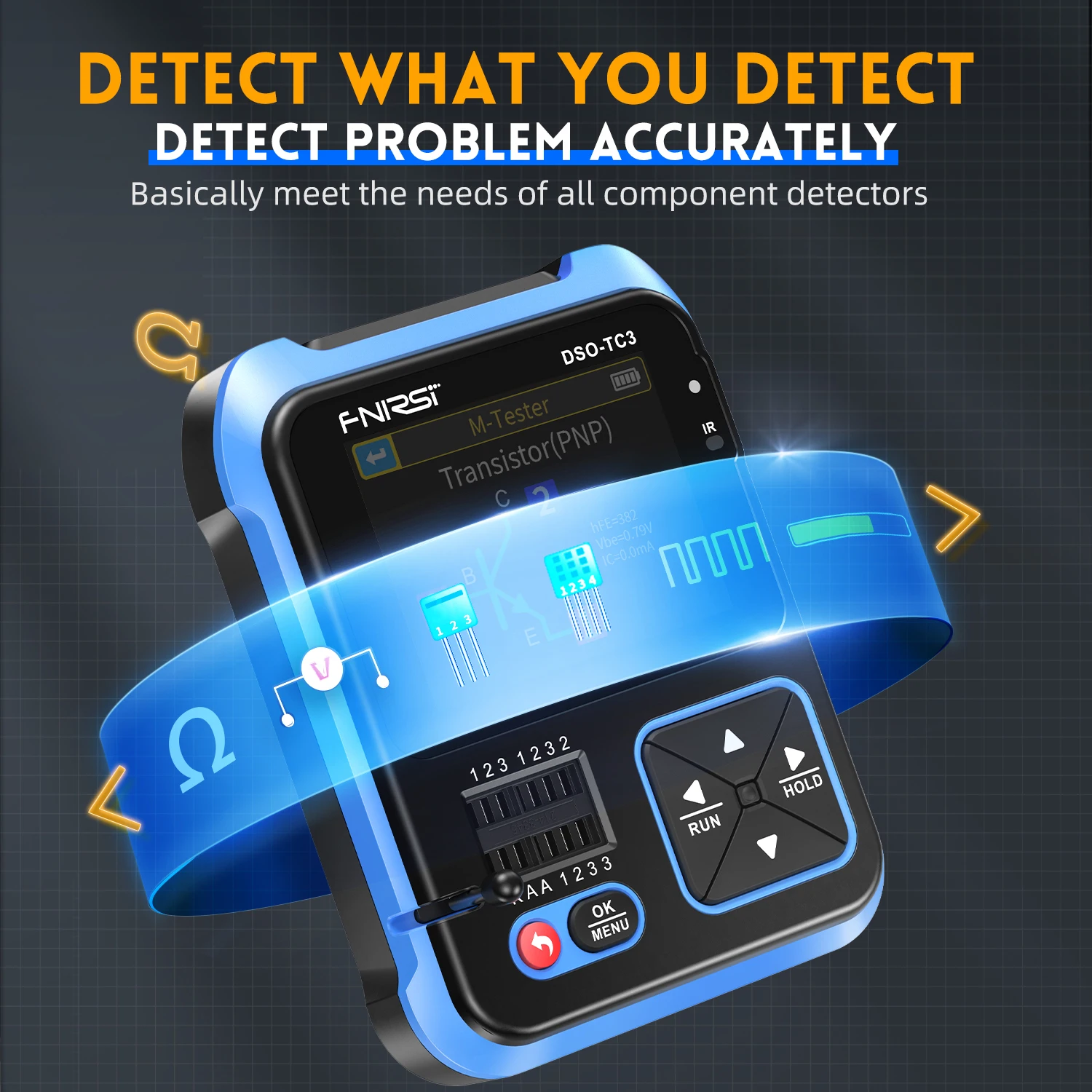

This tester can measure a wide range of components such as diodes, capacitors, resistors, and inductors. It has various trigger modes and types.
Originating from Mainland China, this digital oscilloscope is suitable for electrical DIY supplies. It can also decode infrared remote signals.
The DSO-TC3 offers automatic measurement and waveform freeze functions. It is a reliable tool for electrical testing and troubleshooting.

Specifications

Brand Name

FNIRSI

FNIRSI Model

DSO-TC3

DIY Supplies

ELECTRICAL

Display resolution

320*240 Pixels

IS Battery Demountable

Display Size

2.9 Inches & Under

Band Width

500-699MHz

Supply

Rechargeable lithium battery

Charging

Type-C 5V

Real-time sample rate

10MSa/s

Analog Bandwidth

500Khz

Input resistance

1MΩ

Coupling method

AC/DC

Test voltage range

400V

Vertical Sensitivity (x1)

10mV-10V

Horizontal time base range

1us-10s

Trigger mode

Auto / Normal / Single

Trigger type

Rising edge / Falling edge

Waveform Freeze

YES

Automatic measurement

YES

Diodes

Forward voltage drop <4.5V

Reglulated diode

0.01~4.5V

MOSFET

JFET IGBT MOSFET

SCR

Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor

25pF~100mF

Resistor

0.01Ω~50MΩ

Inductor

10uH~1000mH

Battery

0.1~4.5V

Input voltage

0~40V

DS18B20

0-85℃

DHT11

0-60℃/5-95%

Infrared remote decoding

NEC protocol infrared code

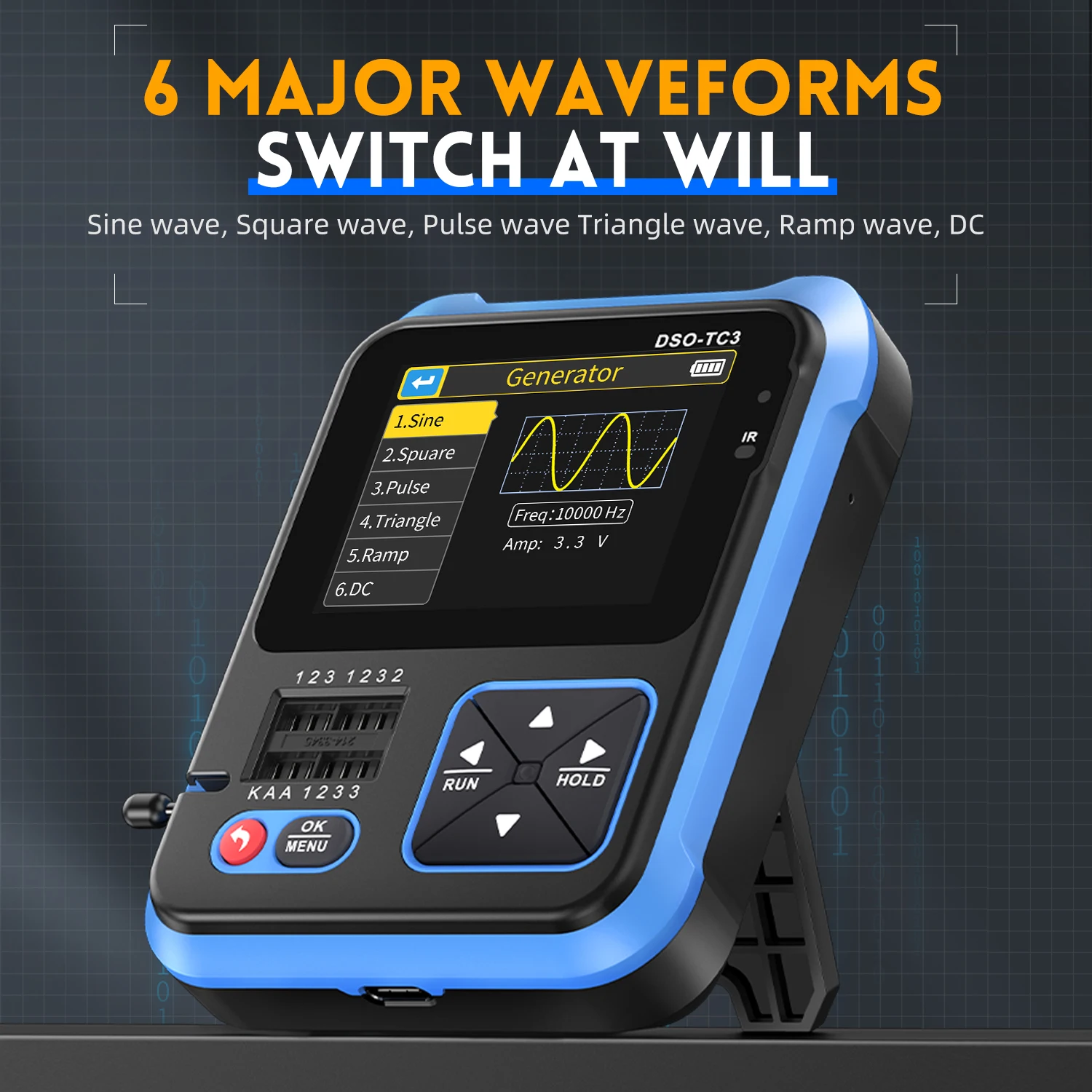

Triangle wave

1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%

Square wave

1-100KHz/3.3V/50%

Pulse wave

1-100KHz/3.3V/0-100%

Ramp

1-10KHz/0-3.3V/0-100%

0-3.3V
