Product Features

This portable digital oscilloscope transistor tester 3 in 1 multi-function multimeter offers a wide range of measurement functions, including voltage, resistance, capacitance, and more.
With a 2.4-inch TFT color screen, it provides clear and accurate readings.
It has an auto range operating mode, making it easy to use.
The rechargeable lithium battery ensures long-term use.
It is certified by CE, guaranteeing high quality and reliability.

Specifications

Brand Name

FNIRSI

FNIRSI Model

DSO-TC3

Battery Included

Yes

DC Voltage

10:1 probe: 800Vpp (±400V)

Operating Mode

Auto Range

Hign-concerned Chemical

None

DIY Supplies

Electrical

AC Voltage

10:1 probe: 800Vpp (±400V)

Display Type

Digital Display

AC Current

Measuring Resistance Range

0.01Ω - 50MΩ

DC Current

Measuring Capacitance Range

25pF - 100mF

Model Number

FNIRSI DSO-TC3

Is Smart Device

Measuring Inductance Range

10uH - 1000uH

Dimensions

10cm*8cm*3cm

Operating Temperature

0 - 40 ℃

Display screen

2.4 inch TFT color screen

Supply voltage

Rechargeable lithium battery

Charging specifications

Type-C 5V

Bracket specifications

All-in-one foldable stand

Real-time sample rate

10MSa/s

Analog Bandwidth

500Khz

Input resistance

1MΩ

Coupling method

AC/DC

Test voltage range

400V

Vertical Sensitivity (x1)

10mV-10V

Horizontal time base range

1us-10s

Trigger mode

Auto / Normal / Single

Trigger type

Rising edge / Falling edge

Waveform Freeze

Yes

Automatic measurement

Yes

Diodes

Forward voltage drop <4.5V

Reglulated diode

0.01~4.5V

MOSFET

JFET IGBT MOSFET

SCR

Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor

5pF~100mF

Resistor

0.01Ω~50MΩ

Inductor

10uH~1000uH

Battery

0.1~4.5V

Input voltage

0~40V

DS18B20

0-85℃

DHT11

0-60℃/5-95%

NEC protocol infrared code

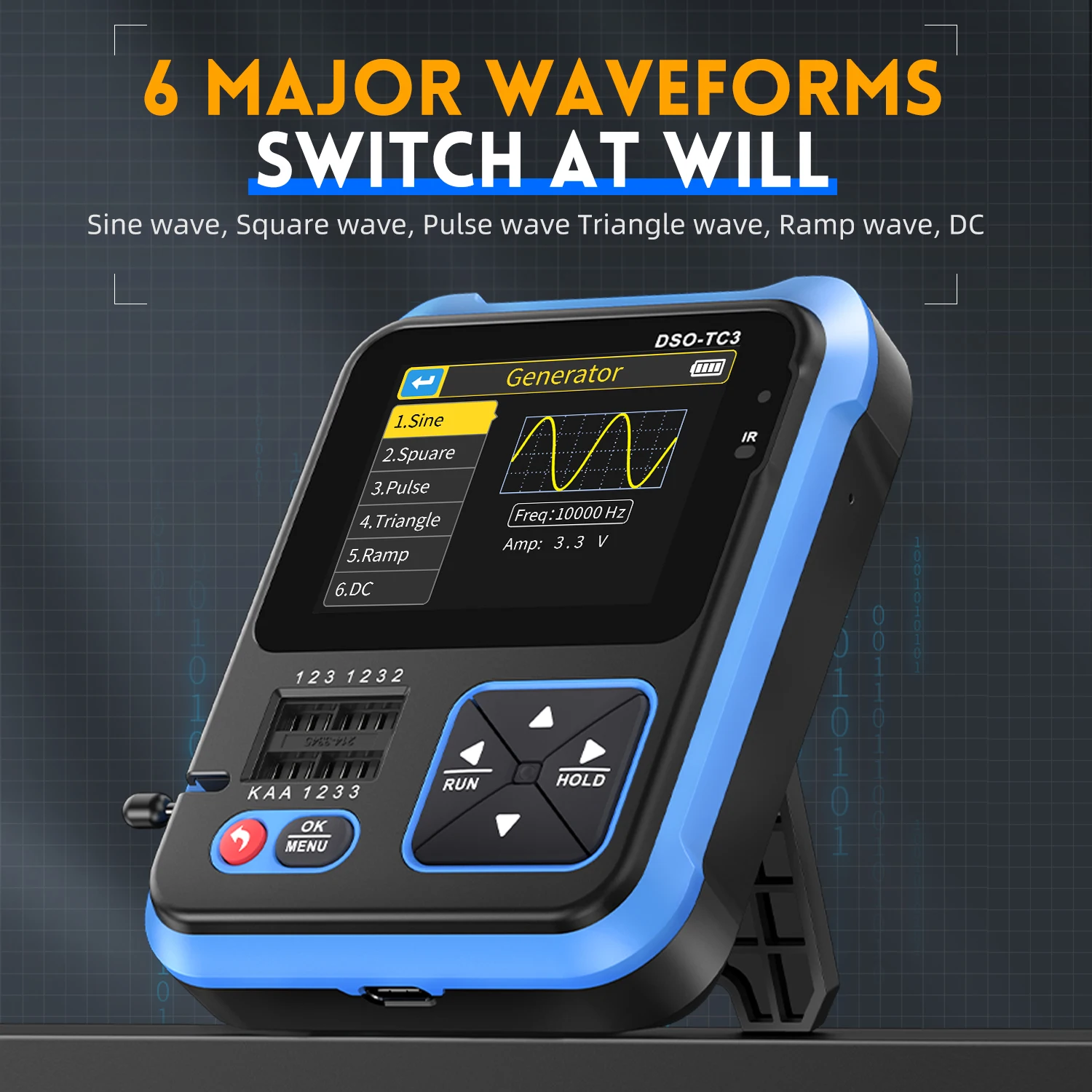

Triangle wave

1-10KHz/0-3.3V/50%

Square wave

1-100KHz/3.3V/50%

0-3.3V
