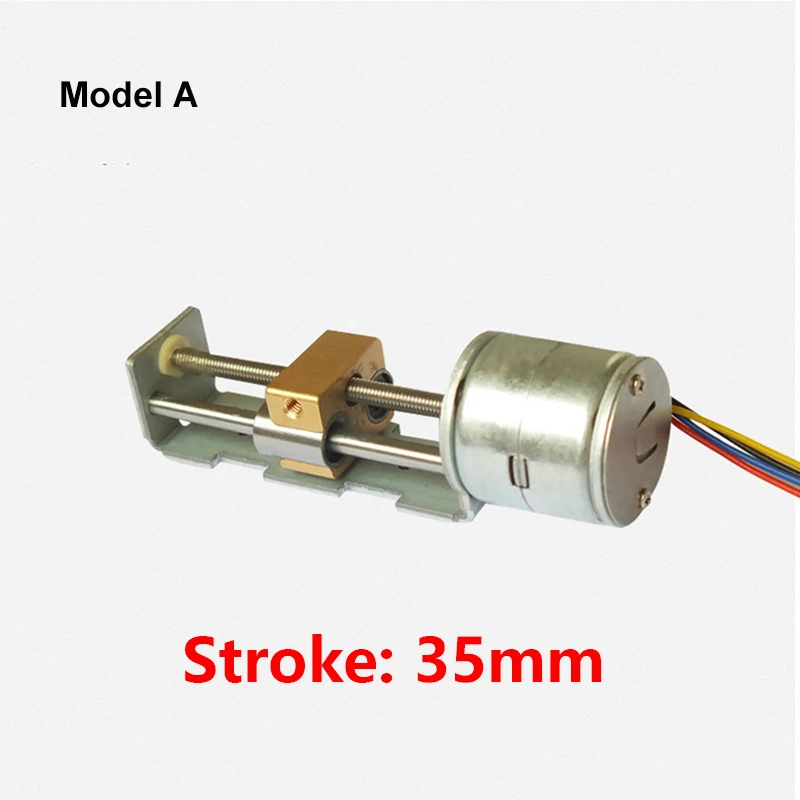

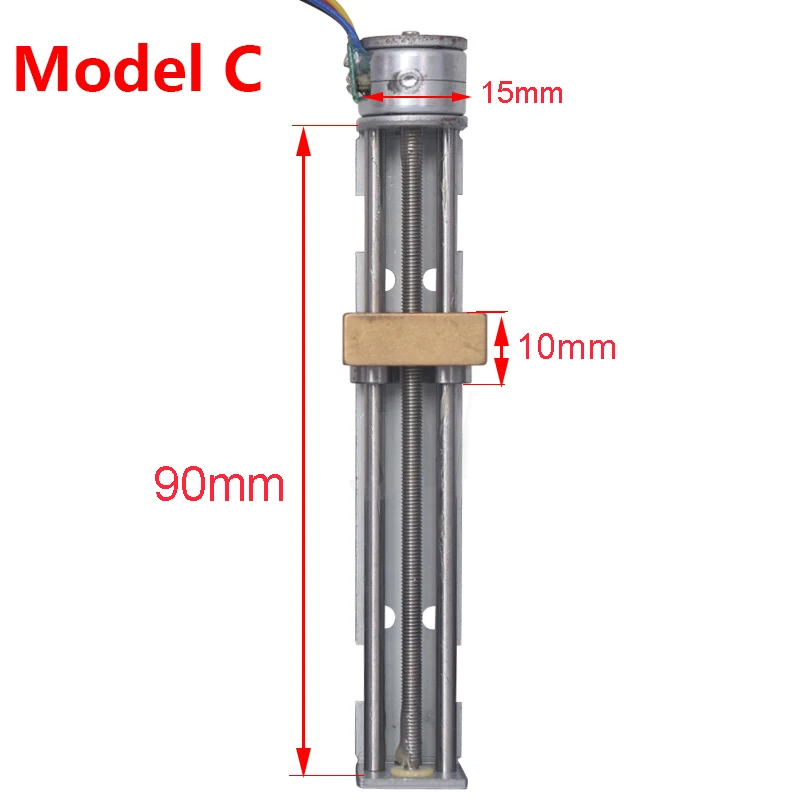

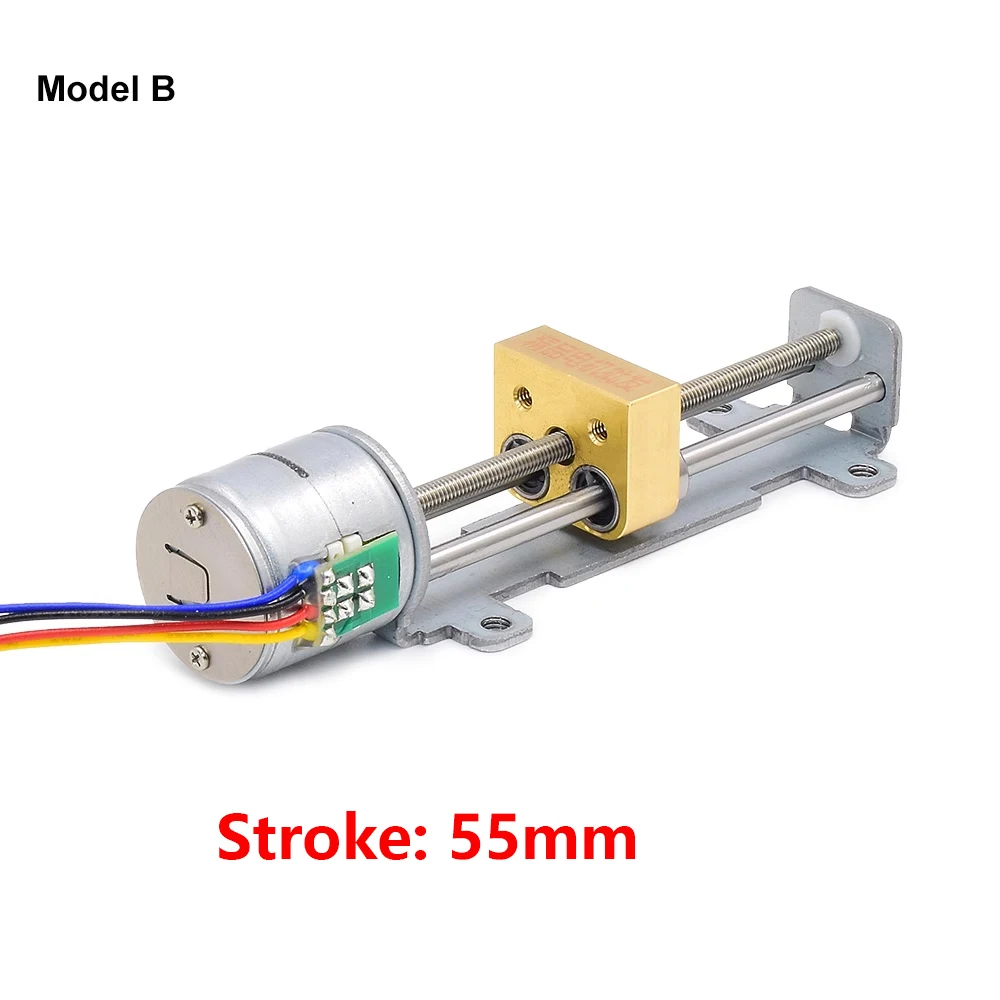

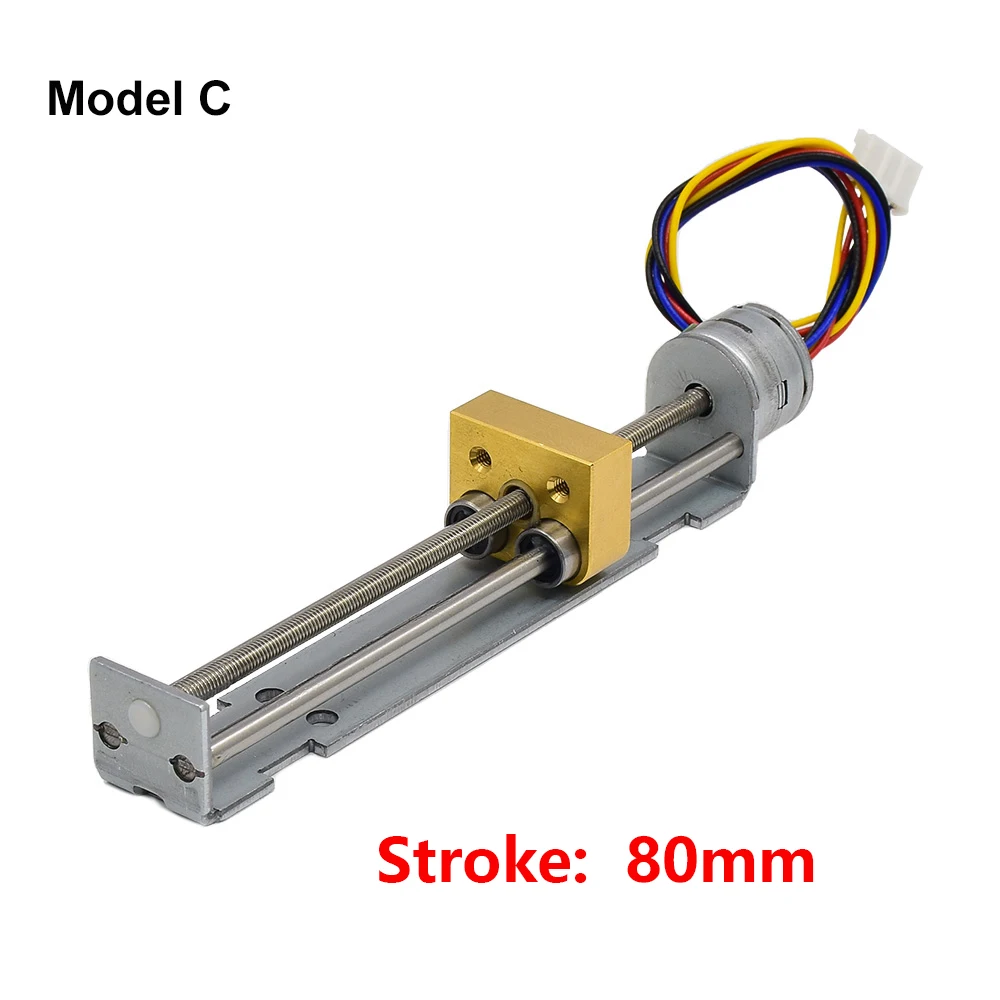

Stroke 35mm/55mm/80mm Linear Actuator Micro 15mm/20mm Two-phase Four-wire Stepper Motor With Copper Nut DIY XYZ 3D printer

Reviews | Questions & Answers
AU $65.56 ~ 85.01
Price includes 10% AU GST

Shaft Diameter :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This stroke 35mm/55mm/80mm linear actuator with a micro 15mm/20mm two-phase four-wire stepper motor and copper nut is perfect for DIY XYZ 3D printers.
  • With a step angle of 18 degrees and a full step angle of 18 degrees, this stepper motor provides precise and accurate movement, ensuring high-quality printing results.
  • Certified with RoHS, this linear actuator is safe and environmentally friendly, meeting international standards.
  • The 4-wire bipolar wiring configuration and a nominal rated input voltage of DC 5V make this actuator easy to connect and operate.
  • Whether you're a hobbyist or a professional, this linear actuator is a valuable component for your 3D printing projects.
Specifications
Step Angle(degrees)
18
Phase
2
Model Number
90mm
Type
Permanent Magnet
Condition
New
Model
Mini 15mm Stepper Motor
Resistance per Phase
15.5 ohms
Wiring Configuration
4-Wire Bipolar
Country/Region of Manufacture
China
Full Step Angle
18
Shaft Diameter
3mm
Nominal Rated Input Voltage
DC 5V
semi_Choice
yes
