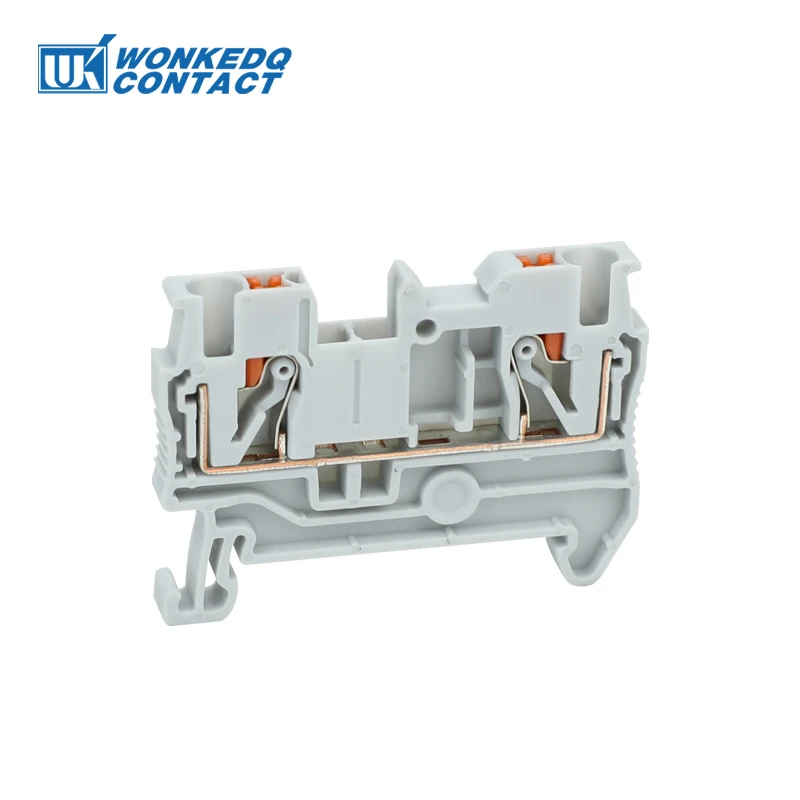

PT-2.5 Push-in Terminal Block DIN Rail Wire Connector 2.5mm Cable Screwless Spring Plug Electrical NS35 PT 2.5 din rail terminal block wire connectors

Product Features

This PT-2.5 push-in terminal block DIN rail wire connector is designed for 2.5mm cable, offering a screwless spring plug electrical connection with a rated voltage/current of 800V/31A.
Made from high-quality nylon PA66 material, this connector is durable and resistant to heat and chemicals, ensuring long-lasting performance.
The push-in connection method of this terminal block makes it easy to install and remove wires, saving time and effort.
Available in grey, blue, and other customizable colors, this connector can be tailored to your specific needs.
With its NS 35/7.5 mounting type and cross section of 0.2-4mm²/0.2-2.5mm², this terminal block is a versatile and reliable solution for electrical wiring.

Specifications

Brand Name

WONKEDQ

Type

Push-in Terminal

Model Number

PT2.5 PT-2.5

Color

Grey, Blue, other color can be customized

Connection method

Push-in connection

Rated Voltage/Current

800V/31A

Mounting Type

NS 35/7.5

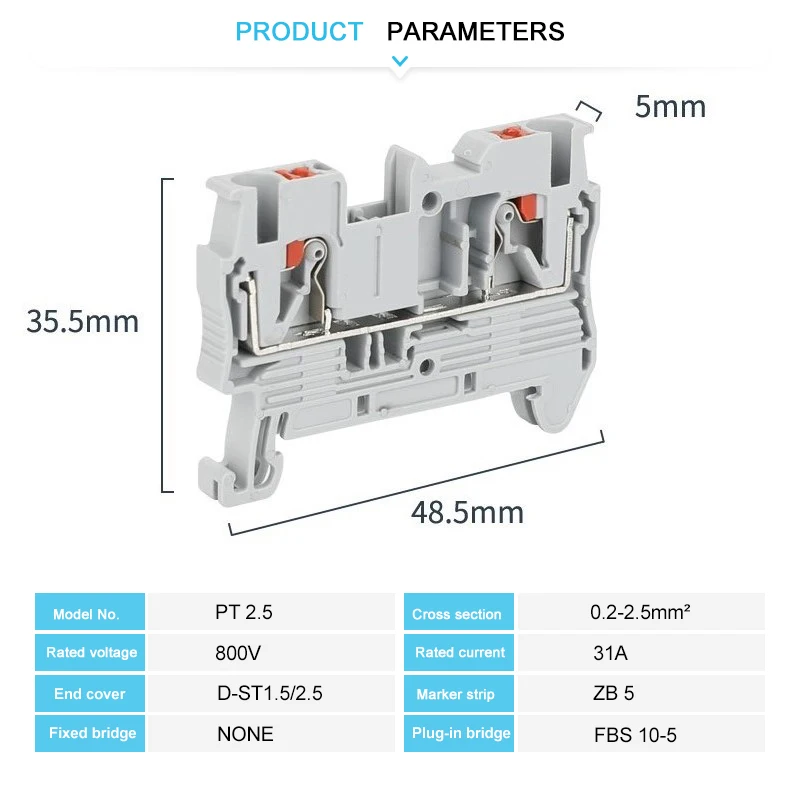

Length/Wide/Height (mm)

L48.5/H35.5/W5.2 mm

Material

Nylon PA66

Cross section

0.2-4mm²/0.2-2.5mm²

Cross section AWG

24-12 AWG

Conductor cross section, flexible [AWG]

26-14 AWG
